ATV Log Trailer with Crane
ATV Log Trailer with Crane, ATV Timber Trailer/Wood Trailer/Log Trailer with Crane,Matching tractor or ATV
online service

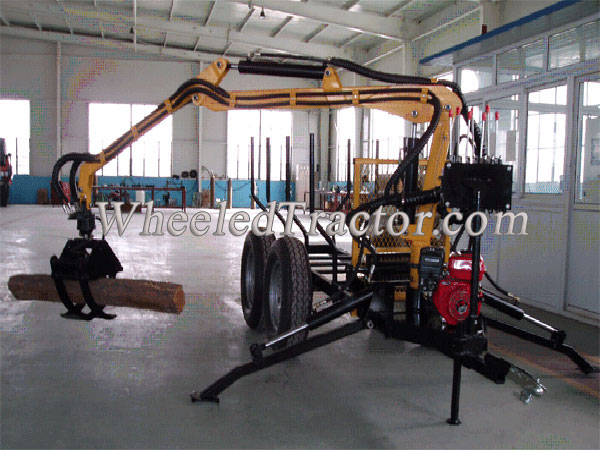

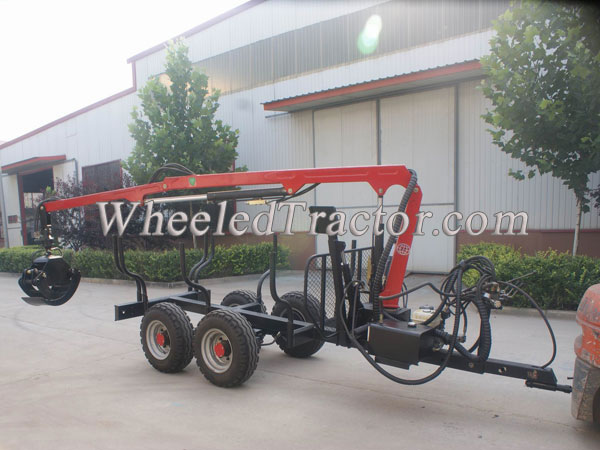

ATV Log Trailer with crane
| Main Technical Data: | ||||
|
log trailer with crane for tractor |
1t | 3t | 5t | 8t |
| model | UTL-1002 | UTL-UT3004 | UTL-5004 | UTL-8006 |
| matching tractor or atv | 10-20hp | 20-40hp | 50-60hp | 70-80hp |
| net weight | 600kg | 1200kg | 1500kg | 1800kg |
| packing measurement | 2700*2000*700mm | 4200*2200*800mm | 4200*2200*800mm | 5000*2200*800mm |
| trailer | ||||
| modle | TR10 | TR30 | TR50 | TR80 |
| load capacity | 1000kg | 3000kg | 5000kg | 8000kg |
| load area | 0.5m² | 1m² | 1.6m² | 2.3m² |
| total length | 3.6m | 5.1m | 5.1m | 5.7m |
| traler loading lenth | 2.0m | 3.1m | 3.1m | 3.7m |
| total width | 1.3m | 1.5m | 1.8m | 2.2m |
| crane | ||||
| modle | CR02 | CR04 | CR04 | CR06 |
| gabbing area | 0.18m2 | 0.28m2 | 0.28m2 | 0.28m2 |
|
minimum diameter of grab |
75mm | 75mm | 75mm | 75mm |
| max. reach | 3.5m | 4.3m | 4.3m | 6m |
| Lifting weight (kg) / Arm length,m(without grabble and rotator) | 400/2 | 1280/2 | 1280/2 | |
| 300/3 | 760/3 | 760/3 | ||
| 200/3.5 | 500/4 | 500/4 | ||
| 450/4.3 | 340/5, 240/6 | |||
| slewing angle | 400° | 400° | 400° | 400° |
