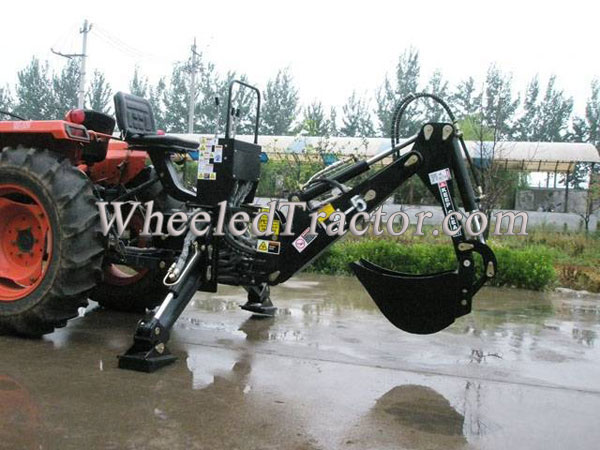

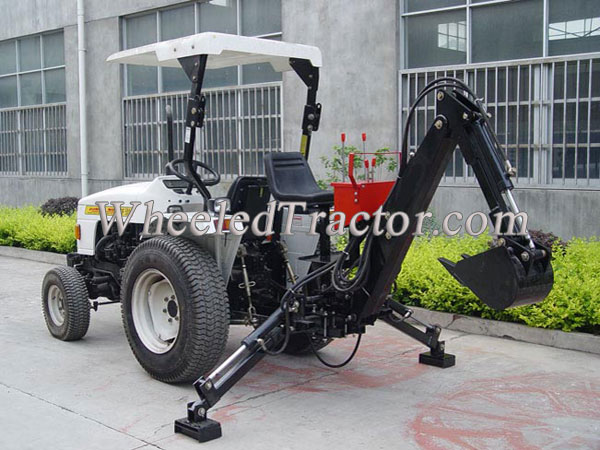

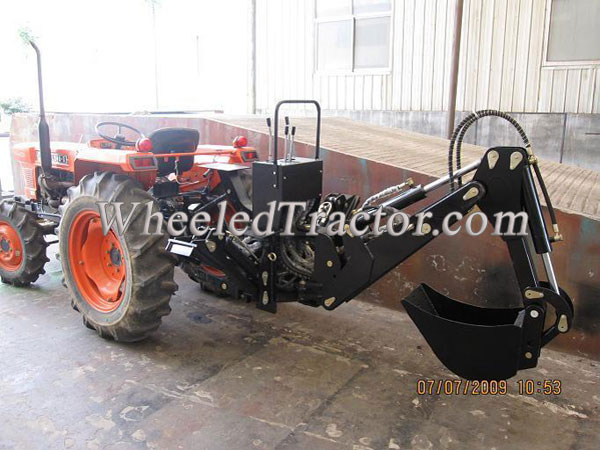

LW-5 Backhoe
LW-5-backhoe,CE Tractor towable backhoe LW-05,LW-06 LW-07 LW-08 ,LW-12) are mainly used for ditching in farms and grazing lands, digging pool cleaning waterways as well as assistant excavating work in construction and building roads
online service
Technical Parameters:
| Backhoe Model | LW-5 | |
| Matching Tractor | hp | 15~25 |
| Max.Digging Depth | mm | 1650 |
| Max.Unloading Height | mm | 1530 |
| Max.Digging Height | mm | 2600 |
| Working Radius | mm | 2300 |
| Ground Clearance | mm | 450 |
| Side Shift Distance | mm | 0 |
| Min.Transporting Width | mm | 1150 |
| Max.Width of Supporting Legs | mm | 2100 |
| Bucket Width | in. | 14 |
| Bucket Capacity | m3 | 0.03 |
| Weight | kg | 360 |
| PTO Hydraulic System | 6/8/21 Splines(Option) | |
| Thumb Grab | Option | |
