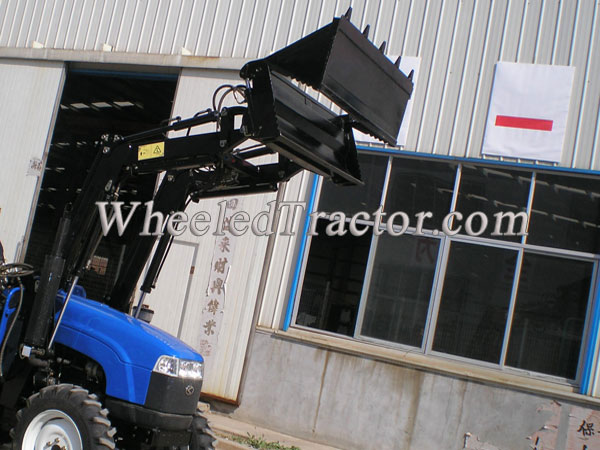

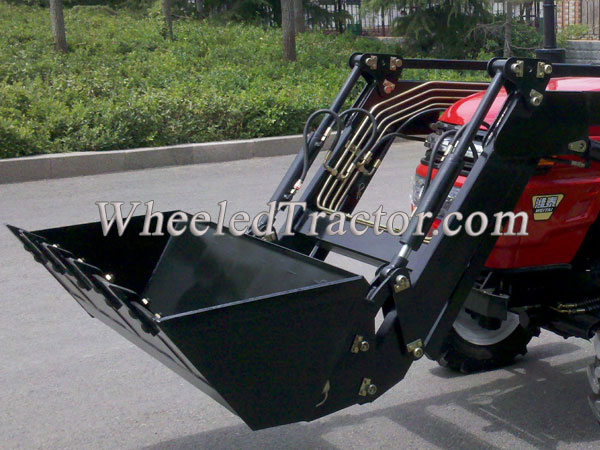

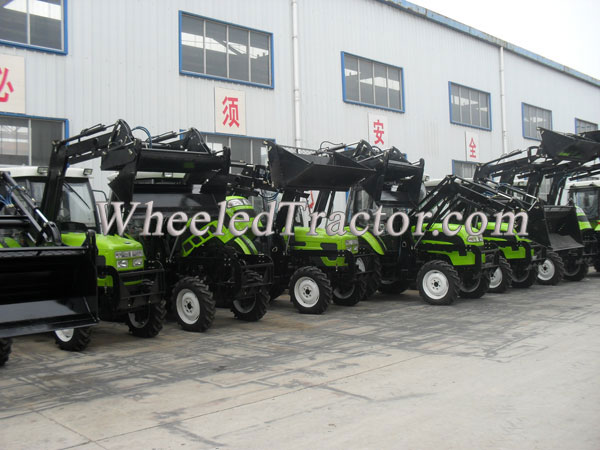

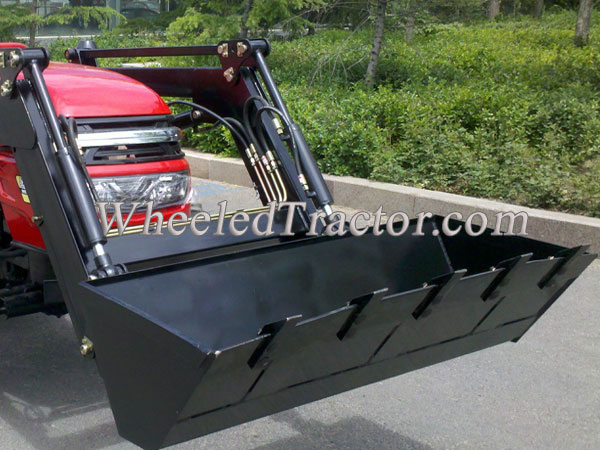

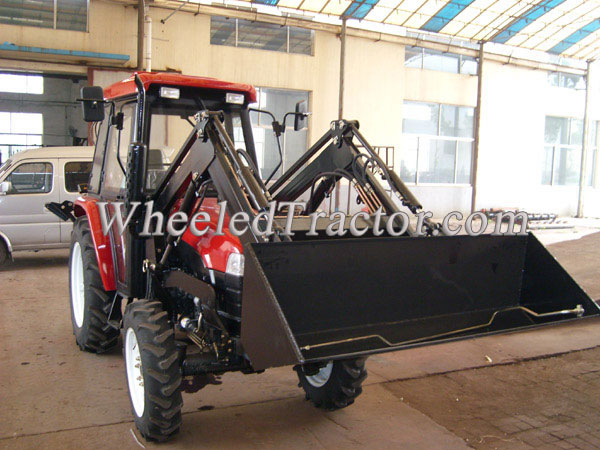

TZ06D Tractor Loader
TZ06D Tractor Loader,CE Farm Tractor Backhoe And Front End Loader,Garden: grab grass/bale, snow removal,Forest: timber loading
online service
Our tracotr front end loaders are high quality, reasonably priced. These are great tractor front end loaders.
Loader Model | TZ03D | TZ04D | TZ06D | TZ08D | TZ10D | TZ12D | ||
Matching Tractor | hp | 20-40 | 30-55 | 45-60 | 55-75 | 70-100 | 90-140 | |
Max. Lifting at Implement Pivot Pin | H | mm | 2550 | 2740 | 3010 | 3400 | 3710 | 3970 |
Dumping Height | A | mm | 1840 | 2100 | 2370 | 2480 | 2720 | 3000 |
Overloading Height | L | mm | 2370 | 2560 | 2830 | 3220 | 3490 | 3770 |
Dumping Distance | W | mm | 500 | 600 | 640 | 690 | 740 | 900 |
Ground Clearance at Arm Pivot Pin | B | mm | 1200 | 1360 | 1500 | 1630 | 1780 | 1930 |
Max.Tip in Angle | X | degree* | 48 | 48 | 48 | 54 | 54 | 54 |
Tip out Angle | Z | degree* | 58 | 58 | 58 | 58 | 58 | 58 |
Crowd angle at lowered lift arm | V | degree* | 135 | 135 | 135 | 135 | 145 | 145 |
Digging Depth | S | mm | 100 | 100 | 120 | 140 | 180 | 200 |
Lifting Force at Implement Pivot Pin | Q1 | Kg | 2224 | 2144 | 2150 | 1997 | 2308 | 2403 |
Q2 | Kg | 1474 | 1321 | 1286 | 1187 | 1452 | 1690 | |
Bucket Modle(Standard) | 04DP125 | 04DP140 | 06DP150 | 08DP160 | 08DP170 | 12DP200 | ||
Bucket Width | mm | 1250 | 1400 | 1500 | 1600 | 1700 | 2000 | |
Bucket Capacity | m 3 | 0.18 | 0.21 | 0.35 | 0.4 | 0.44 | 0.7 | |
Rated Lifting Capacity | Kg | 300 | 400 | 600 | 800 | 1000 | 1200 |
