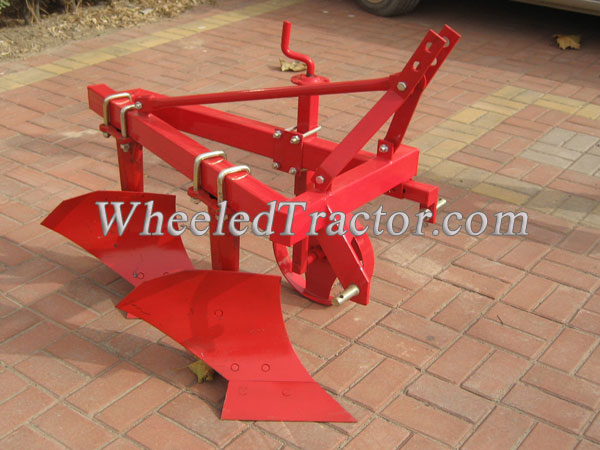

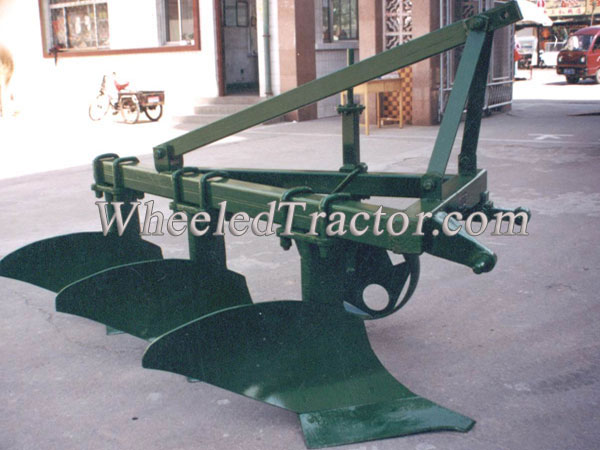

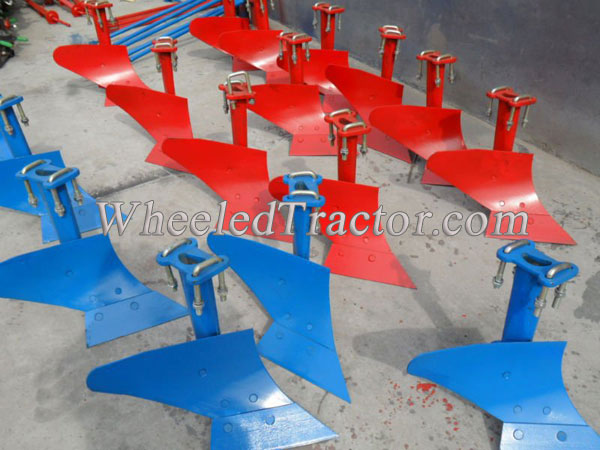

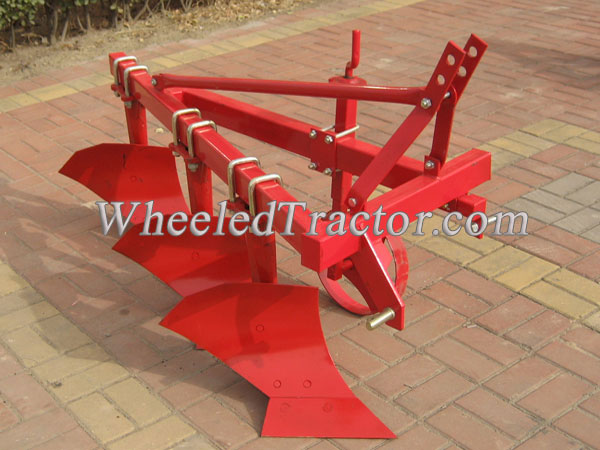

Mould Board Plough / Plow
Mould Board Plough / Plow, the most important plough for primary tillage in canal irrigated or heavy rain areas The most important plough for primary tillage in canal irrigated or heavy rain areas where too much weeds grow.
online service

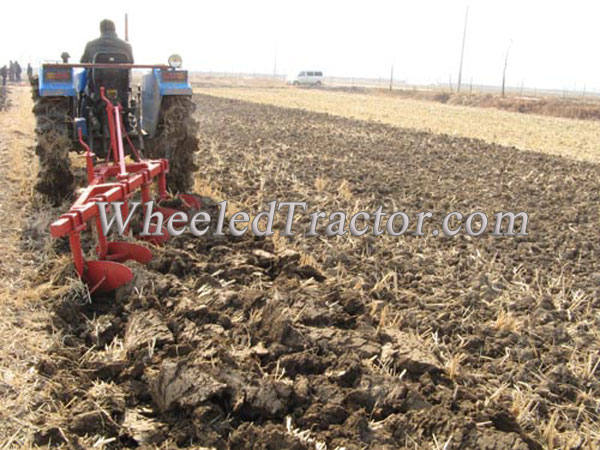

Mould board plough, the most important plough for primary tillage in canal irrigated or heavy rain areas The most important plough for primary tillage in canal irrigated or heavy rain areas where too much weeds grow. The objective for ploughing with a mould board is to completely invert and pulverize the soil, up-root all weeds, trash and crop residues and bury them under soil. The shape of mould board is designed to cut down the soil and invert it to right side completely burying the undesired growth which is subsequently turned into manure after decomposition.
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
| Modle | unit | 1L-220 | 1L-320 | 1L-420 | 1L-520 | 1L-225 | 1L-325 | 1L-425 | 1L-525 |
| Number of furrows | 2 | 3 | 4 | 5 | 2 | 3 | 4 | 5 | |
| Working width | m | 0.4 | 0.6 | 0.8 | 1.0 | 0.5 | 0.75 | 1.0 | 1.25 |
| Working depth | mm | 200~250 | 200~250 | ||||||
| weight | kg | 80 | 115 | 145 | 180 | 125 | 228 | 330 | 435 |
| Matched power | hp | 12 | 25~30 | 30 | 45~55 | 25 | 35 | 50 | 65 |
| Linkage | (Standard three-point mounted) | ||||||||
