1.5 Ton Wheel Loader
1.5-ton-wheel-loader,V snow plow, folding snow plough, snow removal bucket, snow blower, sand spreading bucket, drum grab, barrel grapple, bucket broom, pick-up broom, street sweeper, angle broom, diagonal broom, and hydraulic flail mower, etc
online service
Features of construction wheel loader heavy equipment
- Adopting hydraulic-mechanical transmission;
- Adopting central articulated frame and load-sensing hydraulic steering gear;
- Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle;

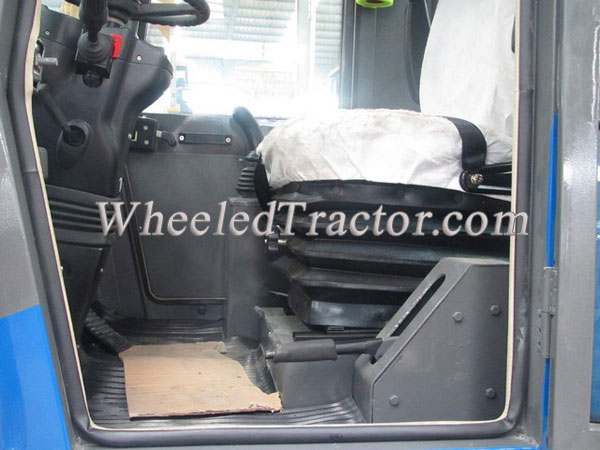

- Fully enclosed cab with adjustable and suspension seat;
- Using 12-16.5 ultra-wide tyres to increase the stability of this mini whole machine and the service life of tyre;
- Brake system adopts single-line, hydraulic, expansion-shoe brake on 4 Wheels;
- This small wheel loader adopts ZL265 integrated torque converter, the whole machine is fully hydraulic transmission, and the model of axle is 50 axle;

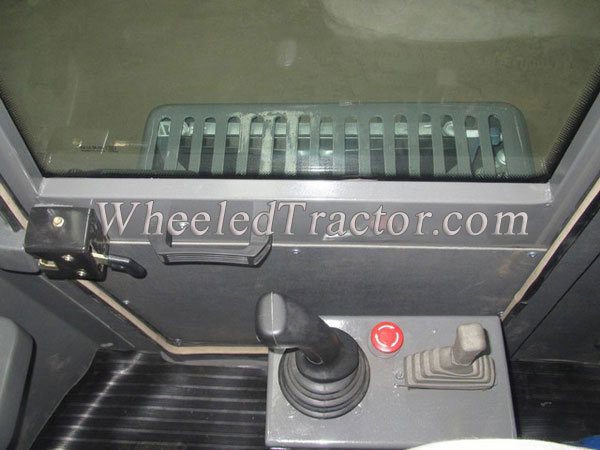

- This compact wheel loader can be optionally equipped with pilot control system to make it easy to operate and increase the hydraulic performance of the whole machine;
- Power system adopts XINCHAI A498BT1 (EURO III) direct injection, environmentally friendly, 4-cylinder engine to make this compact wheel loader have strong power and high acceleration, which greatly increase its high working efficiency;
- This compact wheel loader can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this compact wheel loader to change quickly among multiple accessories, such as hay grapple, grass grab, log grab, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow blade, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
| Model:ZL15F construction wheel loader heavy equipment | ||
| Item | Parameters | |
| Performance | 1 .Rated Load | 1500 kg |
| 2. Total Weight | 3400 kg | |
| 3. Rated Bucket Capacity | 0.7 m3 | |
| 4. Max. Tractive Force | 30 KN | |
| 5. Max. Breakout Force | ≥ 30 KN | |
| 6. Max. Gradeability | 38° | |
| 7. Dumping Height | 2800 mm | |
| 8. Dumping Reach | 1000 mm | |
| 9. Raising Time | ≤ 5.0s | |
| 10. Total Cycle Time | ≤ 9.5 s | |
| 11. Overall Dimensions (L x W x H) | 5060*1690*2630 mm | |
| 12. Min. Turning Radius | 3200 mm | |
| Engine | 13. Model | XINCHAI A498BT1 (EURO III) |
| 14. Type | Four-cylinder, Inline, Water-cooled, Four-stroke Engine | |
| 15. Rated Power | 36.8 kw | |
| 16. Rated Speed | 2400 rpm | |
| 17. Min. Fuel Consumption Ratio | ≤ 230 g/kw·h | |
| Transmission | 18. Hydraulic Torque Converter | ZL265 Integrated Torque Converter |
| 19. Gear Shift | 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed | |
| 20. Max. Speed | 25 km/h | |
| Drive Axle | 21. Model of Axle | 50 Axle |
| 22. Wheel Tread | 1430 mm | |
| 23. Wheel Base | 2170 mm | |
| Drive | 24. Mode | 4-way Drive |
| Hydraulic System | 25. System Working Pressure | 16 Pa |
| 26. Fuel Tank Capacity | 86 L | |
| Brake System | 27. Service Brake | Single-line, Hydraulic, Expansion-shoe Brake on 4 Wheels |
| 28. Parking Brake | Hand Flexible Shaft Controlled Disc Brake | |
| Tyre | 29. Type Specification | 12-16.5 |
| 30. Front Tyre Pressure | 0.40 Mpa | |
| 31. Rear Tyre Pressure | 0.35 Mpa | |
