130HP Tractor
130HP Tractor,Clutch: 13 inch dual clutch, high transmission capacity, easy to operate.Gearbox has:4*(3+1) combined type collar shift gears. 12 forward shifts and 4 reverse shifts.
online service
1. Features of large farm tractor -1304
- YTO engine: features strong power, high torque, low fuel consumption, and high reliability.
- Clutch: 13 inch dual clutch, high transmission capacity, easy to operate.
- Gearbox has:4*(3+1) combined type collar shift gears. 12 forward shifts and 4 reverse shifts.
- Independent double speed PTO shaft has so many speed of rotation to choose. For example, 540//1000. It can meet customer’s different requirements when using tractor in the farm.
- Underneath abnormal fuel tank with large volume, so it can ensure long-time working.

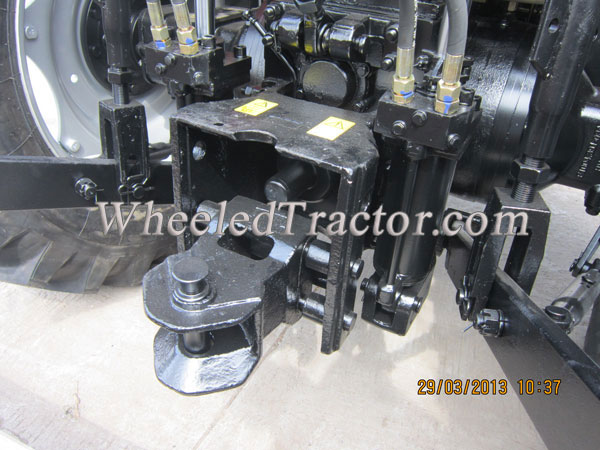

- Reinforced 3 point-suspension postposition is stronger, using reliable and long life. The bottom tie rod can float.

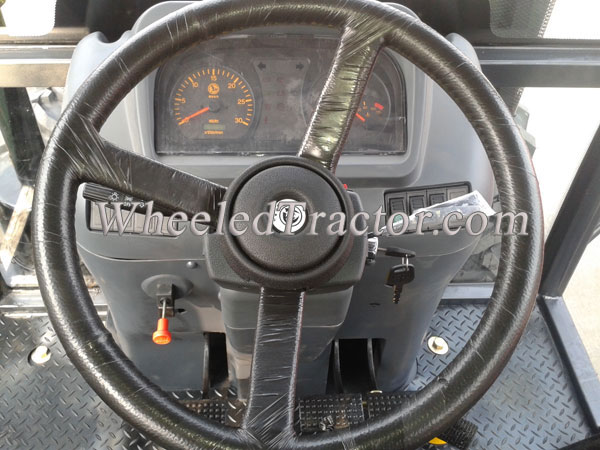

- Comfortable fully-sealed driver’s cab
- Use 4 planetary wheeled differential, transmission stably and reliably.
- 1 or 2 pair hydraulic outputs can be chose. And air-brake can be chose.
| Model | QLN-1304 |
| Drive type | 4x4 |
| Engine | |
| Engine model | YTO LR6M5, 6 cylinder, natural breath |
| Capacity of fuel tank(L) | 152 |
| Rated speed (r/min) | 2300 |
| Engine power | 95.5 |
| Lowest fuel consumption (g/kw·h) | ≤242 |
| Transmission | |
| Clutch | Dual clutch, independent, dry type, single disk |
| PTO Speed(rpm) | 540/1000 |
| Gearshift | 12F+4R collar gear-shift |
| Hydraulic system | |
| Hydraulic output valve | 2-Way(optional) |
| Three point linkage | |
| Category of 3-point link | Category II |
| Lifting capacity(at point of 610mm)KN 610mm | >27 |
| Technical parameter | |
| Dimension LxWxH mm | 5050×2370×3000 |
| Wheel base(mm) | 2688 |
| Track base(mm) front wheel | 1822-2153(1910) mm |
| Track base(mm) rear wheel | 1622-2262(1662) mm |
| The smallest clearance(mm) | 470 |
| Front tyre | 14.9-26 |
| Rear tyre | 18.4-38 |
