BH Backhoe

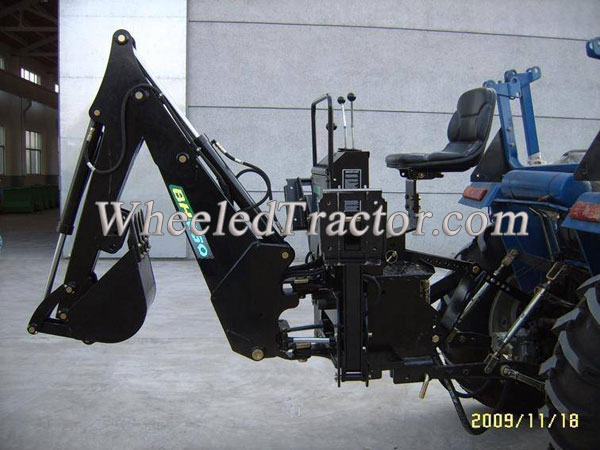

BH backhoe. 3 Point Hitch Backhoe With 180 Degree Swing Arc,Outstanding Swedish Control Valve~ JIC Standard Hydraulic Fitting~ Dual swing Cylinders for 180 degree~ PTO pump and gear box.
online service
Outstanding Swedish Control Valve~ JIC Standard Hydraulic Fitting~ Dual swing Cylinders for 180 degree~ PTO pump and gear box.
-
All heavy duty the console and operator's platform conversion between field/street optional duty buckets feature wear bars and are designed with comfort and operation.
Heavy duty teeth for extended life. -
BH6600 BACKHOE for 18 to 35 HP Tractors
Ideal for nurseries and small farms. The BH6600 Backhoe excels at a variety of light duty digging applications .
The BH6600 Backhoe fits 18-35 HP tractors and attaches either with a 3 point Hitch mount or Subframe to Popular tractor manufactured front end loaders. -
BH7600 BACKHOE for 25 to 45 HP Tractors
Outstanding valve with substantially more power characterizes the BH7600 Backhoe.
Rugged appearance and greatly improved operator comfort and convenience set this new backhoe apart from the competition. - 3 Point fits most tractors with a Category 1 Hitch.
- Frame Mount Currently are available.
- Model BH6600 has a 6.6 ft dig depth.
- Model BH7600 has a 7.6 ft dig depth.
- Both model's can be either 3 point or Frame mount.
- Optionable Bucket sizes 8", 12", 14", 16" are all interchangeable.
- Options Reservoir Tank with Filter.
- PTO Pump and gear box.
- Color's are Black or Red, paint is powder coated.
- Main Specification:
| SERIES | BH6600 | BH7600 |
| Maximum Digging Depth | 7'0" | 8'0" |
| A. Digging Depth (two foot flat bottom) | 6'6" | 7'6" |
| B. Swing Arc | 180 ° | 180 ° |
| C. Loading Height (bucket at 60 ° ) | 5'0" | 5'10" |
| D. Reach from Center Line of Swing Pivot | 8'6" | 9'6" |
| E. Transport Height (maximum) | 4'11" | 5'9" |
| F. Bucket Rotation | 180 ° | 180 ° |
| G. Loading Reach (bucket at 60 ° ) | 3'2" | 3'7" |
| H. Transport Overhang | 3'5" | 3'6" |
| I. Undercut | 2'4" | 2'6" |
| J. Stabilizer Spread, down position | 6'6" | 7'5" |
| K. Stabilizer Spread, up position | 3'11" | 5'1" |
| Bucket Cylinder Digging Force | 2450 lbs | 2840 lbs |
| Dipperstick Cylinder Digging Force | 1250 lbs | 2005 lbs |
| Shipping Weight (less bucket) | 654 lbs | 875 lbs |
| Hydraulic Volume Requirements | 4 to 5 GPM | 5 to 6 GPM |
| Hydraulic Pressure Requirements | 2250 psi | 2250 psi |
| Recommended Tractor HP Requirements | 18 - 35 HP | 25 - 45 HP |
|
Specifications May Very Depending on Tractor Model and Subject to Change Without Notification. Tractor Must Be Equipped with ROPS and Seat belt That will Provide Better Safety. |
||
