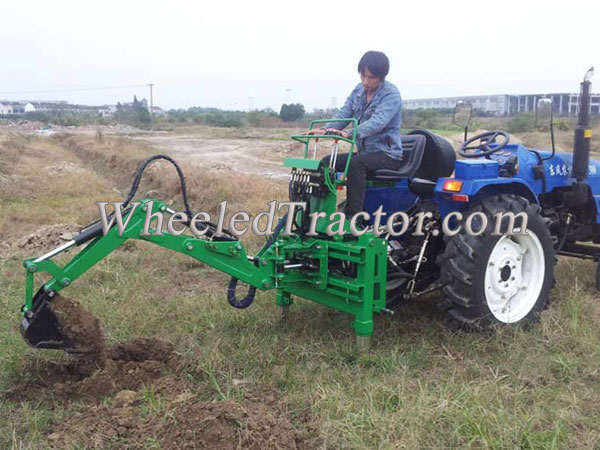

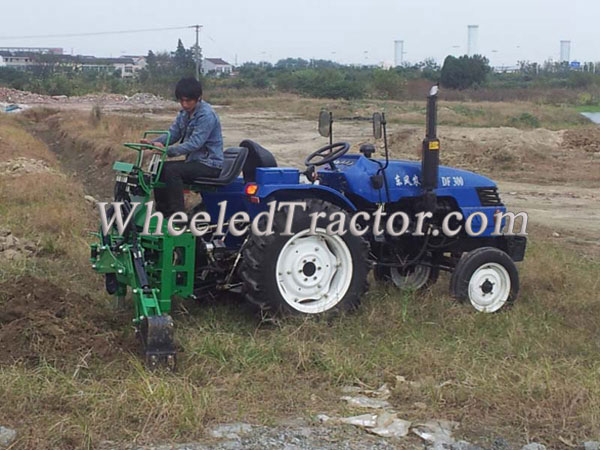

BH Side-Shift Backhoe

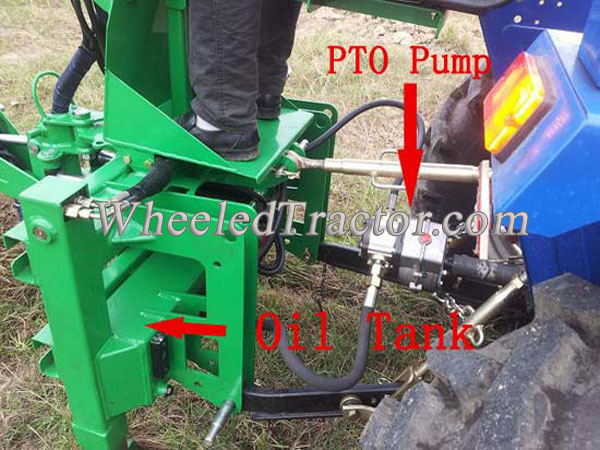

Balar Machinery.BHM Backhoe1.The backhoe includes PTO pump,gearbox Ripper; 7",9",12",14",16",20",24",36",buckets
online service
Pre-sale service
24hours online to ensure quick response to customers' inquiry or online message
guide customers to choose the best suitable machine model, offer detailed specification and competitive prices
Contract execution
Machine production will be arranged strictly according to the contract
Machine photos will be sent to you for reference and inspection during production
Machines will be strictly inspected and tested before delivery
Strong enough packages to prevent possible damages during shipping
Send customs clearance documents by DHL
Keep customers to be informed of vessel location while shipping and get them prepared for customs clearance work
After-sale service
12 months warranty except for wear parts
broken spare parts (except for wear parts) will be sent for free due to quality problems
In time response to customers technical problems
New products update for customers' reference
| Model of Backhoe | HW-03 | HW-05 | HW-06 | HW-12 | |
| Matching Tractor | Kw (hp) | 14.7~22.1 (20~30) | 22.1~36.8 (30~50) | 36.8~58.8 (50~80) | 88.2~102.9 (120~140) |
| Max. Digging Depth | mm | 1700 | 2100 | 2600 | 3600 |
| Max. Unloading Height | mm | 1700 | 2300 | 2500 | 3200 |
| Max. Digging Height | mm | 2700 | 3300 | 3400 | 4500 |
| Max. Digging Depth Flat Bottom | mm | 1600 | 2000 | 2500 | 3500 |
| Max. Swing Angle | (° ) | 180° | 180° | 180° | 180° |
| Bucket Rotation Angle | (° ) | 160° | 160° | 160° | 174° |
| Bucket Capacity | m3 | 0.03 | 0.048 | 0.06 | 0.2 |
| Weight | kg | 450 | 500 | 540 | 1050 |
