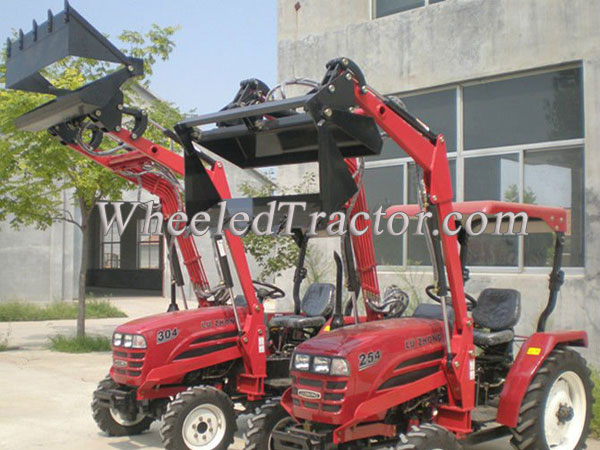

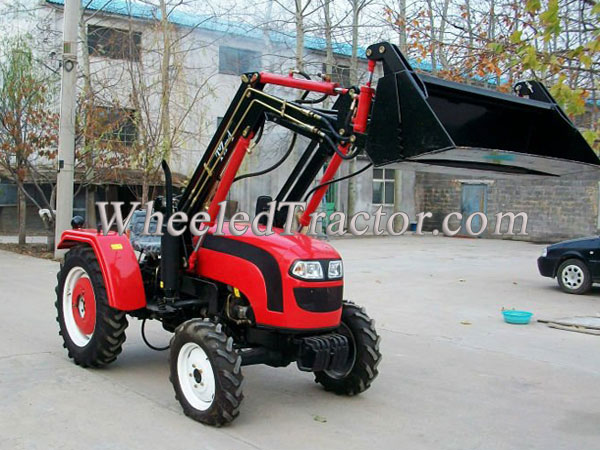

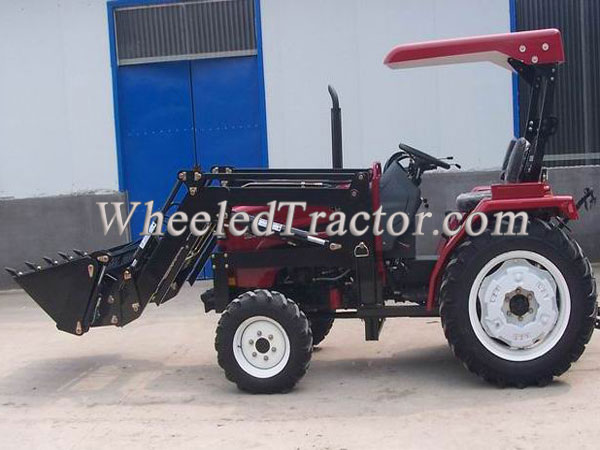

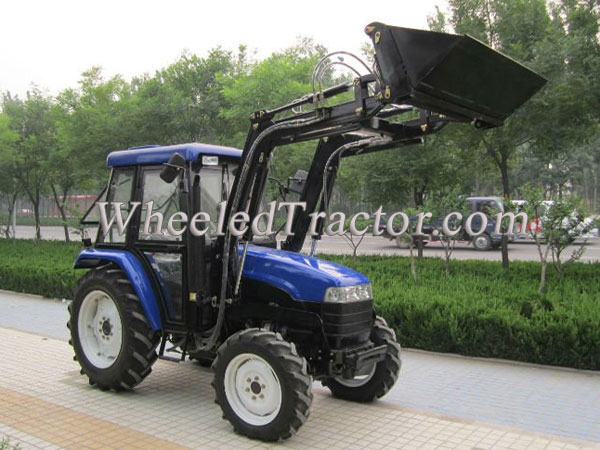

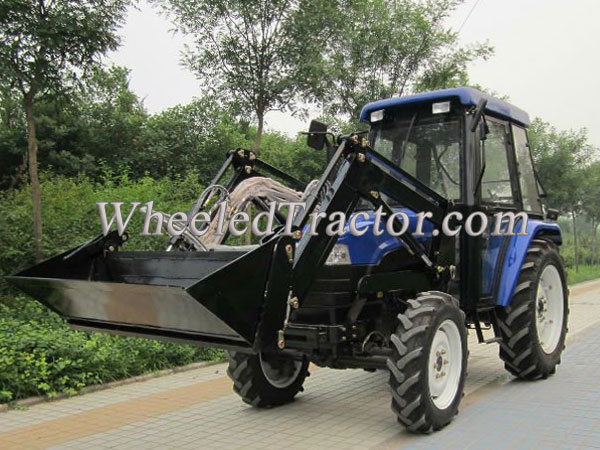

Tractor Front End Loader
Tractor With Front End Loader,CE Certificate TZ-3~TZ-12 20-145HP Tractor Front End Loader,combined buckets(4 in 1 Bucket), grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfull
online service
1).Used in Shoveling, stacking or short-distance transportation of loose material, like mud, sand, stone or garbage.
2).Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting.
3).Hydraulic transmission is used,Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.
4).Different work devices are optional, such as combined buckets(4 in 1 Bucket), grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfull
|
Front end loader Model |
TZ-3 |
TZ-4 |
TZ-5 |
TZ-6 |
TZ-8 |
TZ-10 |
TZ-12 |
||
|
Matching tractor(hp) |
20-30 |
30-40 |
40-55 |
50-60 |
60-80 |
80-110 |
120-145 |
||
|
Overall dimensions(m) |
4.10*1.60*1.58 |
4.90*1.74*2.50 |
5.10*1.74*2.70 |
5.35×1.80×3.00 |
|||||
|
Rated lift capacity(kg) |
300 |
400 |
500 |
600 |
800 |
1000 |
1200 |
||
|
Max.dump height(mm) |
1800 |
2000 |
2100 |
2200 |
2350 |
2550 |
2800 |
||
|
Max.dump distance(mm) |
900 |
900 |
950 |
950 |
960 |
1000 |
1100 |
||
|
Digging depth(mm) |
100 |
120 |
140 |
140 |
180 |
180 |
200 |
||
|
Bucket width(m) |
1.4 |
1.5 |
1.6 |
1.6 |
1.7 |
1.8-2.0 |
2.0-2.2 |
||
|
Bucket capacity(m3) |
0.18 |
0.3 |
0.35 |
0.4 |
0.48 |
0.6 |
1 |
||
|
Bucket rollback angle(°) |
42 |
42 |
42 |
42 |
42 |
42 |
42 |
||
|
Dump angle(°) |
47 |
47 |
46 |
46 |
42-46 |
42-46 |
42-46 |
||
|
Lifting time to pivot pin(s) |
7 |
7 |
7 |
8 |
8 |
8 |
10 |
||
|
Descending time(s) |
3.5 |
3.5 |
3.5 |
3.5 |
4 |
4 |
10 |
||
|
Weight(kg) |
470-650 |
500-680 |
530-720 |
660-800 |
680-830 |
800-980 |
960-1150 |
||
|
Loading quantity(sets/40") |
20 |
20 |
18 |
18 |
16 |
12 |
12 |
||
