Trailer
7C series of farm trailer produced in accordance with national standards ,it is suitable for transporting in the farm land,this series trailer mainly divides into two types:self-discharging and non-self discharging
online service

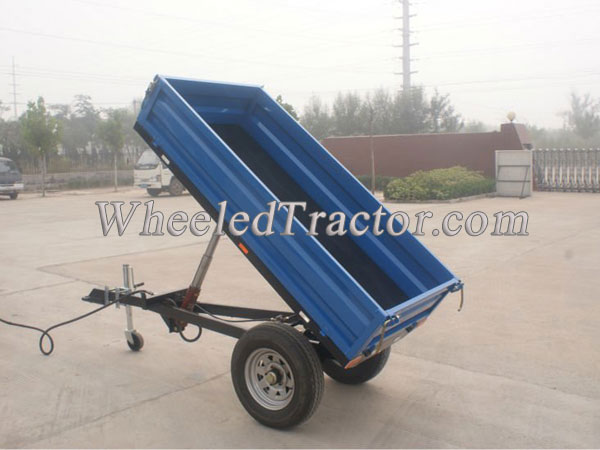

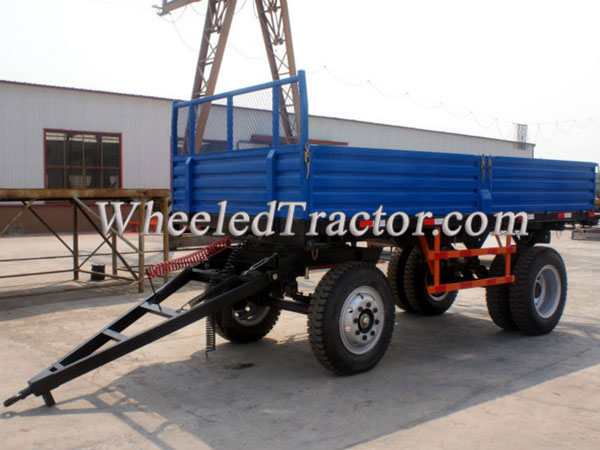

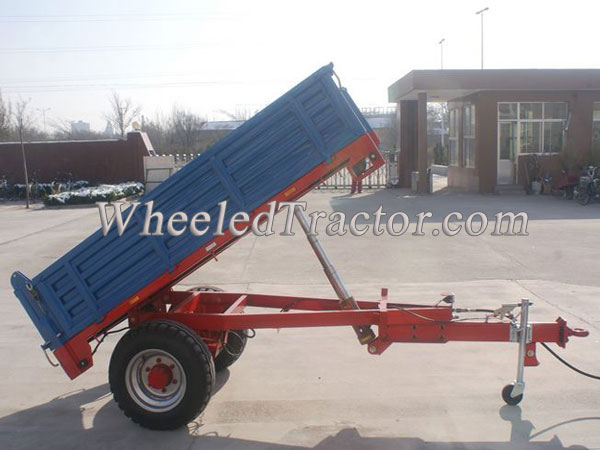

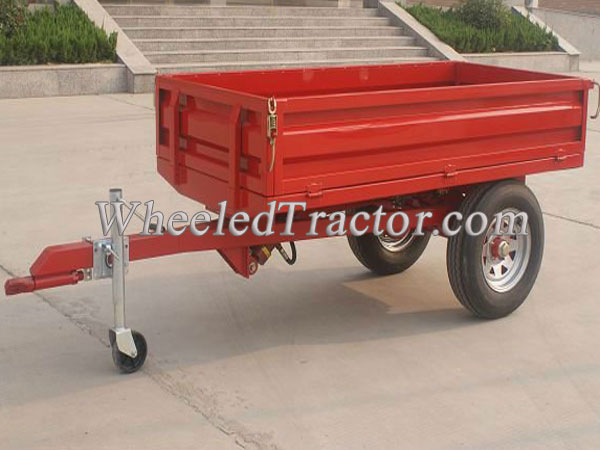

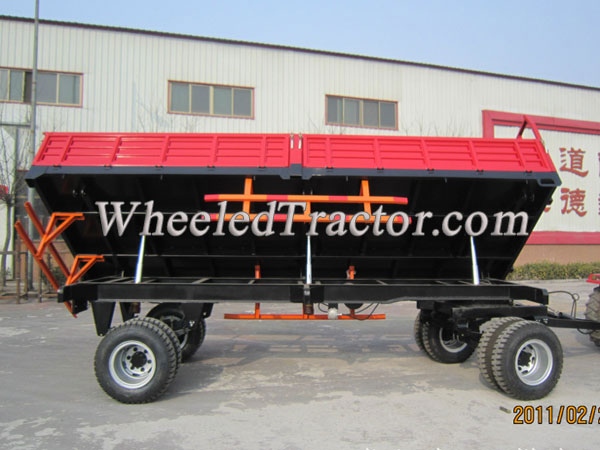

7C series of farm trailer produced in accordance with national standards ,it is suitable for transporting in the farm land,this series trailer mainly divides into two types:self-discharging and non-self discharging.and self-discharging type may also consists of two kind of vehicle types :rear-unloading and the side-unloading.the machine has the dependable quality, strong bearing capacity, very easy in maintenance and so on.we also tingco other type of trailer according to the customers request.
Main Specification of 7C/7CX Series Trailer
Model |
7C/7CX-1.5 |
7C/7CX-2.0 |
7C/7CX-2.5 |
7CX-3.0 |
7CX-4.0 |
7CX-5.0 |
7CX-6.0 |
|||
Unloading Type |
Mechanical/ Hydraulic Unloading |
|||||||||
Rated loading (T) |
1.5 |
2.0 |
2.5 |
3.0 |
4.0 |
5.0 |
6.0 |
|||
Carriage Dimension(mm) |
2000*1000 *450 |
2400*1200 *450 |
2500*1500 *450 |
3000*1600 *450 |
3120*1920 *460 |
3950*2190 *550 |
4500*2150 *550 |
|||
3400*1700 *460 |
3800*1700 *460 |
|||||||||
Axle number |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
|||
2 |
2 |
|||||||||
Wheel Number |
2 |
2 |
2 |
2 |
2 |
4 |
4 |
|||
4 |
4 |
|||||||||
Tyre Type |
6.50-16 |
7.00-16 |
7.00-16 |
7.50-16 |
8.25-16 |
8.25-16 |
9.00-16 |
|||
7.00-16 |
7.50-16 |
|||||||||
Brake Style |
Mechanical Brake or Air brake |
|||||||||
Matched power(hp) |
12-18 |
15-25 |
18-25 |
25-40 |
30-50 |
40-60 |
50-90 |
