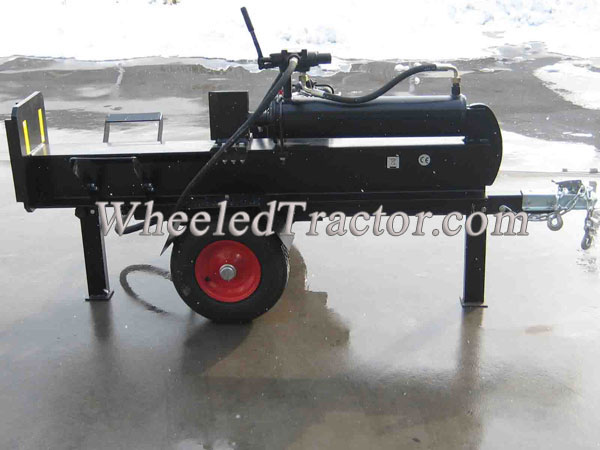

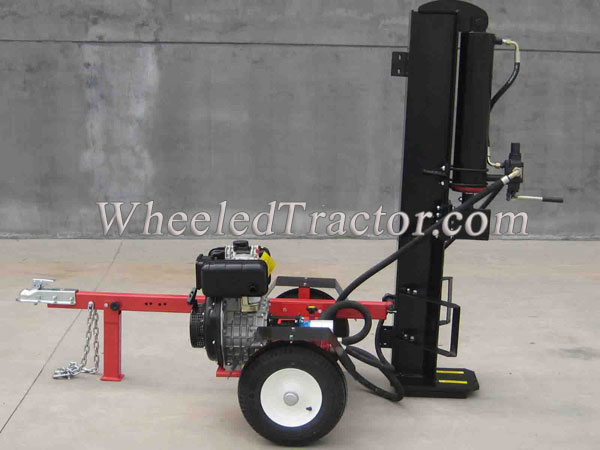

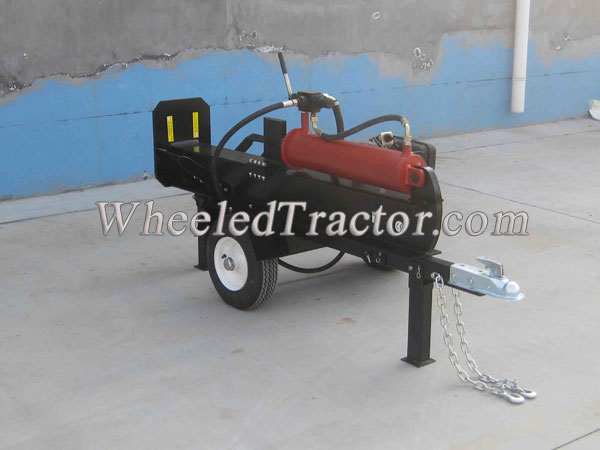

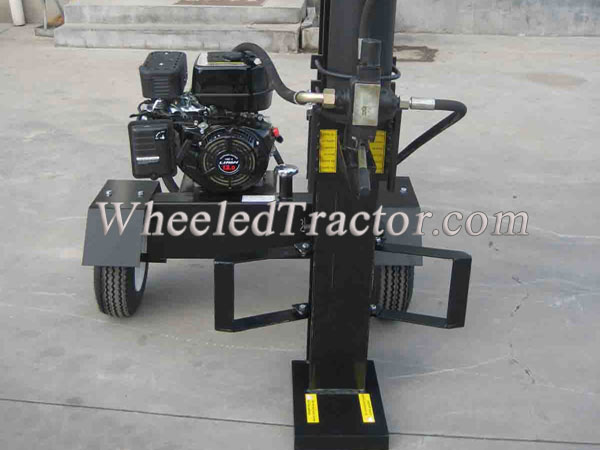

17 Ton Log Splitter
17 Ton Log Splitter,Horizontal / Vertical Log Splitter,hydraulic cylinder for wood log splitter
online service
|
Product Name
|
Log splitter powered by petrol engine(Horizontal /vertical) | |||
|
Model
|
LS17T
|
LS26T
|
LS30T
|
LS37T
|
|
Description
|
Petrol engine driven with shock pad ,wide wheels ,vertical and horizontal |
|||
|
Power
|
6.5HP
|
9HP
|
||
|
Pump power
|
11GPM
|
16GPM
|
||
|
Hydraulic oil capacity
|
27L
|
29L
|
||
| Max. split force |
17T
|
26T
|
30T
|
37T
|
| Max. split size | 610L * 500D mm | |||
| Oil cylinder diameter |
4inch
|
4.5inch
|
5inch
|
5inch
|
|
Cycle time
|
13s-16s
|
23s
|
||
|
Max wheel diameter
|
400mm
|
|||
| Machine dimensions | 2250L*1140W*1250H mm | |||
| Packing dimensions | 2050L* 560W*580H mm | |||
|
G.W. /N.W.
|
265KG/250KG
|
270KG/255KG
|
275KG/260KG
|
280KG/265KG
|
|
Packing mode
|
1pc/ steel pallet +carton | |||
|
Units/20'FCL:
|
40PCS
|
|||
|
Warranty
|
14 months
|
|||
|
Delivery time
|
Within 30 days after receiving bank payment receipt | |||
