26 Ton Log Splitter
Log splitter powered by petrol engine(Horizontal /vertical)
online service

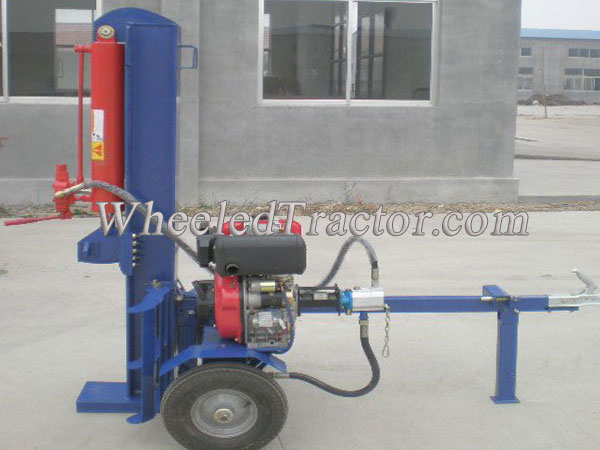

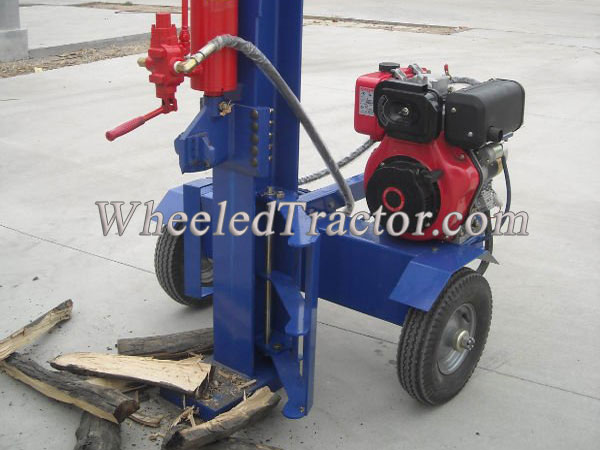

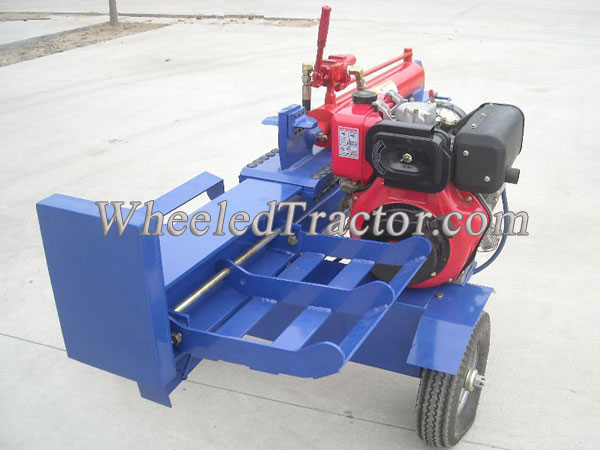

Two handle 26 Ton Vertical or Horizontal petrol log splitte
| TECHNICAL SPECIFICATION | ||||||||
| Model | LS20T/610H/V-BSD-E | LS26T/610H/V-BSD-E | LS30T/610H/V-BSD-E | LS37T/610H/V-BSD-E | LS42T/610H/V-BSD-E | |||
| Description | Diesel /Gasoline engine driven, horizontal or vertical, Electric start | |||||||
| Motive power | 6HP | 9.5HP | 9.5HP | 13HP | 13HP | |||
| Battery | 12V/36mAh | |||||||
| Max. split force | 20tons | 26tons | 30tons | 37tons | 42tons | |||
| split size | 500mm X 610mm(L) Max 1100mmx610mm | |||||||
| Hydraulic oil | 27L | |||||||
| Oil cylinder diameter | 4inch | 4.5inch | 5inch | 5.5inch | 5.5inch | |||
| Travel time | 14 seconds | |||||||
| Pump | 11GPM | 11GPM | 16GPM | 16GPM | 16GPM | |||
| N.W./ G.W. | 252/262kgs | 255/265kgs | 270/280kgs | 290/310kgs | 290/310kgs | |||
| Packing Method | 1pc./ steel pallet | |||||||
| Container Quantity | 40pcs. for 20'FCL | |||||||
| Warranty | 12months since B/L date | |||||||
| Packing dimensions | 2250L*580W*540H mm | |||||||
