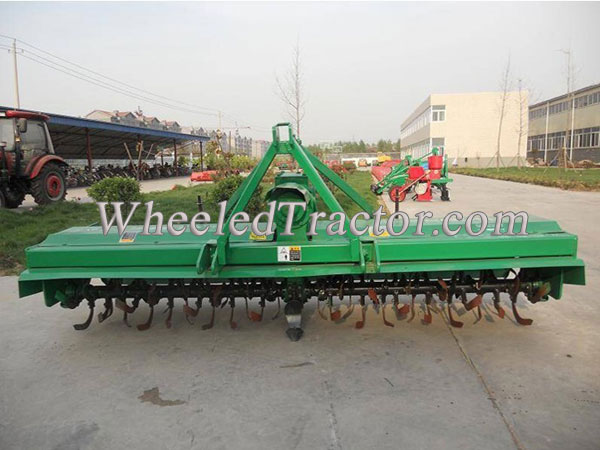

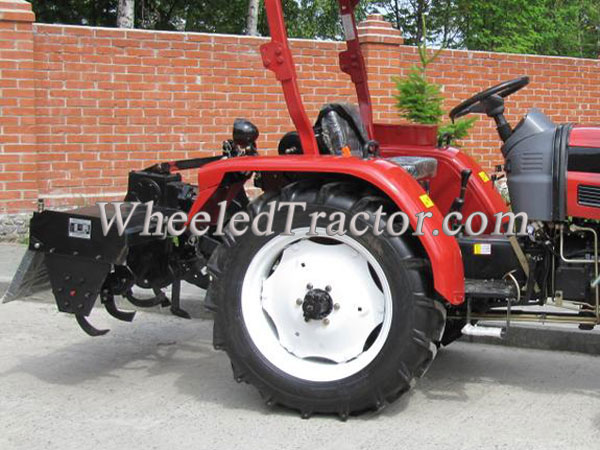

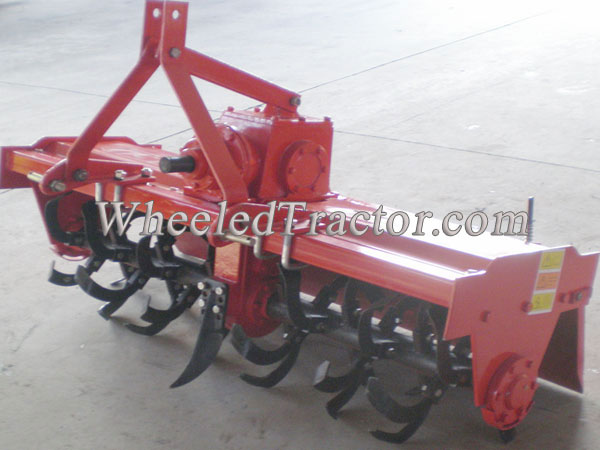

1GQN Rotary Tiller
1GQN Rotary Tillers (Rotavators), with simple structure but reasonable design, are appropriate for rotary tillage in light and medium soil conditions.
online service
Product Description:
1GQN Series Rotary Tillers (Rotavators), with simple structure but reasonable design, are appropriate for rotary tillage in light and medium soil conditions. This kind of rotary tiller is specially used for soil preparation(like loosening and aerating the soil, retaining moisture of the soil etc.), fertilizer incorporating and stubble removing before planting. It also performs well in paddy field puddling with high efficiency and fine smoothness.
Technique parameter:
• This kind of rotary tiller can immediately prepare the soil and produce seedbed quickly and economically
• Perfect in soil conditioning, aerating and moisture retaining
• Applicable for tillage in both dry land and paddy field
• High speed rotary tilling can slash and mix crop residues, stems, roots or stubbles into soil to increase soil fertility
• Rotary tiller blades replaceable from blade seats, easy to assemble and maintain
• Perfect in soil conditioning, aerating and moisture retaining
• Applicable for tillage in both dry land and paddy field
• High speed rotary tilling can slash and mix crop residues, stems, roots or stubbles into soil to increase soil fertility
• Rotary tiller blades replaceable from blade seats, easy to assemble and maintain
| Model | 1GQN-100 | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 |
1GQN -200 |
1GQN-220 | 1GQN-250 |
1GQN -300 |
|
| Tractor power(hp) | 12-15 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 80-120 | |
| Working width(cm) | 100 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | |
| Working depth(cm) | Dry | 12-16 | 12-18 | ||||||||
| Paddy | 14-16 | 14-20 | |||||||||
| No. Of blade | 18 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 58 | 70 | |
| Type of blade | IT225 | IT245 | |||||||||
| Weight(kg) | 200 | 220 | 230 | 240 | 260 | 415 | 430 | 445 | 460 | 520 | |
| Dimension(mm) | L | 900 | 900 | 900 | 900 | 900 | 1020 | 1-20 | 1020 | 1020 | 1020 |
| w | 1050 | 1350 | 1500 | 1600 | 1700 | 1900 | 2100 | 2300 | 2600 | 3100 | |
| h | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | |
| Linkage | Standard three point mounted | ||||||||||
