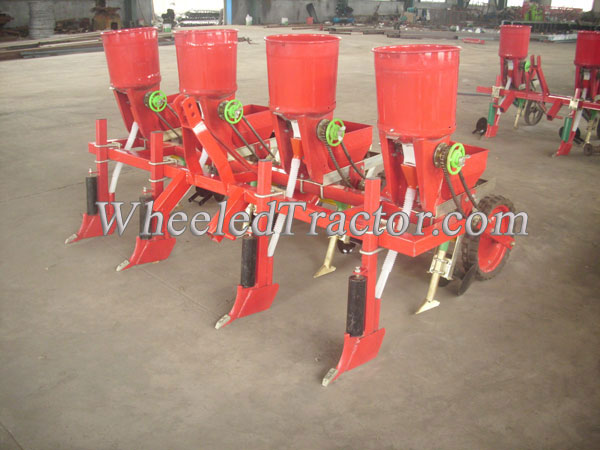

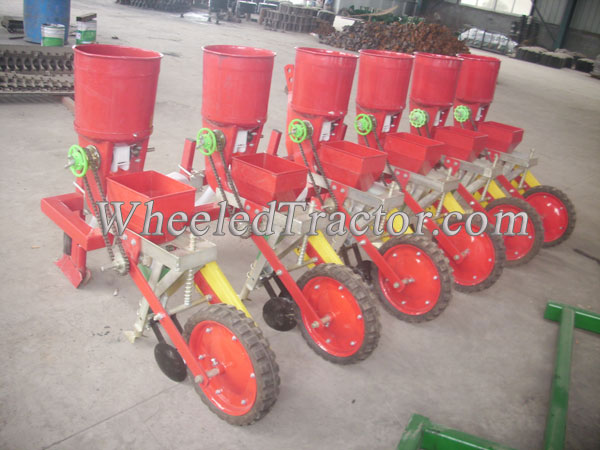

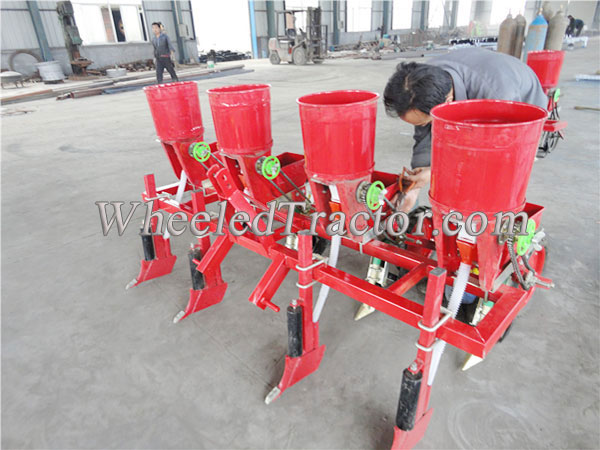

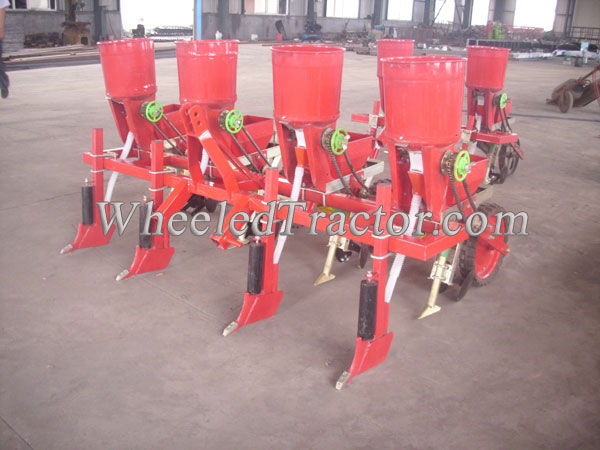

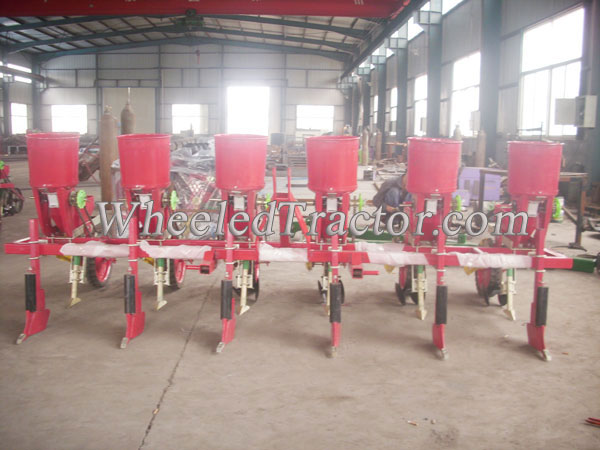

2BYF Corn Planter With Fertilizer Drill
2BYF Corn planter with fertilizer drill,The seeder cum fertilizer drill can seeding and fertilizing at the same time
online service
Product Description:
Technique parameter:
The seeder cum fertilizer drill can seeding and fertilizing at the same time .It can be hitched to a tractor of 15-90 HP. It drills seeds and fertilizer together but delivers them separately in a single drive, Seeds and Fertilizer are drilled at different depths thus improves germination.
• No-tillage on wet soil, can break the soil easily.
• Rubber tires, can not be rusted easily.
• Small discs can cover the soil conveniently after seeding and fertilization.
• The seeding rows can be increased & decreased as per requirement.
• Rubber tires, can not be rusted easily.
• Small discs can cover the soil conveniently after seeding and fertilization.
• The seeding rows can be increased & decreased as per requirement.
| Model | units | 2BYF-3 | 2BYF-4 | 2BYF-5 | 2BYF-6 | 2BYF-7 | 2BYF-8 |
| Matched power | Hp | 15-18 | 20-30 | 30-40 | 40-60 | 60-80 | 80-90 |
| Min. transportation spacing | mm | 300 | 300 | 300 | 300 | 300 | 300 |
| Volume of fertilizer tank | L | 0．03*3 | 0．03*4 | 0.03*5 | 0.03*6 | 0.03*7 | 0.03*8 |
|
Min. spacing (horizontal and vertical) between seeder tank and fertilizer tank. |
mm | >50 | >50 | >50 | >50 | >50 | >50 |
| Working width | mm | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 |
| Productivity | ha/h | 0.75 | 0.99 | 1.24 | 1.49 | 1.74 | 1.99 |
