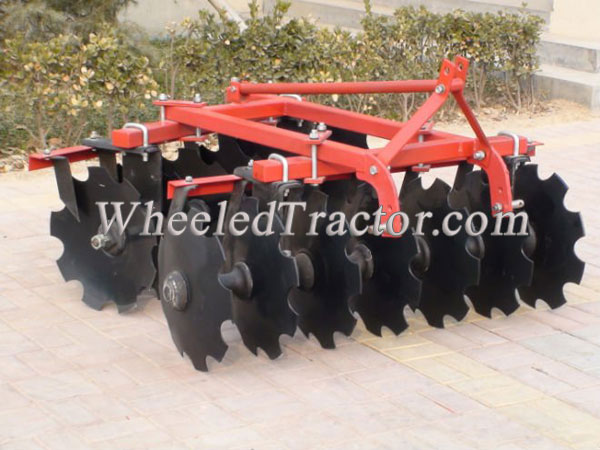

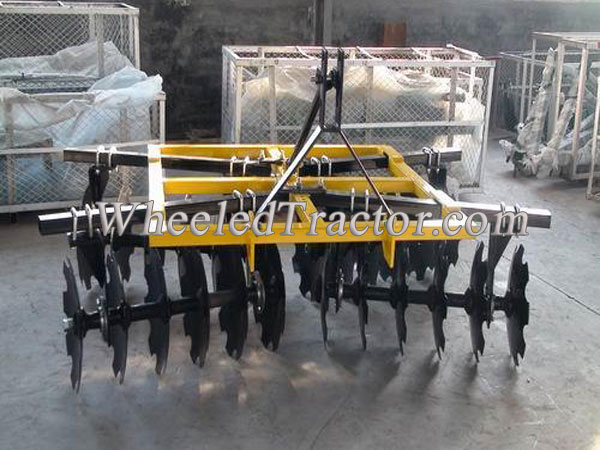

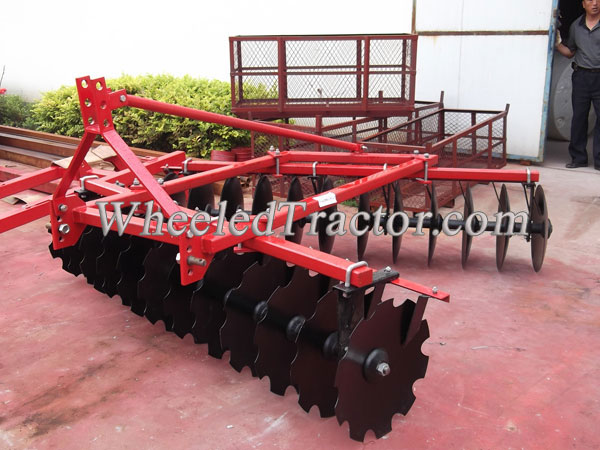

3PT Disc Harrow
Agricultural Disc Harrow,Tractor Disc Harrow,The machine is suitable for pulverizing and loosening clods after plowing and for planning the land before sowing on cultivated land,it can make soil and fertilizer mix up and clear away the stump of plants
online service
Disc harrows,agricultural disc harrow,3-point disc harrows
The machine is suitable for pulverizing and loosening clods after plowing and for planning the land before sowing on cultivated land, it can make soil and fertilizer mix up, and clean away the stump of plants. With the reasonable structure, the machine is durable in service, easy to be operated and maintained, etc.
it is suitable for pulverizing and loosening the land before sowing on cultivated land,
it can make soil and fertilizer mix up and clear away the stump of plants.
The machine is suitable for pulverizing and loosening clods after plowing and for planning the land before sowing on cultivated land, it can make soil and fertilizer mix up, and clean away the stump of plants. With the reasonable structure, the machine is durable in service, easy to be operated and maintained, etc.
it is suitable for pulverizing and loosening the land before sowing on cultivated land,
it can make soil and fertilizer mix up and clear away the stump of plants.
|
Model
|
1BQX—1.1
|
1BQX—1.3
|
1BQX—1.5
|
1BQX—1.7
|
1BQX—1.9
|
1BQX—2.3
|
||
|
Name
|
The 12-blades light-duty harrow
|
The 14-blades light-duty harrow
|
The 16-blades light-duty harrow
|
The 18-blades light-duty harrow
|
The 20-blades light-duty harrow
|
The 24-blades light-duty harrow
|
||
|
(mm)Overall dimensions
|
L
|
1590
|
1590
|
1905
|
1985
|
2060
|
2650
|
|
|
W
|
1230
|
1440
|
1600
|
1820
|
2000
|
2450
|
||
|
H
|
830
|
830
|
1118
|
1118
|
1118
|
1280
|
||
|
(m)
Max. Working width
|
1.1
|
1.3
|
1.5
|
1.7
|
1.9
|
2.3
|
||
|
(cm)
Working depth
|
10~14
|
|||||||
|
No. Of disc
|
12
|
14
|
16
|
18
|
20
|
24
|
||
|
(mm)
Dia of disc
|
460
|
|||||||
|
(mm)
Thickness of disc
|
3
|
|||||||
|
Weight(kg)
|
200
|
220
|
240
|
260
|
300
|
500
|
||
|
(ha/h)
Productivity
|
0.7
|
0.84
|
0.97
|
1.1
|
1.25
|
1.5
|
||
|
Linkage
|
three-point mounted
|
|||||||
|
(mm)
Trans. Clearance
|
≥280
|
≥280
|
≥200
|
≥200
|
≥200
|
≥200
|
||
|
(HP)
Matched power
|
12~18
|
15~24
|
22~28
|
30~40
|
35~45
|
50~60
|
||
