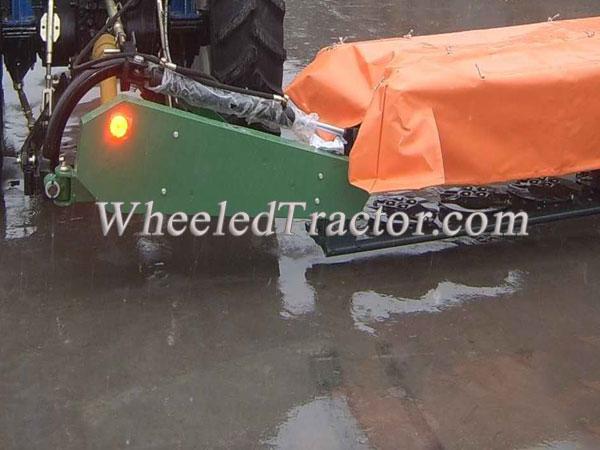

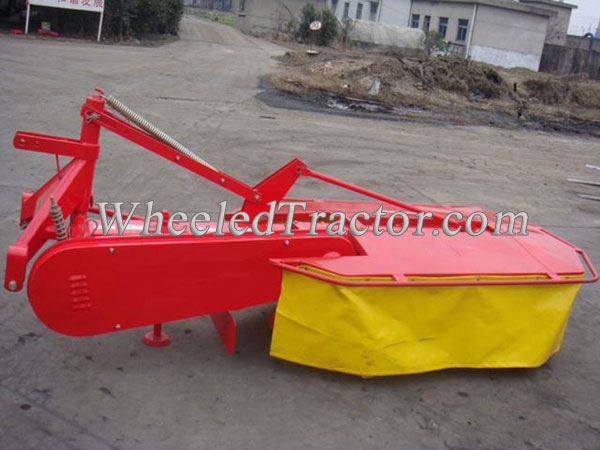

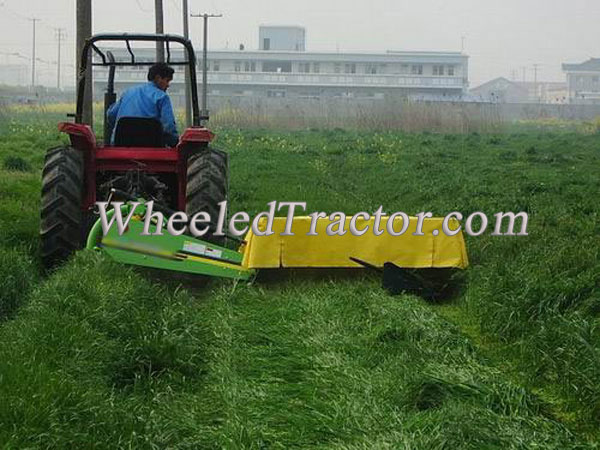

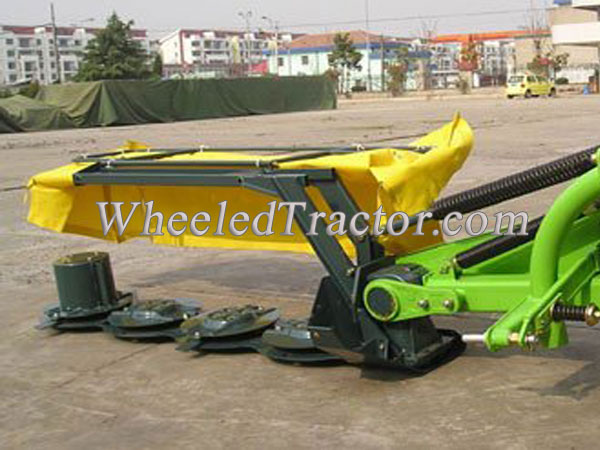

3PT Disc Mower
Disc Mower widely used in large pastures, usually cut grass, hay, alfalfa, corn stalk, etc.
online service
1.Disc mower with different discs, also with various of cutting width, from 1.3m - 2.55m, cutting grasses into 2-6 lines.
2.disc mower widely used in large pastures, usually cut grass, hay, alfalfa, corn stalk, etc.
3.disc mower cuts through heavy,high crops without wrapping or plugging,as well as for light thin grass.
4.disc mower can be raised quickly for turning or transport without adjusting the 3 point hitch.
5.disc mower suitable for wide range terrains and contours,even uneven and rochy ground.
6. efficient, compact structure, low maintanence. competitive price.
Technical paramter
2.disc mower widely used in large pastures, usually cut grass, hay, alfalfa, corn stalk, etc.
3.disc mower cuts through heavy,high crops without wrapping or plugging,as well as for light thin grass.
4.disc mower can be raised quickly for turning or transport without adjusting the 3 point hitch.
5.disc mower suitable for wide range terrains and contours,even uneven and rochy ground.
6. efficient, compact structure, low maintanence. competitive price.
Technical paramter
| SPECIFICATIONS | DM1300 | DM1700 | DM2150 | DM2550 |
| Match power | 18-50hp | 35-80hp | 40-85hp | 40-90hp |
| 3-Point Linkage | Cat.IorII | Cat.IorII | Cat.IorII | Cat.IorII |
| length | 2080mm | 2533mm | 2950mm | 3270mm |
| Width | 1180mm | 1180mm | 1280mm | 1280mm |
| Height | 780mm | 780mm | 780mm | 780mm |
| Weight | 280kgs | 370kgs | 400kgs | 450kgs |
| Working Width | 1300mm | 1700mm | 2150mm | 2550mm |
| Number of Disk | 2ps | 4ps | 5ps | 6ps |
| Working speed | 4-10km/h | |||
