3PT Drive Disk Plough
Tractor Drive Disk Plough For Paddy Field Plowing,working width:60-200cm,working depth:120-200mm
online service

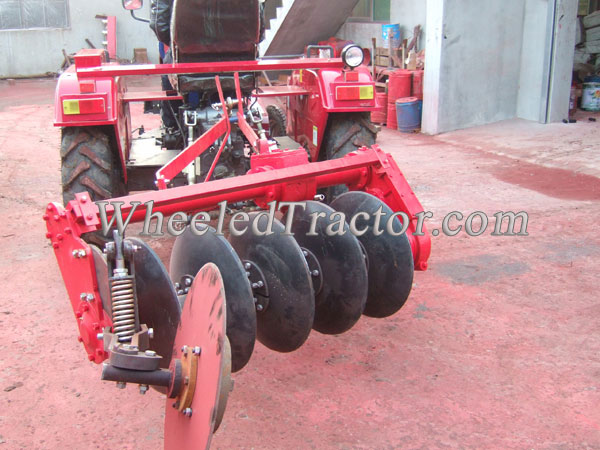

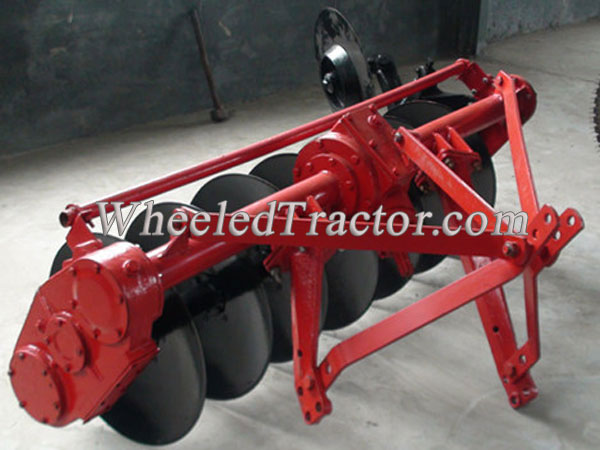

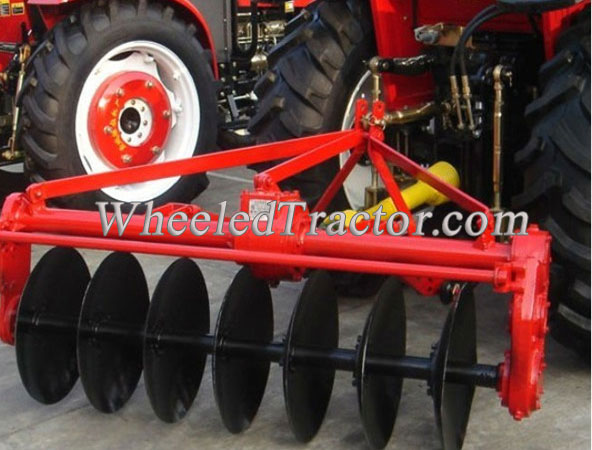

Drive Disc Plow 1LYQ drive disc plow is mounted on a tractor through a rear mounted three-point linkage. During the working process of the implement, the motive power is transferred to the gear case of the disc plow through a back power takeoff shaft (PTO) of the tractor to drive the discs of the disc plow to rotate. The drive disc plow, which is mainly suitable for paddy field plowing, has the advantages of no weed winding, high operational quality and high working efficiency
| Model | 1LYQ-422 | 1LYQ -522 | 1LYQ-622 | 1LYQ -722 | 1LYQ-822 |
| Overall dimension(mm) | 965x1365 x1050 | 1075x1585 x1050 | 1210x1805 x1050 | 1325x2025 x1050 | 1440x2245 x1050 |
| Working width(mm) | 880 | 1100 | 1320 | 1540 | 1760 |
| Matched power(hp) | 18~22 | 25~30 | 40~50 | 50~60 | 60~70 |
| Working depth(mm) | 200~240 | ||||
| Rotating speed of input shaft(r/min) | 540~720 | ||||
| Rotating speed of cutter shaft (r/min) | 90~120 | ||||
