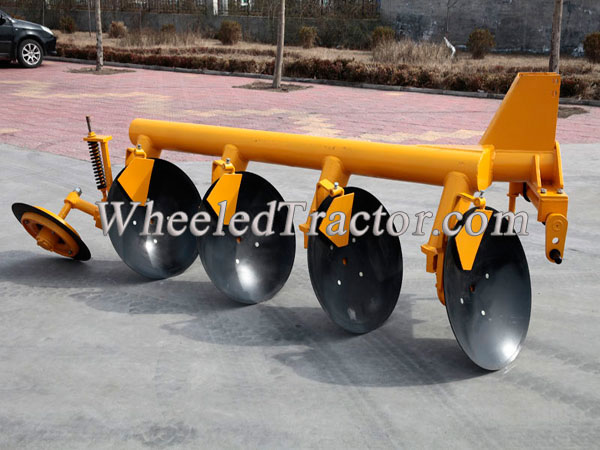

3PT Pipe Disc Plough

Pipe disc Plough,Tractor disc plough,Farm disc plough,disc plow,disk plough

working width:900mm

working depth:250mm

total weight:390kg

fitted power:55-80hp

linkage:3-point suspension

The machine is completely mounted with tractor, during operation, the discs by its rotating to turn the soil, particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and brickbat, etc. in the field. It is good at cutting the grasses and straw and free from stopped by the grasses, soil or stones, etc. According to the structure ,it can be divided into different forms of 1LY (T) series; 1LY series; 1LYX series; 1LY (SX) series.can match with tractor of John Deere,Mahindra,Massey Ferguson,YTO,weituo,Foton Lovol,Jinma,Dongfeng,Changfa,Jiangsu,BOMR,Kama etc

1LYX disc plows are three kinds of models of the identical series farming machineries. This plow could be connected and mounted with the tractor, while working the disc of the plow rotary motion and then plough the soil. It has the following advantages better than ploughshare: Does not entangle the grass, does not block, does not obstruct the earth, Can shut off the crop's stem and root stubble, does not feat the bricks and stones fragment in the soil, and the working resistance is small. Therefore, these types are suitable working for overgrown with weeds and steams, the soil resistance is big and has bricks and stones fragment, and the condition complex farmland, The working efficiency is high, the quality is good, adjusts conveniently, and the plough is reliable and durable and so on.
