3PT Ridger

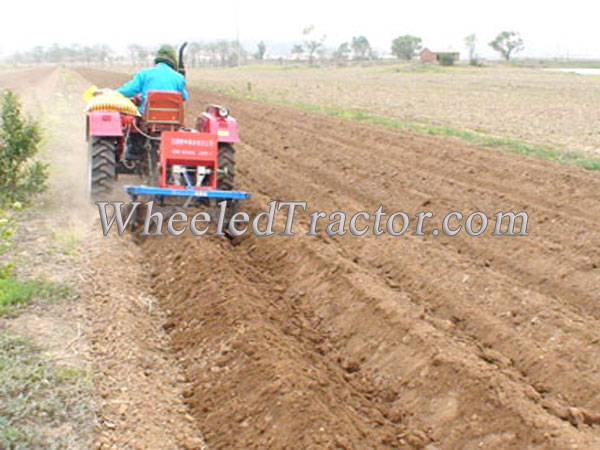

3Z adjustable ridge machine design ed and manufactured, ltd is used for making ridge in the field after tillage. The main frame is made of rectangular tube welded together, assembled with the angle adjustable disc ridging unit.
online service

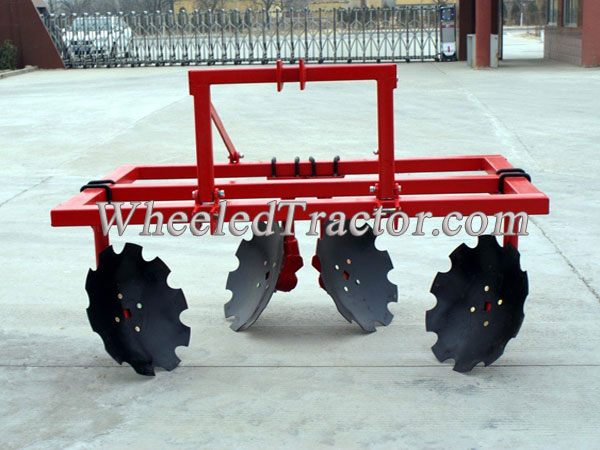

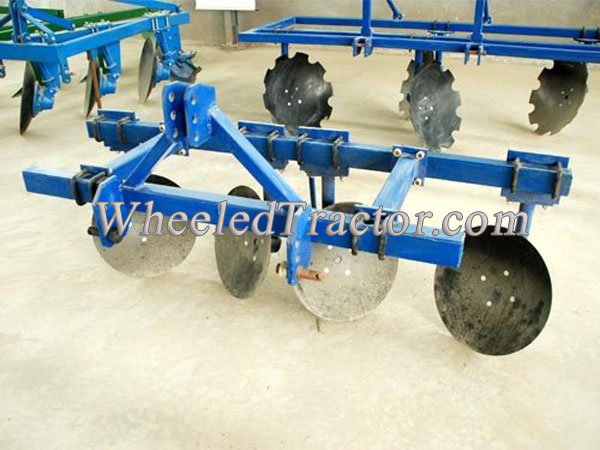

Model 3Z adjustable ridge machine design ed and manufactured, ltd is used for making ridge in the field after tillage. The main frame is made of rectangular tube welded together, assembled with the angle adjustable disc ridging unit. The discs are made of qualified 65Mn steel plate with heat treatment. The machinery is steady and durable, convenient for transport and easy to adjust, operate and maintenance.
| item | 3z-80 | 3z-120 | 3z-180 | 3z-260 | 3z-2000 | 3z-3000 | |
|
overall dimension |
mm | 1200*1000*1000 | 1200*1500*1000 | 1200*2050*1300 | 1200*2700*1300 | 1200*1500*1000 | 1200*1500*1000 |
|
Working width |
mm | 800 | 1200 | 1800 | 2600 | 2000 | 3000 |
|
Width of Ridge |
mm | 200-450 | 200-450 | 200-450 | 300-500 | 200-450 | 200-450 |
|
Height of Ridge |
mm | 150-240 | 150-240 | 150-300 | 150-300 | 200-300 | 200-400 |
|
Weight |
Kg | 150 | 160 | 200 | 280 | 220 | 380 |
|
Matched power |
Hp | 15-20 | 25-30 | 55-70 | 60-90 | 40-50 | 60-90 |
