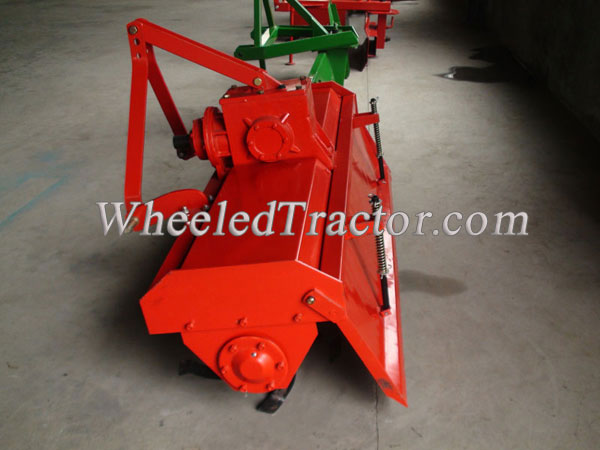

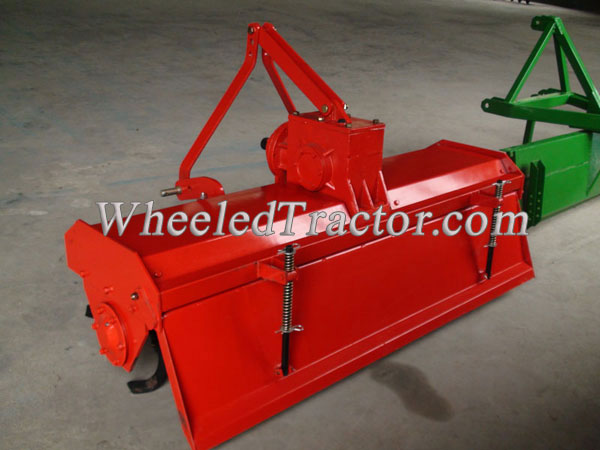

3PT Rotary Tiller
3-Point Rotary Tiller PTO Shaft and Clutch We can change color under required,Blade have many size
online service
| Model | 1GQN-100 | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 | 1GQN-200 | 1GQN-220 | 1GQN-250 | 1GQN-300 | |||||
| Matched power (hp) | 12-15 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 80~120 | |||||
| Working width(cm) | 100 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | |||||
| Working depth(cm) | Dry land | 12-16 | 12-18 | ||||||||||||
| paddy field | 14-16 | 14~20 | |||||||||||||
| No. of blades | 22 | 26 | 30 | 34 | 38 | 50 | 54 | 58 | 62 | 72 | |||||
| Type of blade | IT225 | IT245 | |||||||||||||
| Total weight(kg) | 200 | 220 | 230 | 240 | 260 | 415 | 430 | 445 | 460 | 520 | |||||
| Overall Dimension(mm) | (L) | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | ||||
| (W) | 1050 | 1350 | 1500 | 1600 | 1700 | 1900 | 2100 | 2300 | 2600 | 3100 | |||||
| (H) | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | |||||
| Linkage | Standard three-point mounted | ||||||||||||||
