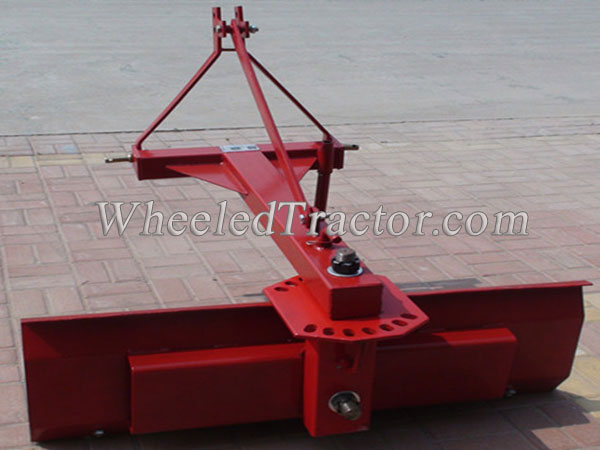

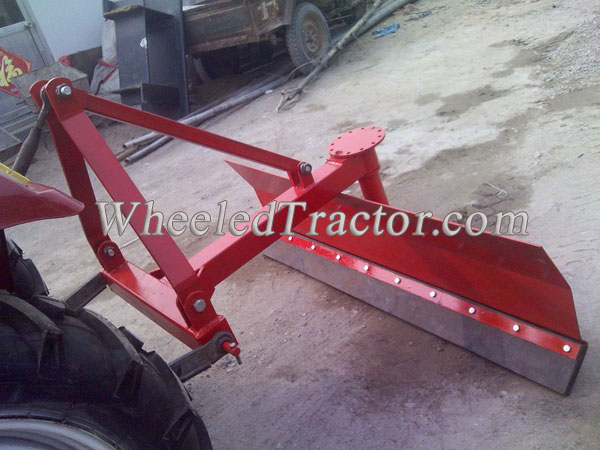

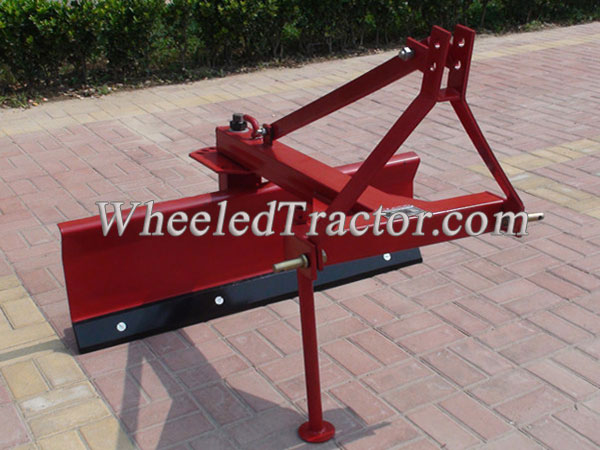

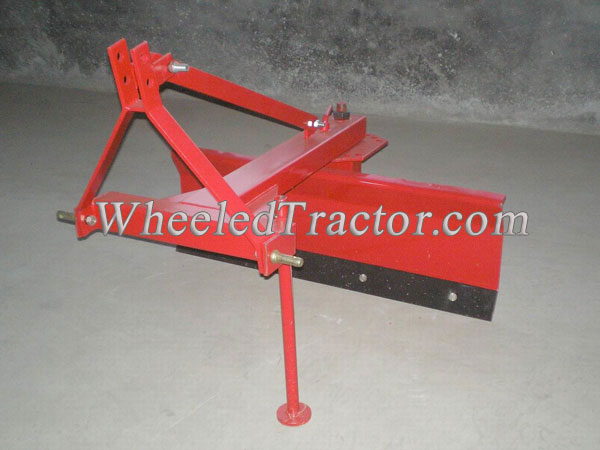

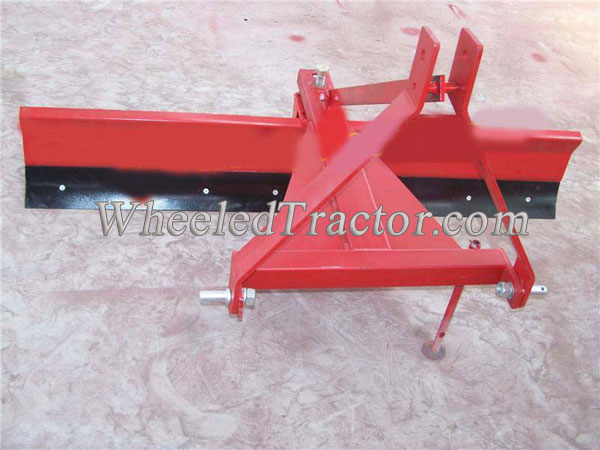

3PT Scrape Blade
Rear Blade,tractor grader blade scraper machine is mainly used for craping the land, it's structure is very simply, and it's quantity is very good, it has many muiti angle to be adjustabled. the working efficiency is very high. also it can be matched
online service
RB series of rear blade is mounted with the tractor's rear three-point suspension and the blades adopt 65Mn steel partially with high hardness and wear resistance .It is mainly used for land with more broken stones and road surface to level , repair and clean piled snow . It has the advantages of convenient linkage , adjustable angle , and good adaptation .
| Model | Unit | RB-4 | RB-5 | RB-6 | RB-7 |
| Working width | mm | 1200 | 1500 | 1800 | 2100 |
| Total weight |
Kg |
150 | 180 | 210 | 240 |
| Linkage | Three-pointed mounted | ||||
| Matched Power | hp | 20 | 25 | 30 | 40 |
