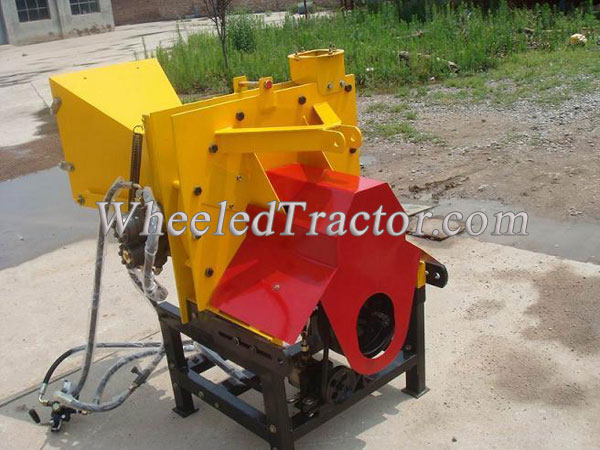

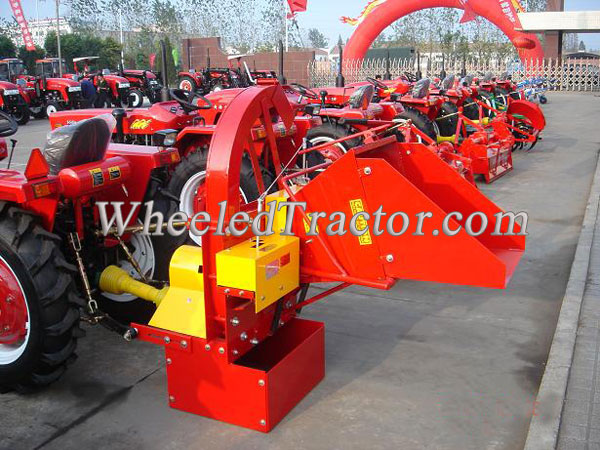

3PT Wood Chipper
3-Point Hitch PTO wood chipper, Self-feeding Diesel Engine Wood Chipper,wood chipper can be used for animal bedding, for the forestry and soil protecting, for new energy making, for compost and for charcoal.
online service
| Technical details of PTO driven model Wood Chipper | ||
| Model | TH- 8 | TM- 8 |
| Max. Dia. of Feeding | 8'' | |
| POWER | Tractor (18~100hp, 540/720rpm) | |
| Diameter of Chipper Disk | 600mm | 600mm |
| Turning Speed of Chipper Disk | 1080rpm/1410rpm | |
| Feeding System | Hydraulic Feeding, | Feeding by Worm Reduction |
| Adjustable Speed, | Gear(4mm/s) | |
| Stop-Reverse-Forward Function | Only Forward Function | |
| Blade material |
Durable Chromium CR-12 |
|
| Sawdust Measurement | Thickness<4mm | |
| Rotation Angle of Discharge Spout | 360 | |
| Weight | 450kg(990LBS) | 420kg(930LBS) |
| Working Efficiency | 8~9m 3 /h | 6~9m 3 /h |
| Volume of TANK | 26L | / |
| PACKAGE DIMENSIONS (L×B×H) | 1150×900×1300 (mm) | 1150×900×1300 (mm) |
| 20GP/40HC container | 22unit/46units | 22units/46units |
