3Z Disc Ridger
3Z Disc Ridger It is mainly used for ridging in the field of potato,beans,vegetables after tillage.it has the advantagess of convenient adjustment in ridging spacing,ridging height,ridging rows and angle,wide range of matched tractors,good ability of
online service
Product Description:
Technique parameter:

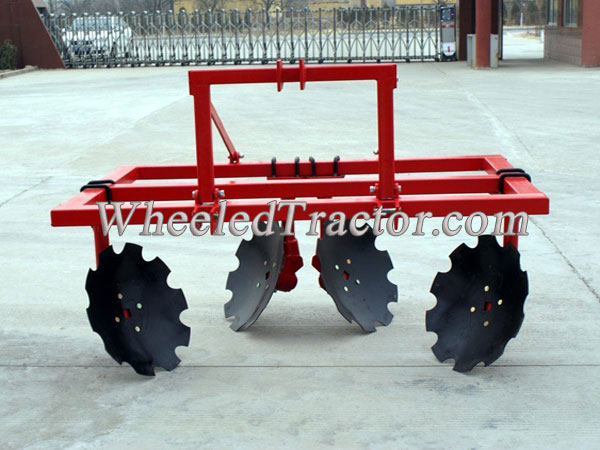

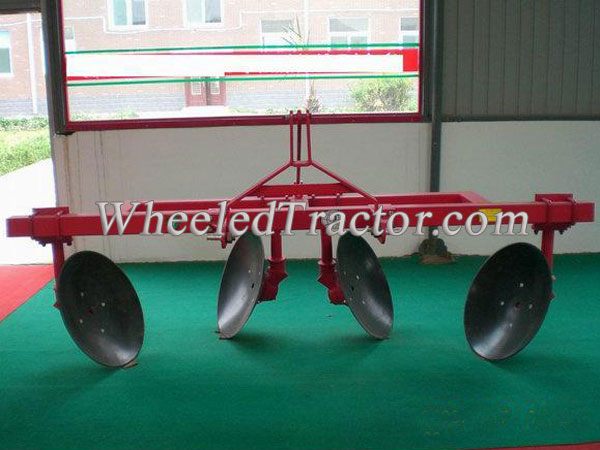

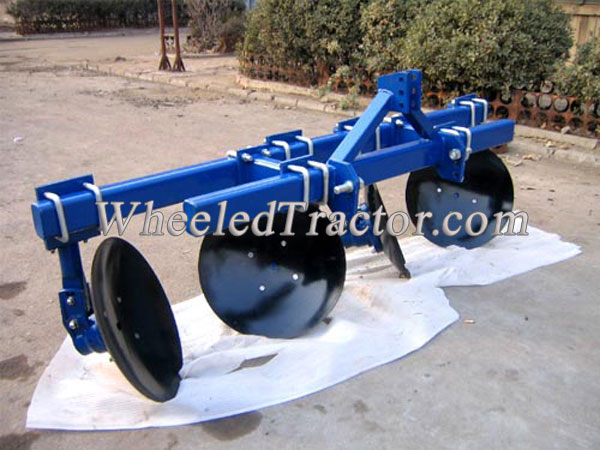

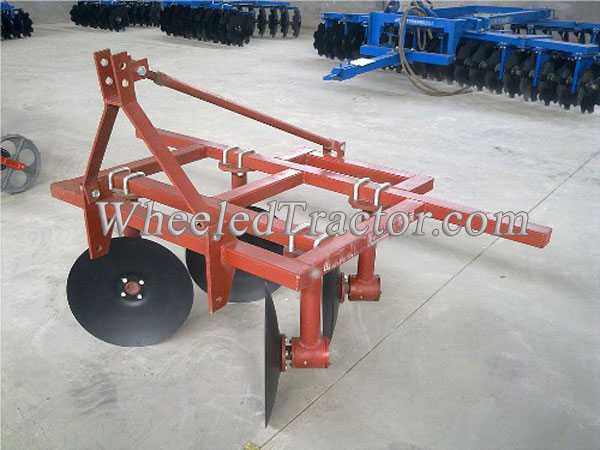

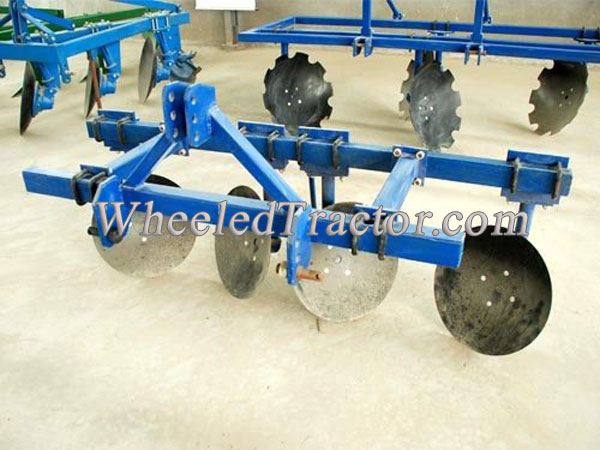

3Z series of Disc Ridger consists of heavy duty tubular box frame, 3 point hitch system and discs. It is used for making irrigation banks for effective control of flood irrigation or bunds of the size and shape to match crop and soil conditions.
• The discs are adjustable along the frame to vary bund width and height. Also the angle between discs is adjustable.
• Can add top level plate to smooth the soil easily.
• Square Tubular Frame, stronger construction.
• Can add top level plate to smooth the soil easily.
• Square Tubular Frame, stronger construction.
| Model | Unit | 3Z-80 | 3Z-120 | 3Z-180 | 3Z-260 |
| Working width | mm | 800 | 1200 | 1800 | 2600 |
| Ridging width | mm | 200~450 | 200~450 | 300~500 | 300~500 |
| Ridging height | mm | 150~240 | 150~240 | 150~300 | 150~300 |
| Overall weight | kg | 150 | 160 | 200 | 280 |
| Matched power | hp | 20 | 25~30 | 50 | 70 |
