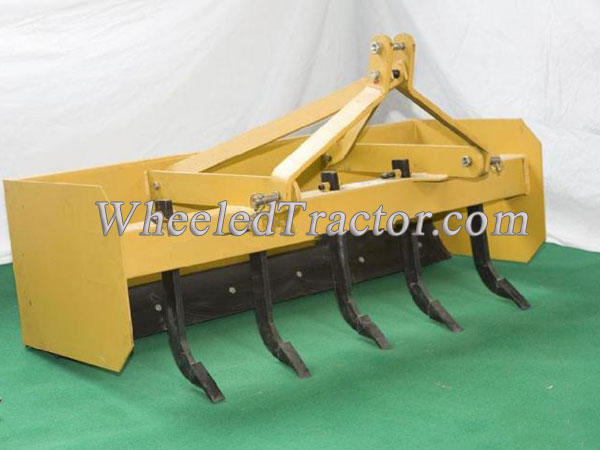

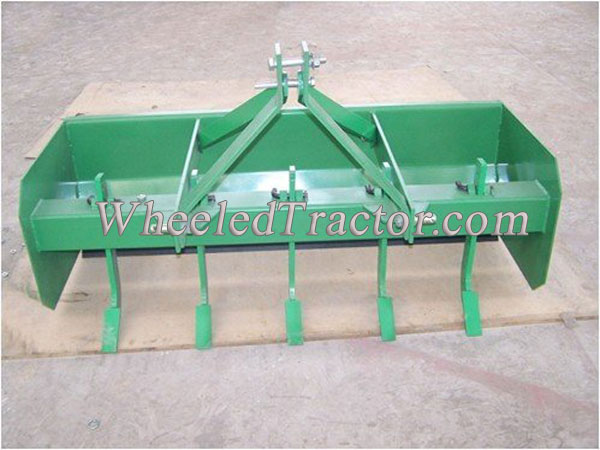

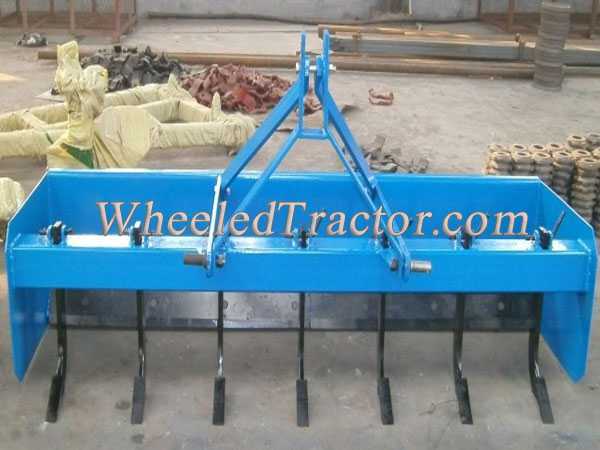

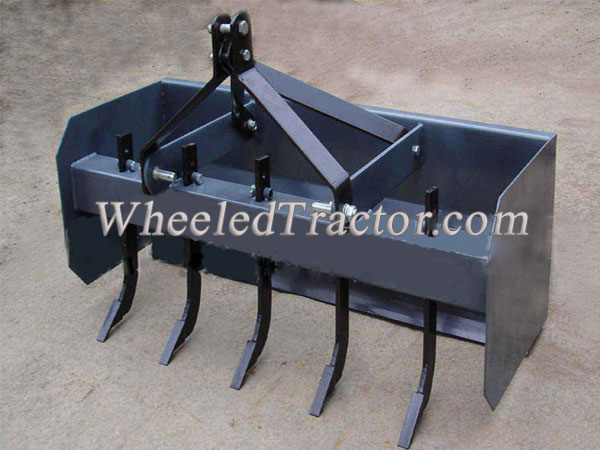

BB Box Blade
Box blade are usually equipped with several removable scarifier “shanks” that are adjustable in height. The box scraper is widely used in Leveling uneven ground, ripping and clearing light scrub, backfilling trenches, repairing gravel drives.
online service
Product Description:
Technique parameter:
This type of Box blade are usually equipped with several removable scarifier “shanks” that are adjustable in height. The box scraper is widely used in Leveling uneven ground, ripping and clearing light scrub, backfilling trenches, repairing gravel drives. This TSBB box blade - designed and built for simple operation, dependable up time, and maximum performance.
• The blade of the box scraper is made by 65Mn spring Steel (high-carbon steel), the blade hardness can up to 38 - 44 HRC.
• The box blade is easily mountable with three point linkage.
• The box blade is a basic implement for leveling land.
• Adjustable scarifier height to create the desired.
• Strong frame to conquer the toughest jobs.
• The box blade is easily mountable with three point linkage.
• The box blade is a basic implement for leveling land.
• Adjustable scarifier height to create the desired.
• Strong frame to conquer the toughest jobs.
| Model | Unit | BB-4 | BB-5 | BB-6 | BB-7 | BB-8 |
| Working width | mm | 1200 | 1500 | 1800 | 2100 | 2400 |
| No. of blades | 4 | 5 | 6 | 7 | 8 | |
| Total weight | kg | 180 | 200 | 230 | 260 | 300 |
| Matched power | hp | 18 | 25 | 30 | 40 | 50 |
