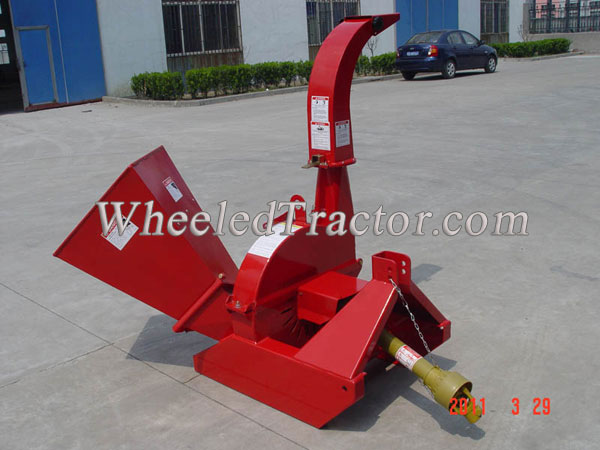

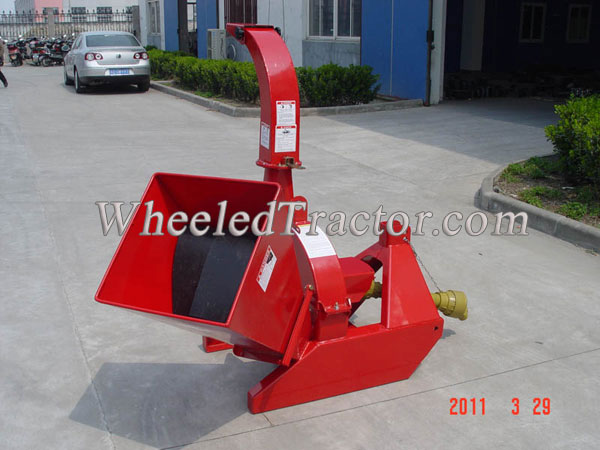

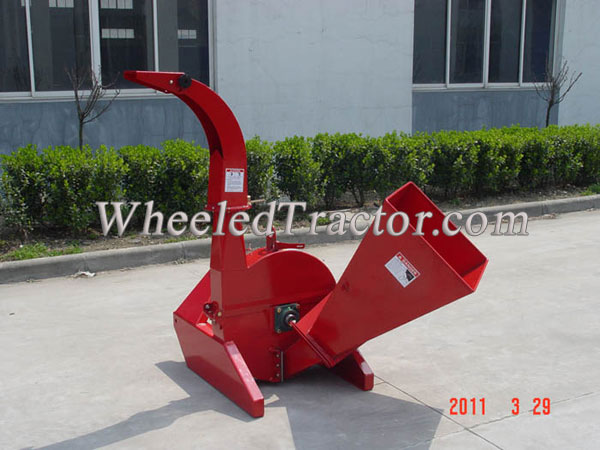

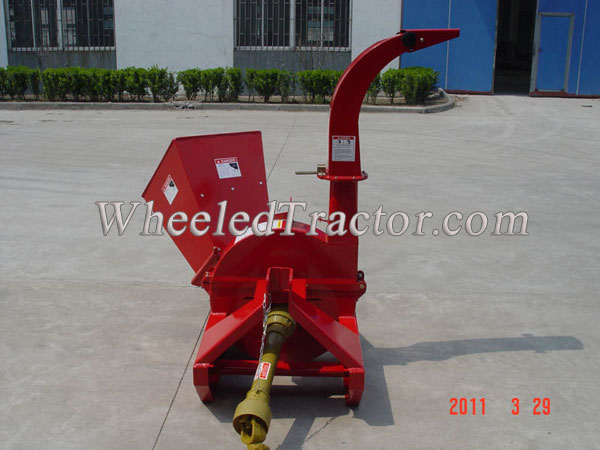

BX-42S Wood Chipper
BX-42S Wood Chipper,Wood Chipper BX92R, PTO Driven, CE approval,Air Vents, Twig Breaker Blower Paddles,Hydraulic Feed Hopper
online service
| Model | BX42S wood chipper | BX62S/R wood chipper | BX92R wood chipper |
| Drive System | Direct drive, PTO w/ shearbolt | Direct drive, PTO w/ shearbolt | Direct drive, PTO w/ shearbolt |
| HP requirements for max. cap. | 35-40 | 60-70 | 85-110 |
| HP Range | 18-50 | 30-100 | 65-150 |
| Chipper Capacity | 4" Dia. (max. 12" slab) | 6" Dia. (max. 12" slab) | 10" Dia. (up to 14" slab) |
| Chipper Housing Opening | 4"x10" | 6½" x 12" | 10½" x 14" |
| Rotor Size | 25" | 30" | 36" |
| Number of Rotor Knives | 4 | 4 | 4 |
| Knife Type | Hardened tool steel | Hardened tool steel | Hardened tool steel |
| Rotor Weight | 110 lbs. | 180 lbs. | 280 lbs. |
| Feeding System Feed | Self Feed | Self or Hydraulic Feed | Hydraulic Feed |
| Mounting System | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch |
| Dimensions (Hopper Folded) | 40"L x42"W x 60"H | 50"L x 52"W x 74"H | 54"L x 52"W x 88"H |
| Hopper Opening | 20" x 20" | 25" x 25" | 25" x 25" (635X635mm) |
| Discharge Hood Rotation | 360° | 360° | 360° |
| Discharge Hood Height | 60" | 74" | 84" |
| Rated RPM | 540-1000 | 540-1000 | 540-1000 |
| Weight | 425 lbs. | BX62S-770 lbs./BX62R-1070lbs | 1375 lbs. (735KGS) |
