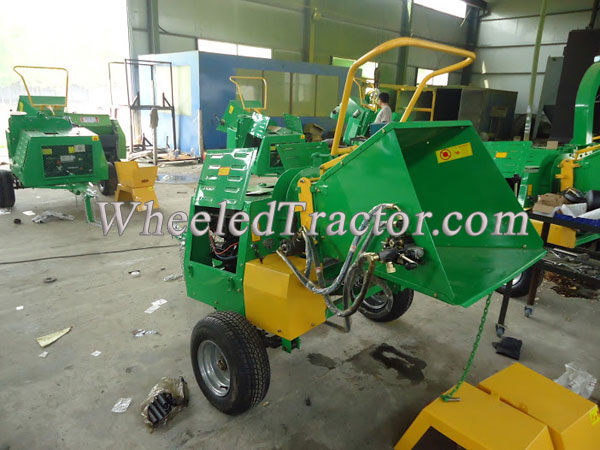

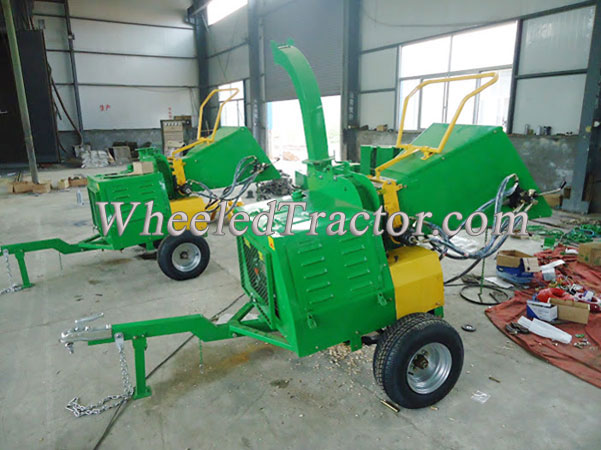

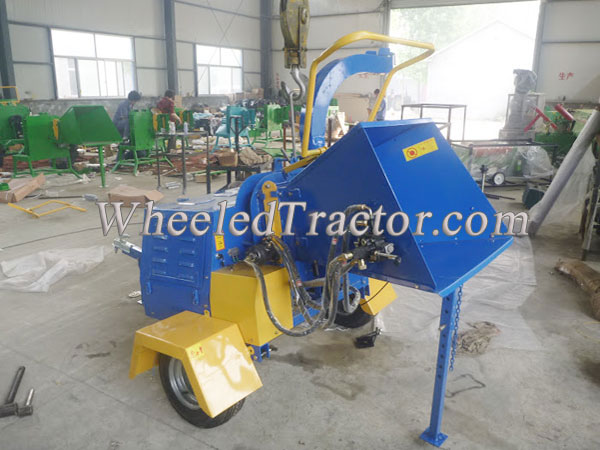

WC-22DH Wood Chipper
22hp wood chipper,CE approval diesel engine;,famous coupling with good quality.,Hydraulic feeding system;
online service
| MODEL | WC-22DH | |
| Max. Dia. of Feeding | 8 inch | |
| Power | Diesel 1115(22hp,1 Cylinder,2000rpm) | |
| Flywheel Diameter | 600mm | |
| Flywheel Turning Speed | 1025rpm | |
|
Feeding System |
Hydraulic Feeding, Adjustable Speed Stop-reverse-forward function |
REDUCTION BOX FEEDING Only forward function |
| BLADE QUANTITY | 2 OR 4(NOT TO BE RECOMMENDED) | |
| SAWDUST MEASUREMENT | THICKNESS<4mm | |
| FEEDING OUTLET ROTATION ANGLE | 360 | |
| WEIGHT | 570kg | |
| WORKING EFFICIENCY |
8~9m3/h |
|
| VOLUME OF TANK | 26L | / |
|
(L×B×H)(mm) PACKAGE DIMENSIONS(L×B×H) (mm) |
1350×1360×136 | |
