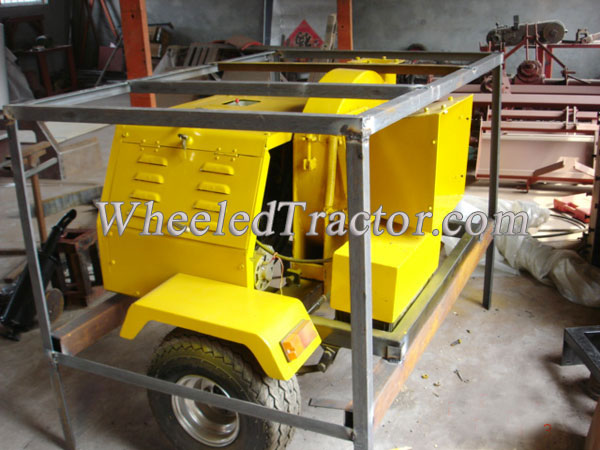

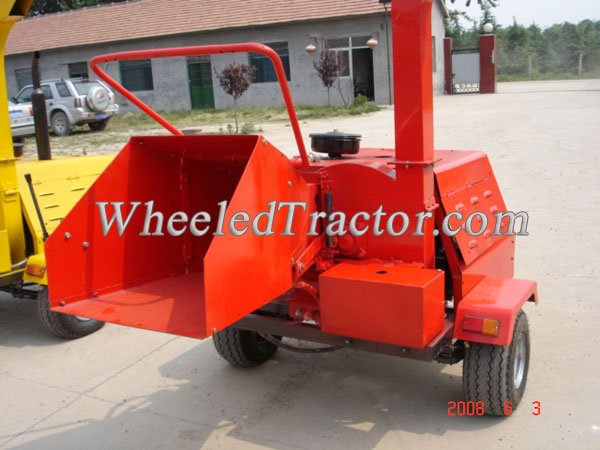

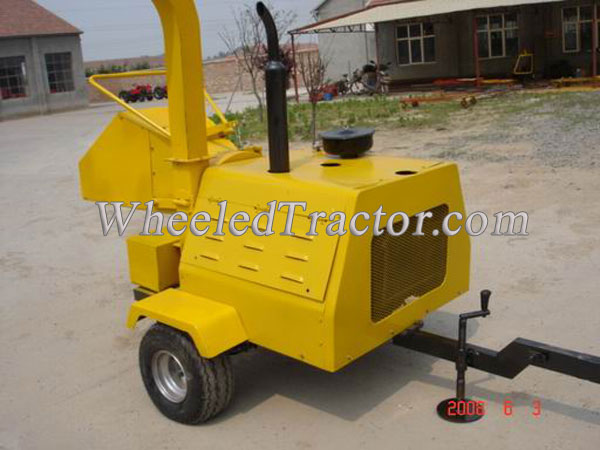

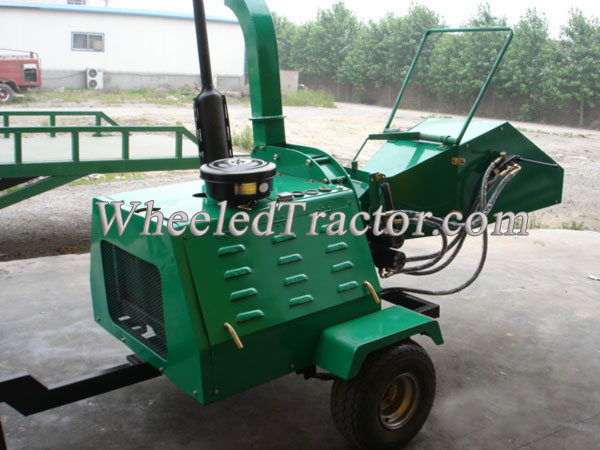

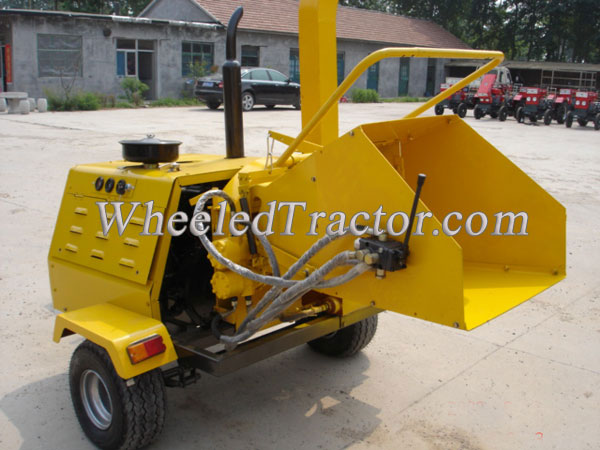

WC-30DH Wood Chipper
WC-30DH Wood Chipper self-power dual hydraulic,stop-reverse-forward function
online service
| Item | DH18 | DH22 | DH30 |
| Max. dia. of feeding | 8'' | 8'' | 8'' |
| Diesel engine model | Changchai 1115 (18hp, single cylinder) | Changchai L24M (22hp, single cylinder) | Changchai 390Q with CE Certificate (30hp, 3 cylinders) |
| Flywheel diameter | 600mm | 600mm | 600mm |
| Flywheel turning speed | 1025rpm | 1025rpm | 1025rpm |
| Feeding system | Reduction Box Feeding (4mm/s) only forward function | Hydraulic Feeding, Adjustable Speed stop-reverse-forward function | Hydraulic Feeding, Adjustable Speed stop-reverse-forward function |
| No.of blades | 2 blades flywheel. | 2 blades flywheel. | 2 blades flywheel. |
| Sawdust measurement | thickness <4mm | thickness <4mm | thickness <4mm |
| Feeding outlet rotation angle | 360° | 360° | 360° |
| Tyre size | 155-65R13, tubeless tire | 155-65R13, tubeless tire | 155-65R13, tubeless tire |
| Hydraulic oil tank | 16L | 16L | 26L |
| Working efficiency | 7~8m3/h | 7~8m3/h | 8~9m3/h |
| Weight | 1250 lbs. | 1300 lbs. | 1350 lbs. |
| Packing size | 1500×1400×1320 | 1500×1400×1320 | 1750×1450×1350 |
