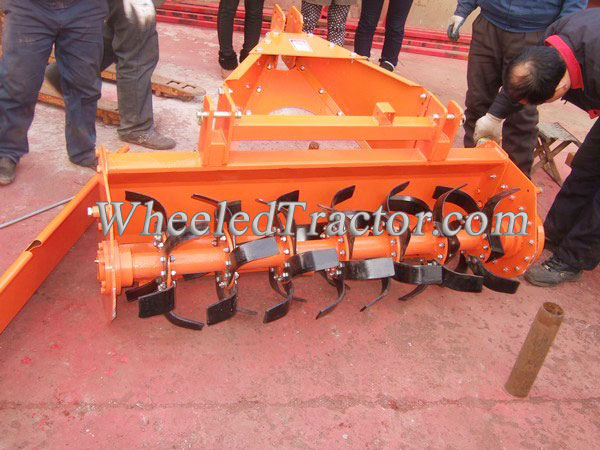

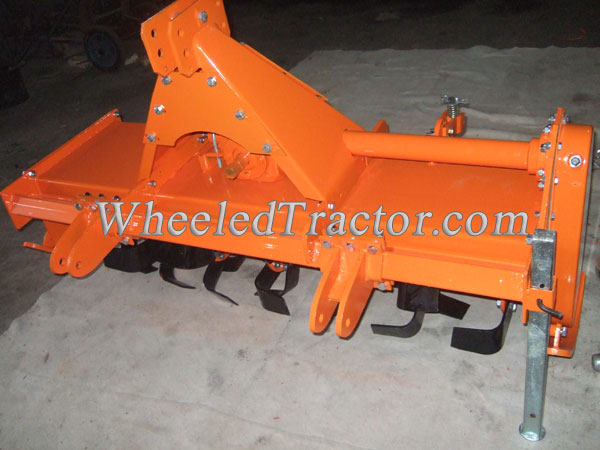

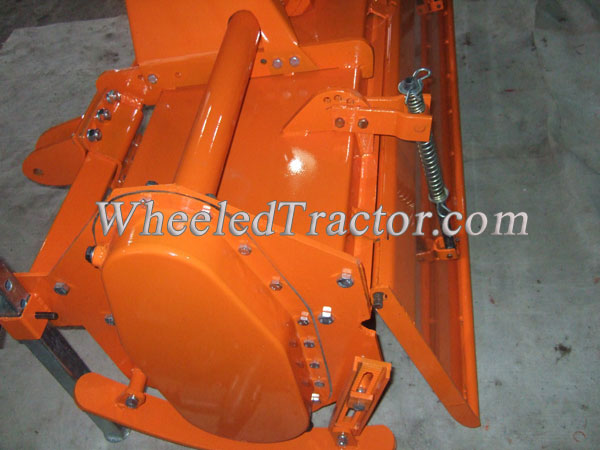

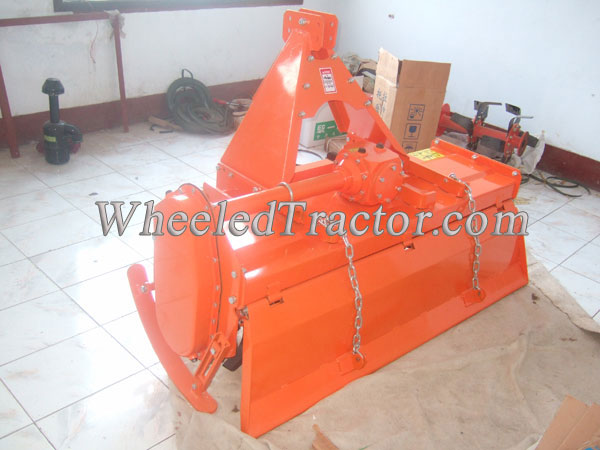

Rotary Cultivator
Rotary Cultivator,Rotavators Tiller are available with advanced technologies and innovative designs which provide great performance. The rotavator can be self-propelled and driven forward on wheels.
online service
Rotary Cultivator
| Model | IGN-90 | IGN-100 | IGN-105 | IGN-125 |
| Dimensions(L*W*H) | 1100x800x700mm | 1200x800x700mm | 1250x800x700mm | 1450x800x700mm |
| Structure weight | 250kg | 260kg | 265kg | 285kg |
| Tilling width | 895mm | 995mm | 1045mm | 1245mm |
| Tilling depth | 120mm | 120mm | 120mm | 120mm |
| Working efficiency | 1500-2500 mm/h | 1700-2600 mm/h | 1800-2600 mm/h | 2000-2900 mm/h |
| PTO turnnng speed | 540r/min | 540r/min | 540r/min | 540r/min |
| PTO spline | 6x8x700mm | 6x8x700mm | 6x8x700mm | 6x8x700mm |
| Number of blade | 20 | 24 | 24 | 30 |
| Power required | 16-20hp | 18-22hp | 20-28hp | 25-30hp |
