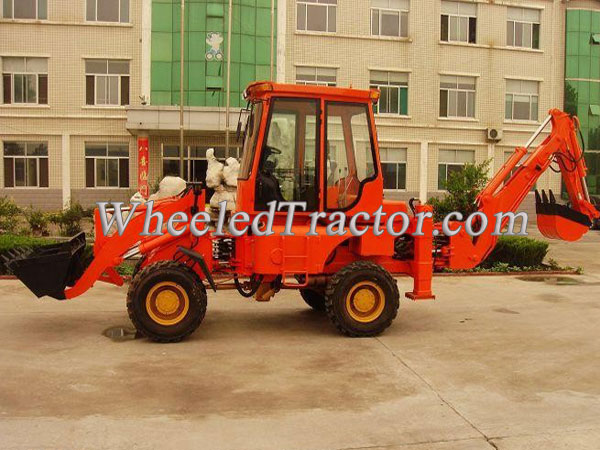

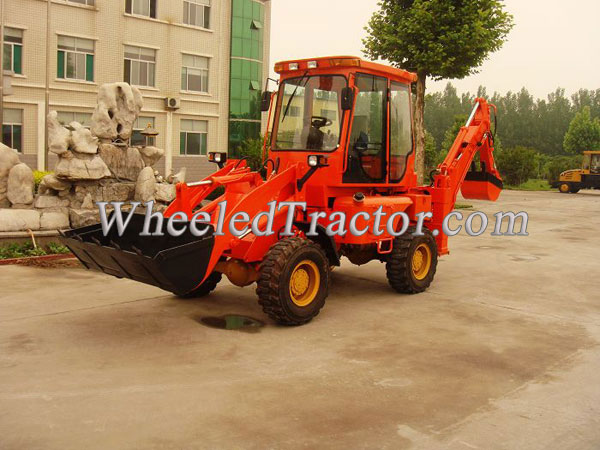

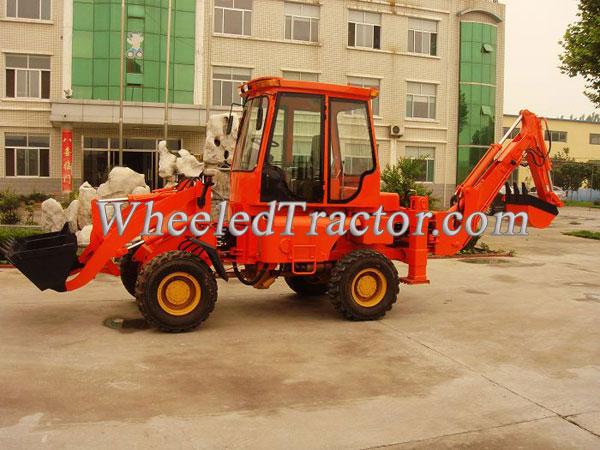

WZ15-10 Backhoe Loader
WZ15-10 Backhoe Loader,EXCAVATOR PART, LOADER PART,supply you with first class products and first after-sale service at competitive prices.
online service
15-10Backhoe loader
Performance Characteristics:
1, Enlarged operator cabin, with secure glass, is capacious and bright some.
2, Working table, water temperature, oil temperature, current, work timing are all insight.
3, Famous brand hydraulic components are adopted, tow gear oil pump work together, the power is driving and loading and dumping can change freely.
4, Adjustable seat, convenient and comfortable to use.
5, Rear and front body, with smell rotary radius, hydraulic steering comfortable and convenient to operate.
6, Hydraulic traction, the moving arm can leveled skid and expand digging range.
7, Completely have the all function of minitype digging machines.
8, Ascendant performance of complete appliance, with extraordinary operation effifiency.
9, With which many kinds of optional components can be matched to meet requirements of different users.
Performance Characteristics:
1, Enlarged operator cabin, with secure glass, is capacious and bright some.
2, Working table, water temperature, oil temperature, current, work timing are all insight.
3, Famous brand hydraulic components are adopted, tow gear oil pump work together, the power is driving and loading and dumping can change freely.
4, Adjustable seat, convenient and comfortable to use.
5, Rear and front body, with smell rotary radius, hydraulic steering comfortable and convenient to operate.
6, Hydraulic traction, the moving arm can leveled skid and expand digging range.
7, Completely have the all function of minitype digging machines.
8, Ascendant performance of complete appliance, with extraordinary operation effifiency.
9, With which many kinds of optional components can be matched to meet requirements of different users.
| EXCAVATOR PART |
MAX.DIGGING DEPTH MAX.DINGGING HEIGHT MAX.DIGGING RADIUS MAX.DUMPING HEIGHT BUCKET CAPACITY WORKING EFFICIENCY WORKING TIMES MAX. HAULING FORCE MAX. SWING ANGLE OF BOOM |
2100mm 4000mm 4500mm 3000mm 0.2m3 20-40m3/h 3-5Times/min 23kn 180° |
| LOADER PART |
MAX.DUMPING HEIGHT MIN. ROTARY RADIUS MAX.DUMPING DISTANCE RATED LOADING MASS LIFTING TIME OF MOVABLE ARM LIFTING TIME OF MOVABLE ARM SUMMATIONAL TIME MAX. BREAKOUT FORCE |
2400mm 3500mm 900mm 1000kg 4.5s 3s 10s 20kn |
| ENGINE |
MODEL RATED POWER RATED REVOLUTION |
YC2105 27kw 2200r/min |
|
SPECIFICATION |
WORKING PRESSURE MAX.FLUX TOTAL WEIGHT GRADEABILITY WALKING SPEED DISTANCE BETWEEN AXLES MIN. GROUND CLEARANCE OVERALL DIMENSION(L×W×H) |
20MPa 25ml/r/25ml/r 3700kg 25% ≤20km/h 1725mm 230mm 5400×1620×2650mm |
