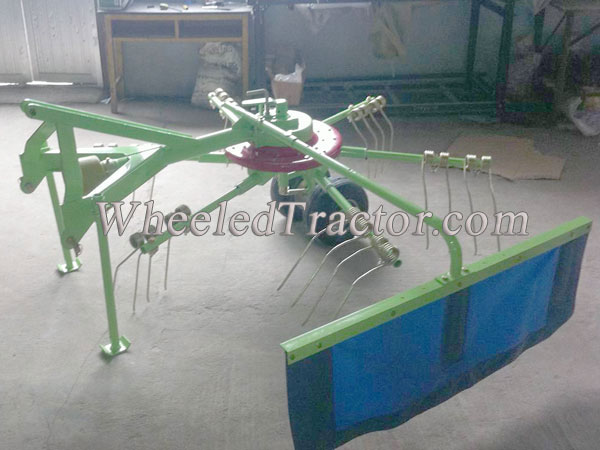

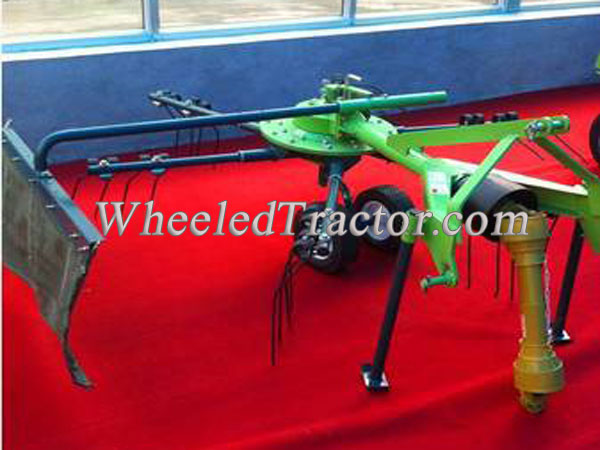

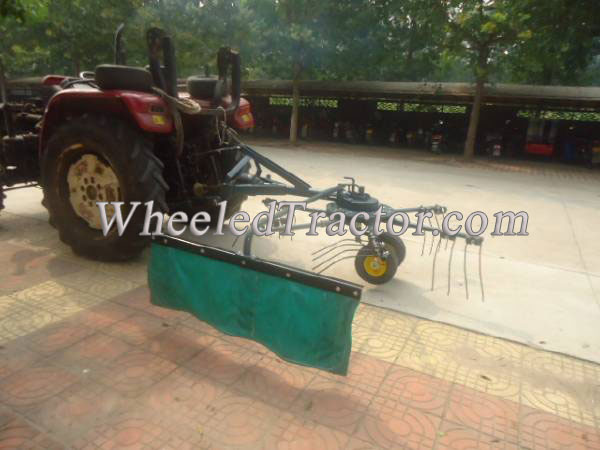

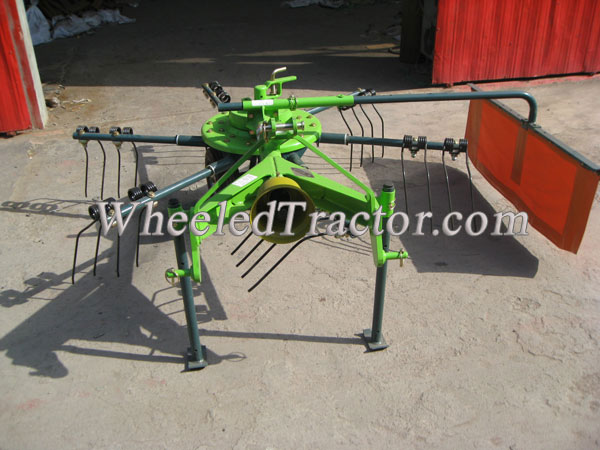

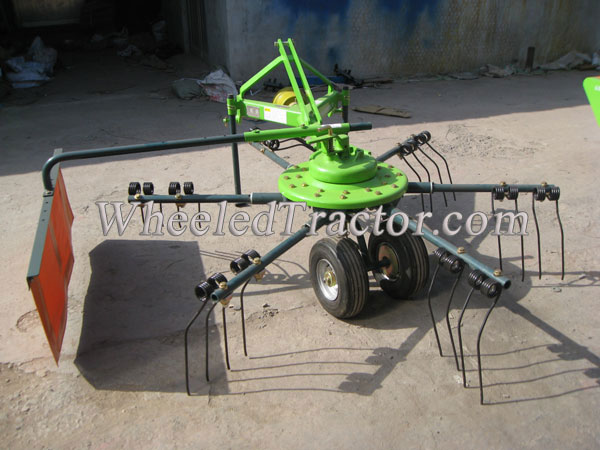

3PT Hay Rake Tedder
Hay rake and tedder,Hay Rake Tedder, Tractor Hay Rake / Hay Tedder PTO 540r/min 2500mm hay rake width 1600mm tedding width 12 reeds, for rice, wheat straw,grass
online service
hay tedder rake, hay rake for farming, hay tedder for tractor
Details:
As a tedder:
1). Spread, swath or windrow so crops dry down faster,
2). Tailor your tedding operations to a variety of crops and conditions by varying PTO speed or tine position,
3). Fixed-tine position provides aggressive tedding and is ideal for use in fresh-cut material or crops where leaf and shatter losses are not a concern
4).Cam-operated tine position allows the tine bar rollers to follow the cam track to lift and release crop gently and save valuable leaves
As a rake:
1). Precise raking action produces fluffy, uniform windrows that dry evenly
2). Self-centering wheels provide extral maneuverability by allowing you to make sharp turns and back up easily without lifting the machine.
Strong, rugged frame provides years of dependable performance.
Rotor tilt can be adjusted easily with a convenient crank for maximum crop handling.
Torque limiting clutch on the heavy-duty PTO provides overload protection. PTO speed is variable, so you can match ground speed can PTO speed to crop and field conditions.
Three wheel-height position let you adjust for different crops, conditions and operations.
Vertical tines pick up fewer stones and less debris than horizontal tines for cleaner tedding and raking.
Cam track adjustment allows you to quickly tailor tedding/raking action to varying crops and conditions without tools.
Convenient jack simplifies three-point hitch arrangements.
Details:
As a tedder:
1). Spread, swath or windrow so crops dry down faster,
2). Tailor your tedding operations to a variety of crops and conditions by varying PTO speed or tine position,
3). Fixed-tine position provides aggressive tedding and is ideal for use in fresh-cut material or crops where leaf and shatter losses are not a concern
4).Cam-operated tine position allows the tine bar rollers to follow the cam track to lift and release crop gently and save valuable leaves
As a rake:
1). Precise raking action produces fluffy, uniform windrows that dry evenly
2). Self-centering wheels provide extral maneuverability by allowing you to make sharp turns and back up easily without lifting the machine.
Strong, rugged frame provides years of dependable performance.
Rotor tilt can be adjusted easily with a convenient crank for maximum crop handling.
Torque limiting clutch on the heavy-duty PTO provides overload protection. PTO speed is variable, so you can match ground speed can PTO speed to crop and field conditions.
Three wheel-height position let you adjust for different crops, conditions and operations.
Vertical tines pick up fewer stones and less debris than horizontal tines for cleaner tedding and raking.
Cam track adjustment allows you to quickly tailor tedding/raking action to varying crops and conditions without tools.
Convenient jack simplifies three-point hitch arrangements.
| Model No. | HT2500 |
|
Raking width Tedding width |
250cm 160cm |
|
Exterior size L×W×H |
Working 210×250×95cm Transporting 210×195×95cm |
| Weight | 160kg |
| Reed quantity | 12 |
| Operation efficency | 4-8km/h |
| Matched power | 18-50hp tractor |
| Matching PTO rotating speed | 540r/m |
