3PT Post Hole Digger

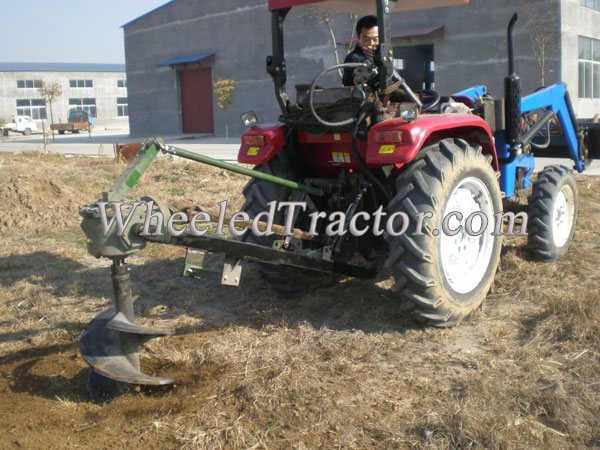

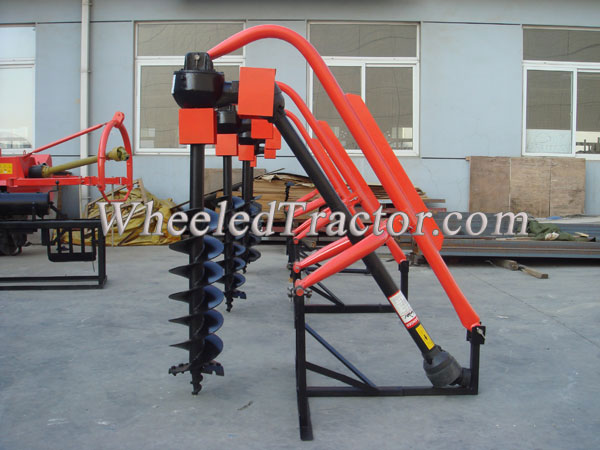

The Post Hole Digger is mounted by tractor PTO driven implements to drill holes Hole Digger is used to make pits for plantaition of mango, coconut, teak, pomegranate,lemon,phyllanthus embolic
online service
The Tractor auger are simple to operate ,safe and reliable,efficient,and easy to maintenance.They are suitable for the different situations,such as sand,hard land,etc.They are the ideal machines for afforestation.They match 20-80 hp tractors.
Specifications for digger:
Specifications for digger:
| Model | 1WX-230 | 1WX-300 | 1WX-400 | 1WX-500 | 1WX-600 | 1WX-700 | 1WX-800 | 1WX-1000 |
| Overall Dimensions (L×W×H) (cm) | 230×80×165 | 230×80×165 | 240×80×165 | 245×100×165 | ||||
| Drill diameter (mm) | 230 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
| Working depth (cm) | 40-70 | 50-80 | 50-100 | |||||
| Matched Power (kw) | 14.7-29.4 | 22-53 | 36.7-55 | |||||
| Weight (kg) | 150 | 165 | 230 | 240 | 251 | 260 | 270 | 300 |
| PTO Speed (rpm) | 540 | 2.18:1(when PTO speed is 540rpms), 3:1(when PTO speed is 720 or 760rpms). | ||||||
| Gearbox rate | 2.92:1 | |||||||
| Linkage | 3-point lift with no tractor suspension | |||||||
| Efficiency (caves/hour) | 60-150 | 60-120 | 30-60 | |||||
| Transport clearance | >30cm | |||||||
