3PT Backhoe

Model	LW-6	LW-7	LW-8	LW-9	LW-10	LW-12
Tractor Horsepower Required(HP)	16-35	25-45	30-75	40-100	70-125	80-150
Digging Depth(mm)	1850	2150	2640	2900	3000	3750
Digging Depth Flat Bottom2″	1600	2000	2500	2760	2800	3600
Digging Height(mm)	2500	3400	3510	3900	4000	4300
Unloading Height(mm)	1400	1760	2000	2362	2337	2700
Transport Height(mm)	1733	1878	1952	2413	2540	2770
Reach From Center Line of Digging Radius(mm)	2800	3360	3930	3977	3886	4300
Bucket Digging Force(kg)	1300	1200	1600	1900	2600	2700
Dipperstick Digging Force(kg)	790	950	1000	1270	1720	1900
Bucket Rotation Degree	160°	160°	160°	150°	150°	172°
Swing Arc Degree	180°	180°	180°	180°	180°	180°
Operating Pressure(Mpa)	16	16	16	16	16	16
Bucket Width(mm)	250	300	400	450	500	550
Bucket Capacity(cbm)	0.03	0.036	0.048	0.054	0.06	0.66

1.PRODUCT INFO.

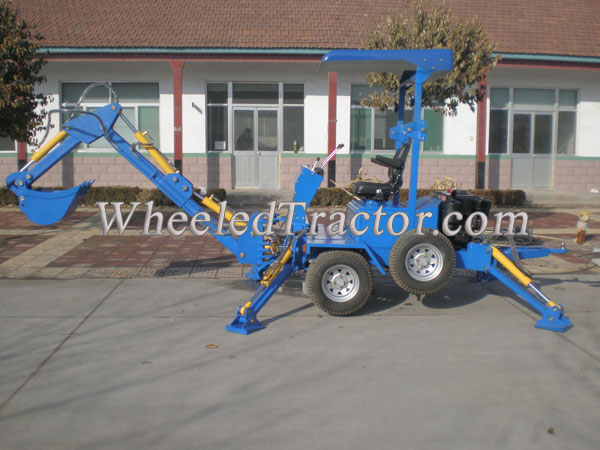

SELF-POWER,TOWABLE,PTO HYDRAULIC FARM TRACTOR BACKHOE

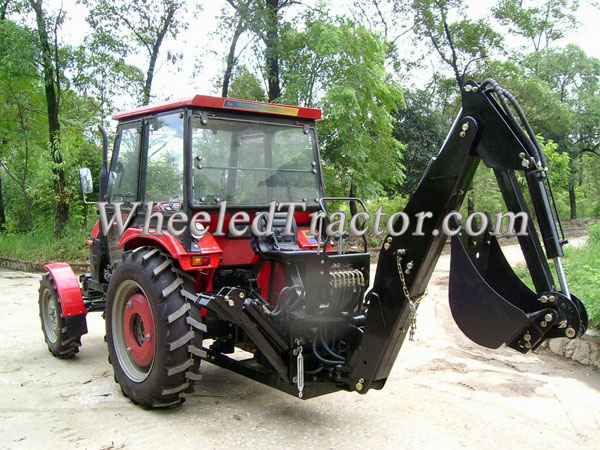

3 point linkage backhoe
self hydraulic unit
comfortable hand shank
Protection chain
Oil scale,help you add oil clearly.
easy to use,durable.
self oil tank with Filter assembly and pump
light transportation,Hydraulic transmission
independent Gear pump and hydraulic system.
3Points linkage to quick release or attach.

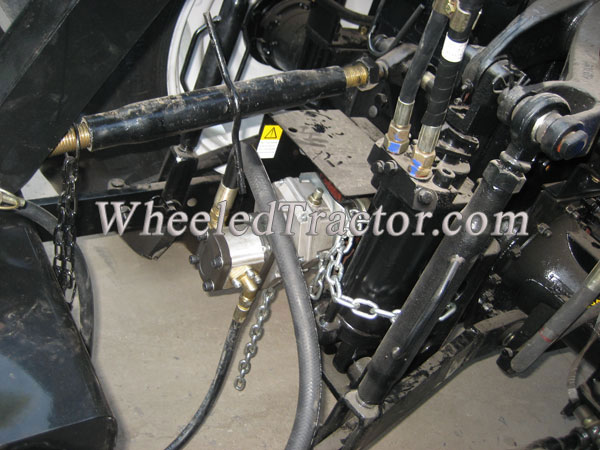

The backhoe can be powered by your tractor's hydraulic system or by a PTO drive with gear pump.
Standard Mechanical Parts
PTO and towable
CE certificate
Easy Operation
Simple Maintenance
Feature:
1.use hydraulic transmission
2.compact structure
3.flexibility and convenient operation
4.quick mounting and dismounting
5.Share hydraulic oil with tractor
6.highly standardized hydraulic elements
7.meets multi-working demands with different sizes buckets
Backhoe are very common and can be used for a wide variety of tasks: construction, small demolitions, light transportation,etc.
Backhoe are very common and can be used for a wide variety of tasks: construction, small demolitions, light transportation of building materials, powering building equipment, digging holes/excavating, landscaping, breaking asphalt, and paving roads.
Ditching in farms and grazing lands, digging pool,
Cleaning waterways
Hydraulic transmission
1).It’s used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
2).Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.
3).To better accomplish different kinds of work, buckets of different sizes can be selected and mounted on it.
