3ZT Spring Cultivator
3ZT Heavy Duty Spring Tooth Cultivator, mainly used for weeding and loosen the soil, this type of intertillage machine is suitable for all kinds of soil condition
online service
Product Description:
Technique parameter:

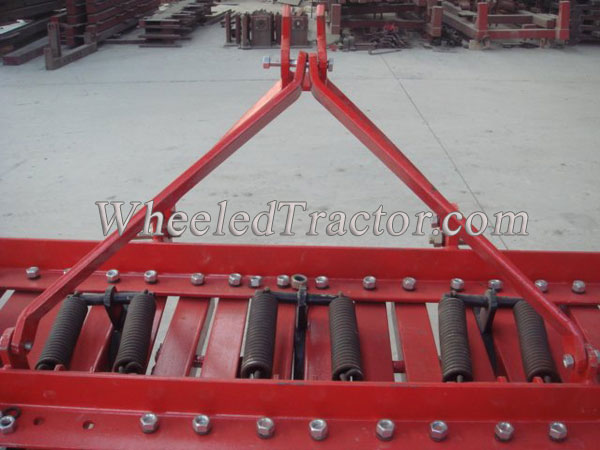

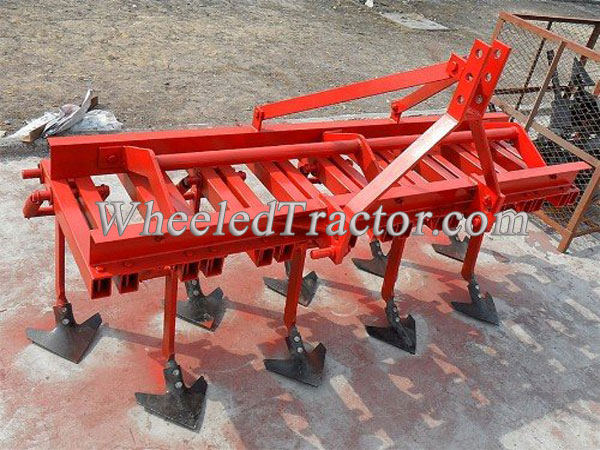

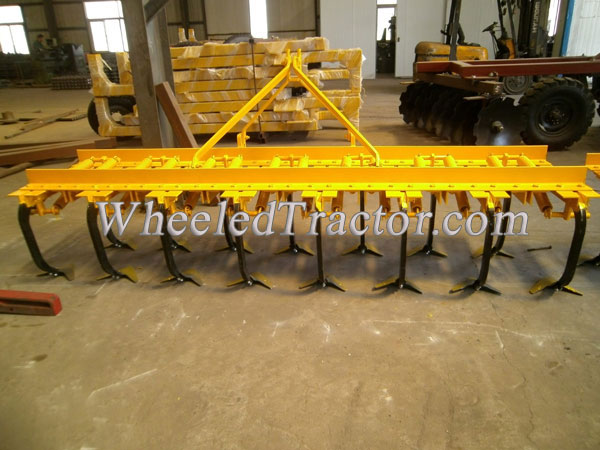

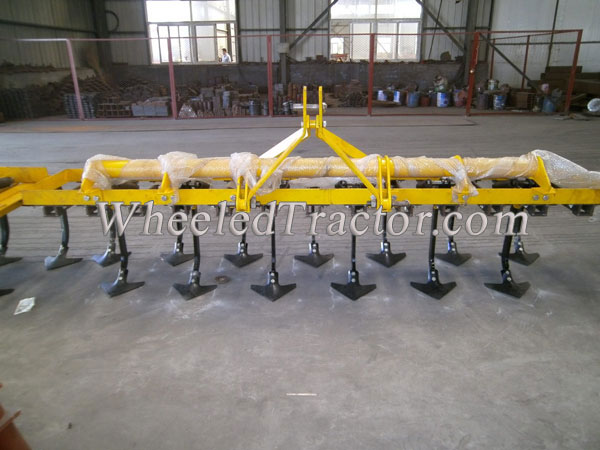

3ZT Spring Cultivator
Heavy Duty Spring Tooth Cultivator
This type of Heavy Duty Spring tooth Cultivator mainly used for weeding and loosen the soil, this type of intertillage machine is suitable for all kinds of soil condition. The main frame of Heavy Duty Spring tooth Cultivator is made out of heavy duty reinforced flats. Strong main frame of two rolled channels with channel braces resists bending strains and ensures that the Spring tynes are accurately spaced for precision work and correctly angled for good operation.
Heavy Duty Spring Tooth Cultivator
This type of Heavy Duty Spring tooth Cultivator mainly used for weeding and loosen the soil, this type of intertillage machine is suitable for all kinds of soil condition. The main frame of Heavy Duty Spring tooth Cultivator is made out of heavy duty reinforced flats. Strong main frame of two rolled channels with channel braces resists bending strains and ensures that the Spring tynes are accurately spaced for precision work and correctly angled for good operation.

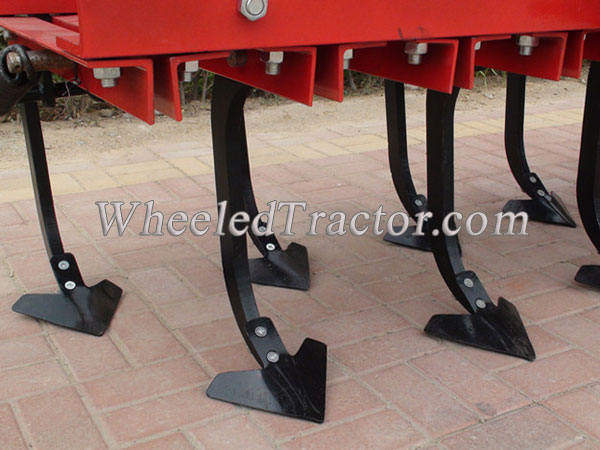

• This type of Spring tooth Cultivator have shovel and tyne for choice.
• The shovel (or the tyne) already has been heat treated, hard enough to afford the collision while engage with the rocks, boulders and other obstructions.
• Use the spring can make the tyne lift up automaticly while knocked on the rock, stone.
• The shovel (or the tyne) already has been heat treated, hard enough to afford the collision while engage with the rocks, boulders and other obstructions.
• Use the spring can make the tyne lift up automaticly while knocked on the rock, stone.
| Model | Unit | 3ZT-1.0 | 3ZT-1.4 | 3ZT-1.8 | 3ZT-2.2 |
| Working width | M | 1.0 | 1.4 | 1.8 | 2.2 |
| No. of tines | 5 | 7 | 9 | 11 | |
| Working depth | Mm | 100~200 | |||
| Total weight | Kg | 260 | 300 | 350 | 420 |
| Matched power | Hp | 25 | 30~40 | 40~50 | 50~70 |
