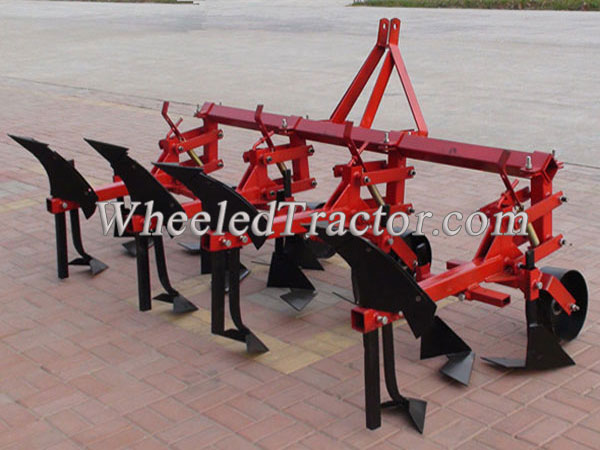

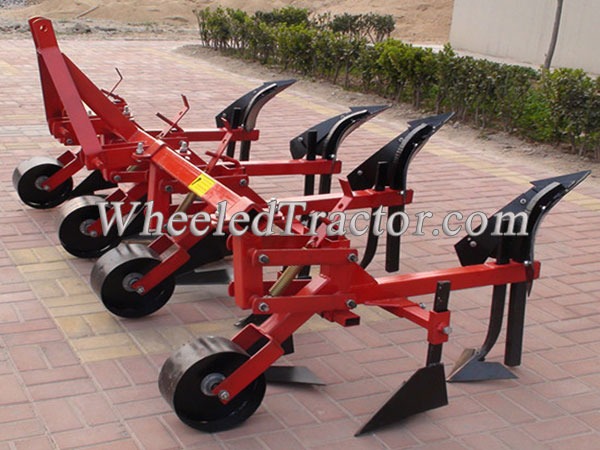

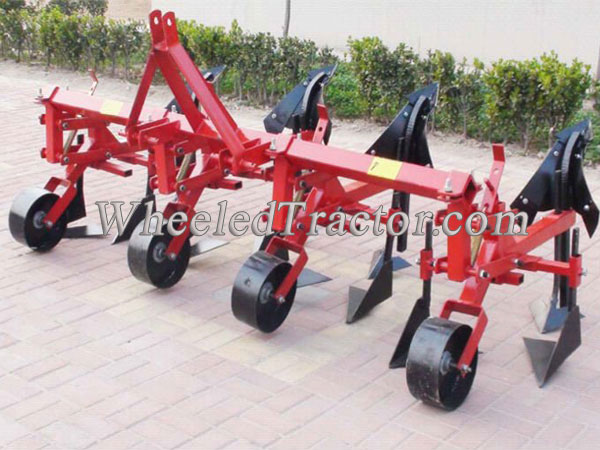

3ZY Tyne Ridging Cultivator
3ZY Tyne Ridging Cultivator,tyne ridger and tyne ridging machine This type of tractor cultivator andridger used for ridge the plot, till the spacings before and initially after the crops spring up
online service
Product Description:
Technique parameter:
This type of tractor cultivator andridger used for ridge the plot, till the spacings before and initially after the crops spring up, The ridger with a harrow or a dressing unit operates on all mineral soils containing minimum rocks, with absolute humidity 13-20% for the layer 0…12 cm. The cultivator/ ridger shaped ridges with better physical properties on medium textured soil; however both drawn cultivators/ ridgers had greater work-rates, and also needed less energy to cultivate a unit of area.
• Heat treated, high carbon spring steel tines
• Multifunction, can achieve cultivation and ridge shaping at the same time
• The distance between rows are adjustable
• Multifunction, can achieve cultivation and ridge shaping at the same time
• The distance between rows are adjustable
| Model | unit | 3ZY-1.2 | 3ZY-2.0 | 3ZY-2.8 |
| Working width | mm | 1200 | 2000 | 2800 |
| No.of legs | 2 | 3 | 4 | |
| Working depth | mm | 100-240 | ||
| Row spacing | mm | 500~800 | ||
| Total weight | kg | 150 | 210 | 290 |
| Matched power | hp | 25 | 40 | 50~60 |
