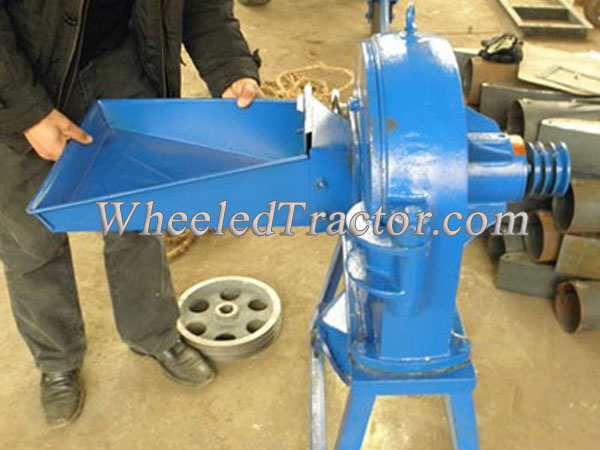

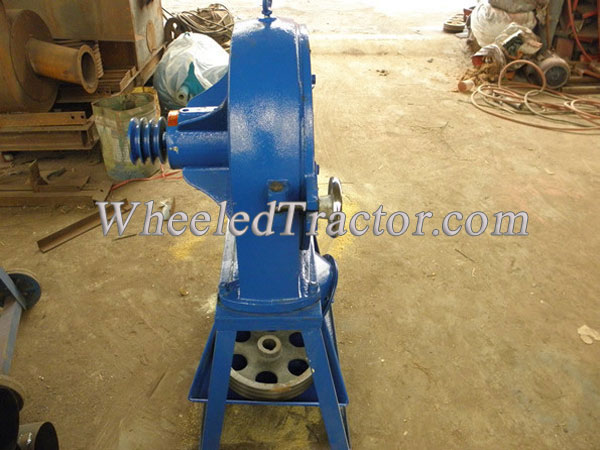

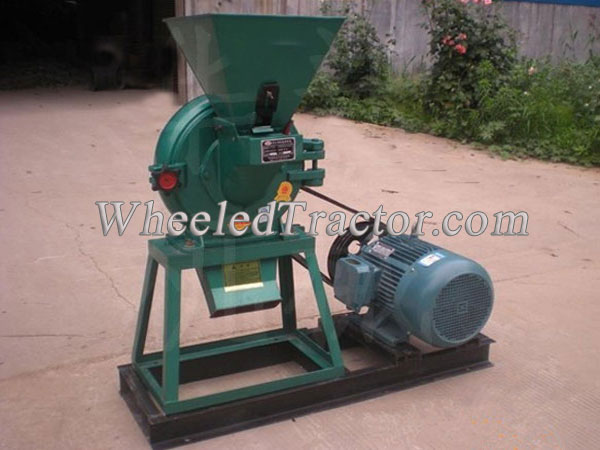

9FC Grinding Mill

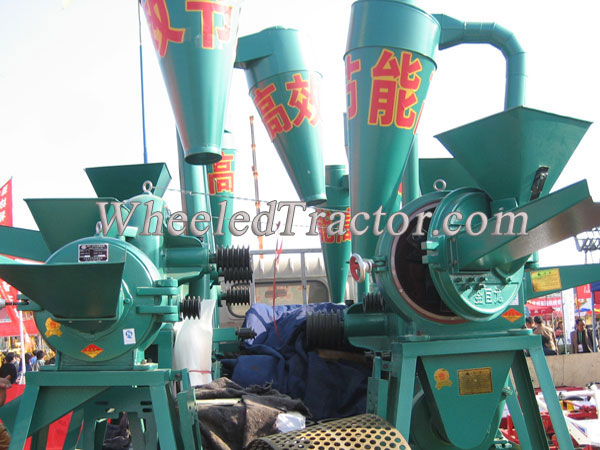

1. We are a professional and client friendly Disk corn flour milling machine manufacturer. We cater to all scales of businesses from household to industrial sized operations. Among our current range of products is the 9FC series of Disk corn flour milling machine. This new and improved type of Disk Corn flour milling machine increases output and decreases labor substantially. The 9FC series disk Corn flour milling machine feature energy saving, environmentally friendly, high efficiency, and is the ideal option for you. 2. The 9FC series of corn flour milling machine include the models as follows: 9FC-230; 9FC-320; 9FC-360; 9FC-500; 9FC-600; 9FC-800, among which the 9FC-360; 9FC-500; 9FC-600 and 9FC-800 models have air blower; automatic feeding and unloading equipment. 3.The 9FC series corn flour milling machine is based on the older FFC series of Disk corn flour milling machine which include the FFC 160, FFC 270 and FFC 330 models. 4. Our disk corn flour milling machine can be used to pulverize corn, soy bean, sorghum, dried sweet potato slices, and soy bean cake. 5. Our Disk corn flour milling machine is widely used in the chemical, paper making and medical industry. 6. 9FC series of corn flour milling machine can be used to crush fresh fruit, sweet potato and soaked soy beans which have high moisture content
7. Technical Data of 9FC Series of Disk Corn Flour Milling Machine



Type Data	9FC-500	9FC-600	9FC800
Motor	22KW(3 phase)	30KW(3phase)	45KW(3 phase)
Diesel	30HP	40HP	60HP
Weight	460kg	520kg	980kg
Rotational speed of main shaft	3300r/min	3000r/min	2180r/min
Outer diameter of the Rotator	500mm	600mm	800mm
Long oblate gear T	5pcs	5pcs	8pcs
Short oblate gear T	5pcs	5pcs	8pcs
Knuckle gear	10pcs	10pcs	16pcs
