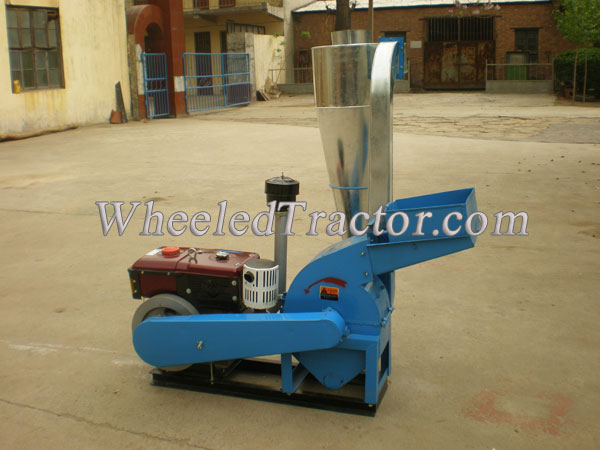

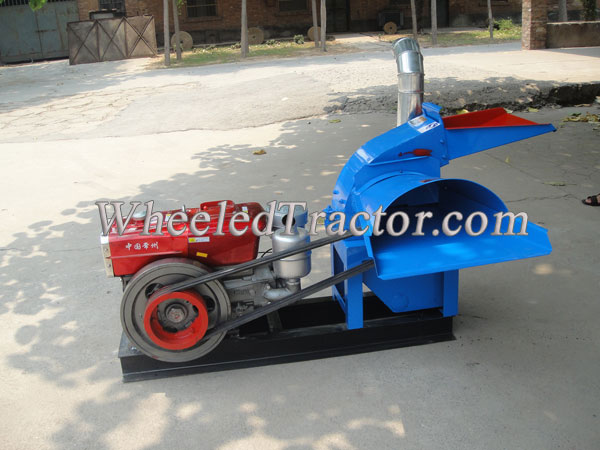

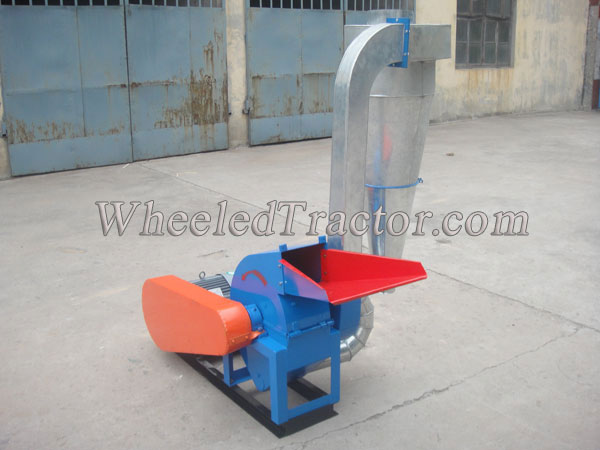

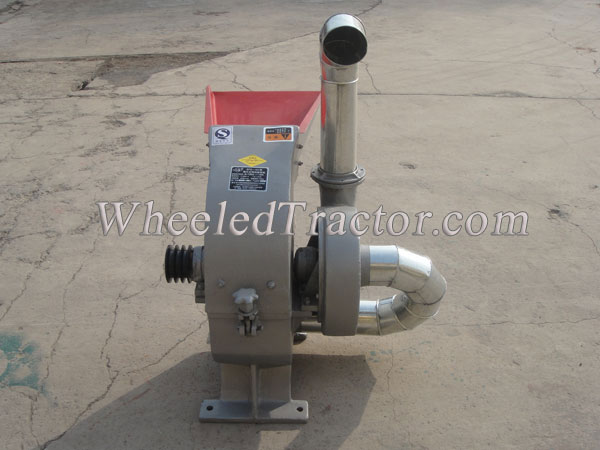

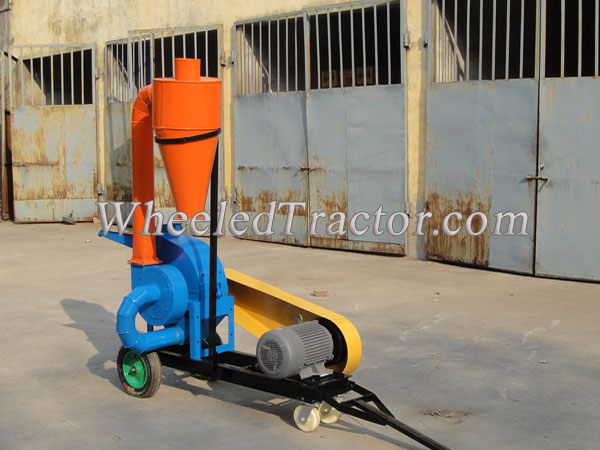

9FQ Hammer Mill
9FQ Hammer Mill,An ideal machine for preparing sawdust or small partical animal feed material
online service
9FQ hammer mill is a small crush machine; The knife can cut and crush the raw material with 1mm diameter. For the communication of wood chips, stick and straw, stalk into the pieces according to the requirement. It is also suitable for grinding the grains, such as corn, wheat, and straw, etc. Also for wood, paring, etc with different hammer.
Application:
1. Hammer Mill is suitable for milling raw material like tree branch, cotton stalk, corn stalk, wheat straw etc) with size less than 50mm(diameter).
2. It is suitable for grinding the grains, such as corn, wheat, and straw, etc. Also for wood, paring, etc with different hammer.
Notes:
1. The machine could be derived by the diesel engine, motor, tractor, etc.
2. The kinds of machine could be matched with mounting plate for motor or diesel engine, and collector, pls informs us when ordering.
3. Pls tell us the size of your raw material, capacity and motor voltage when ordering.
Application:
1. Hammer Mill is suitable for milling raw material like tree branch, cotton stalk, corn stalk, wheat straw etc) with size less than 50mm(diameter).
2. It is suitable for grinding the grains, such as corn, wheat, and straw, etc. Also for wood, paring, etc with different hammer.
Notes:
1. The machine could be derived by the diesel engine, motor, tractor, etc.
2. The kinds of machine could be matched with mounting plate for motor or diesel engine, and collector, pls informs us when ordering.
3. Pls tell us the size of your raw material, capacity and motor voltage when ordering.
| Model | Motor Power (petrol/diesel engine) |
Diameter of feeding materials (mm) |
Capacity (kg/h) |
Dimension (mm) | Weight (kg) |
| 9FQ-320 | 4Kw (7.5HP) | <=Φ20 | 200-350 | 980×750×870 | 135 |
| 9FQ-360 | 5.5Kw (10HP) | <=Φ20 | 300-450 | 1130×750×1070 | 180 |
| 9FQ-400 | 7.5(15HP) | <=Φ50 | 400-600 | 1360x900x1270 | 260 |
| 9FQ-420 | 11/15Kw (18HP/22HP) | <=Φ50 | 500-800 | 1460x900x1470 | 380 |
| 9FQ-500-40 |
18.5/22Kw (30hp) |
<=Φ50 | 800-1000 | 1660x1200x1770 | 560 |
| 9FQ500-50 |
30KW (45hp) |
<=Φ50 | 1000-1200 | 1660*1200*1770 | 680 |
