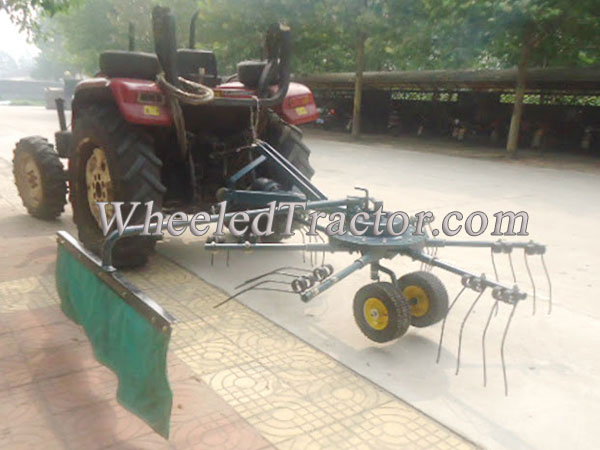

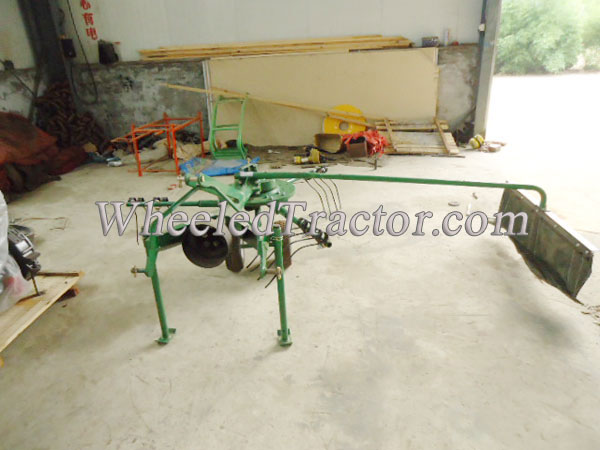

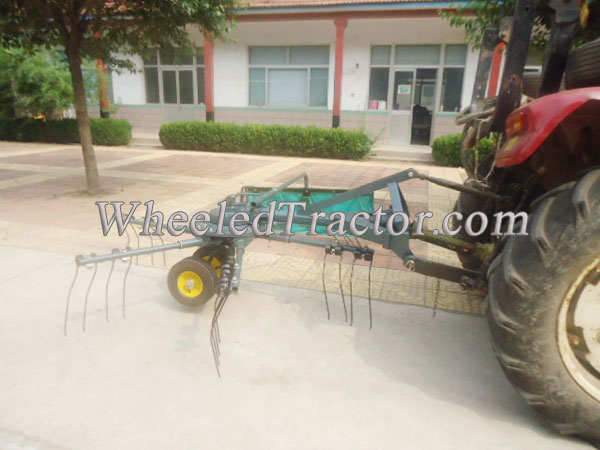

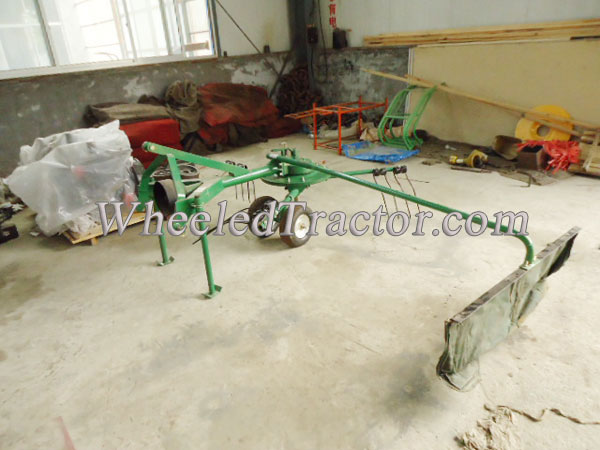

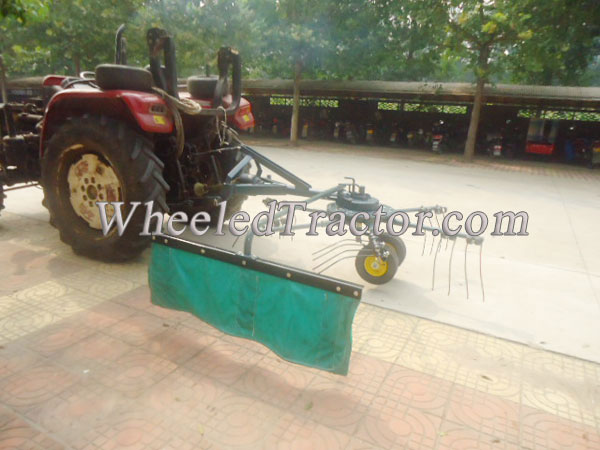

HR-2500 Hay Rake Tedder
HR-2500 Hay Rake Tedder, Hay rake and tedder machine:1)PTO driven,suitable for 18-50hp. 2)Working as rake or tedder
online service
Hay rake and tedder
As a rake:
1) Precise raking action produces fluffy, uniform windrows that dry evenly.
2) Self-centering wheels provide extral maneuverability by allowing you to make sharp turns and back up easily without lifting the machine.
As a tedder:
1) Spread, swath or windrow so crops dry down faster.
2) Tailor your tedding operations to a variety of crops and conditions by varying PTO speed or tine position.
3) Fixed-tine position provides aggressive tedding and is ideal for use in fresh-cut material or crops where leaf and shatter losses are not a concern.
4) Cam-operated tine position allows the tine bar rollers to follow the cam track to lift and release crop gently and save valuable leaves.
Specifications for Hay rake and tedder:
As a rake:
1) Precise raking action produces fluffy, uniform windrows that dry evenly.
2) Self-centering wheels provide extral maneuverability by allowing you to make sharp turns and back up easily without lifting the machine.
As a tedder:
1) Spread, swath or windrow so crops dry down faster.
2) Tailor your tedding operations to a variety of crops and conditions by varying PTO speed or tine position.
3) Fixed-tine position provides aggressive tedding and is ideal for use in fresh-cut material or crops where leaf and shatter losses are not a concern.
4) Cam-operated tine position allows the tine bar rollers to follow the cam track to lift and release crop gently and save valuable leaves.
Specifications for Hay rake and tedder:
| Model | RXHR-2500 |
| Raking width | 2500mm |
| Tedding width | 1600mm |
| Dementings | 2100x2500x950mm |
| Weight | 160kgs |
| Tines number | 12 |
| Working speed | 4-8km/h |
| Matched power | 18-50hp |
| PTO RPM | 540r/m |
