LW-10 Backhoe
LW-10 Backhoe,Our 3-point hitch backhoe have gotten CE certificate already. Our three point backhoe is a powerful digging machine that will fit on virtually any tractor. If your tractor has a 3 point hitch, this backhoe will work. The backhoe can be p
online service
It's widely used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in constructiion and building roads.
Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick mounting and dis-mouting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and services.

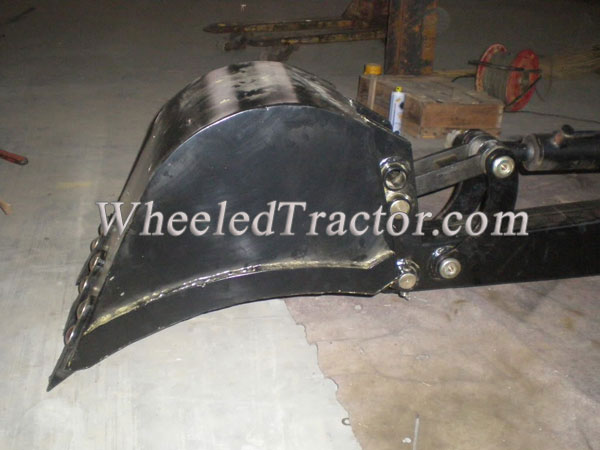

To better accomplish different kinds of work, backets of different sizes can be selected and mounted on it.
Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick mounting and dis-mouting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and services.
To better accomplish different kinds of work, backets of different sizes can be selected and mounted on it.
| Model | LW-6 | LW-7 | LW-8 | |||||||
| Max. digging depth (mm) | 1850 | 2150 | 2640 | |||||||
| Max. digging radius (mm) | 2800 | 3360 | 3930 | |||||||
| Max. digging height (mm) | 2500 | 3400 | 3510 | |||||||
| Loading height (mm) | 1400 | 1760 | 2000 | |||||||
| Max. digging depth (2ft) Flat bottom (mm) | 1600 | 2000 | 2500 | |||||||
| Digging Length(mm) | 1610 | 1410 | 1450 | |||||||
| Knighthead expanding width | 1800 | 1830 | 1820 | |||||||
| Swing Arc (°) | 140 | 160 | 140 | |||||||
| Bucket rofation (°) | 160 | 160 | 160 | |||||||
| Size (m3)Standard attached | 0.036 | 0.045 | 0.054 | |||||||
| Cap. (mm)Standard attached | 300 | 400 | 450 | |||||||
| Overall dimension | 2300×1860×890 | 2360×1960×1270 | 2500×1960×1400 | |||||||
| Weight(kg) | 470 | 540 | 600 | |||||||
| Valve standard press | 16Mpa | 16Mpa | 16Mpa | |||||||
| Valve over loading protect press | 7±1MPa | 7±1MPa | 7±1MPa | |||||||
| Valve input flux area | 12~28L/mm | 12~28L/mm | 12~28L/mm | |||||||
| Connect height (mm) | 410 | 460 | 460 | |||||||
| Connect width (mm) | 399 | H′=530 | H′=530 | |||||||
| Up connect pinhole Dia. | φ22 | φ22 | φ22 | |||||||
| Down Connect pinhole Dia. | φ19 | φ19 | φ19 | |||||||
| Bucket standard | Cap. (mm) | 250 | 300 | 400 | 450 | 500 | 550 | |||
| Size (m3) | 0.030 | 0.036 | 0.045 | 0.054 | 0.060 | 0.066 | ||||
