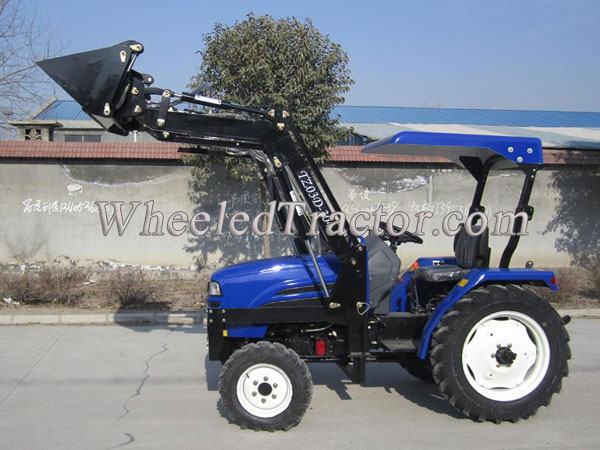

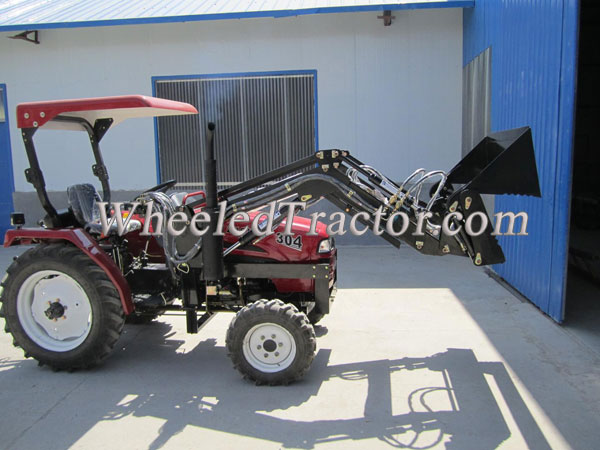

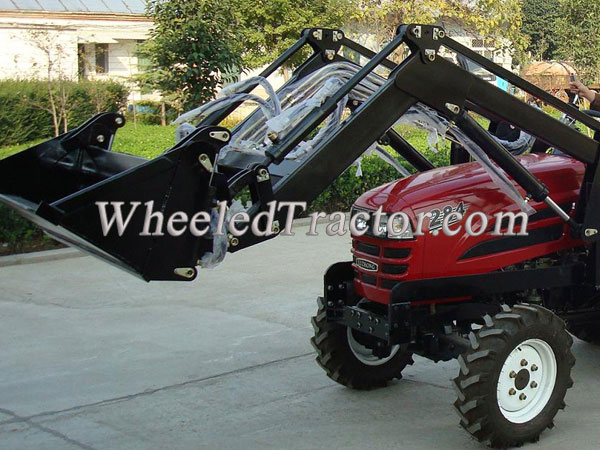

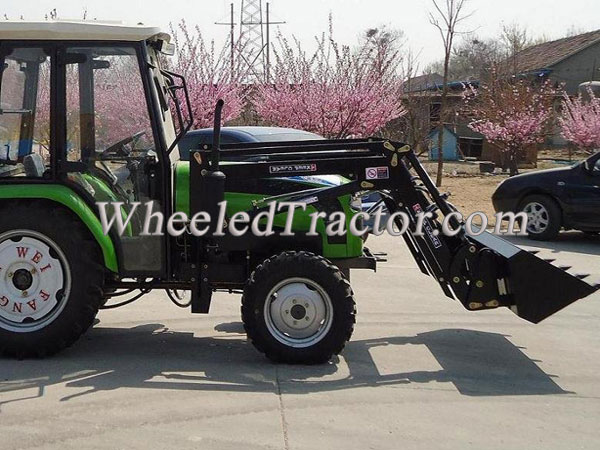

TZ03D Tractor Loader

All of our front loader are exclusively designed for Foton, YTO and other famous Chinese brand Tractors. Combined with true frame integration, gives your tractor/loader package with features that include: Balanced front axle load, Tyre compatibility, fender clearance, Unmatched serviceability, Load and tractor stability, Reduced frame and structure stress, Ergonomic controls, Unmatched visibility.

Our tracotr front end loaders are high quality, reasonably priced. These are great tractor front end loaders.

Loader Model			TZ03D	TZ04D	TZ06D	TZ08D	TZ10D	TZ12D
Matching Tractor		hp	20-40	30-55	45-60	55-75	70-100	90-140
Max. Lifting at Implement Pivot Pin	H	mm	2550	2740	3010	3400	3710	3970
Dumping Height	A	mm	1840	2100	2370	2480	2720	3000
Overloading Height	L	mm	2370	2560	2830	3220	3490	3770
Dumping Distance	W	mm	500	600	640	690	740	900
Ground Clearance at Arm Pivot Pin	B	mm	1200	1360	1500	1630	1780	1930
Max.Tip in Angle	X	degree*	48	48	48	54	54	54
Tip out Angle	Z	degree*	58	58	58	58	58	58
Crowd angle at lowered lift arm	V	degree*	135	135	135	135	145	145
Digging Depth	S	mm	100	100	120	140	180	200
Lifting Force at Implement Pivot Pin	Q1	Kg	2224	2144	2150	1997	2308	2403
	Q2	Kg	1474	1321	1286	1187	1452	1690
Bucket Modle(Standard)			04DP125	04DP140	06DP150	08DP160	08DP170	12DP200
Bucket Width		mm	1250	1400	1500	1600	1700	2000
Bucket Capacity		m 3	0.18	0.21	0.35	0.4	0.44	0.7
Rated Lifting Capacity		Kg	300	400	600	800	1000	1200
