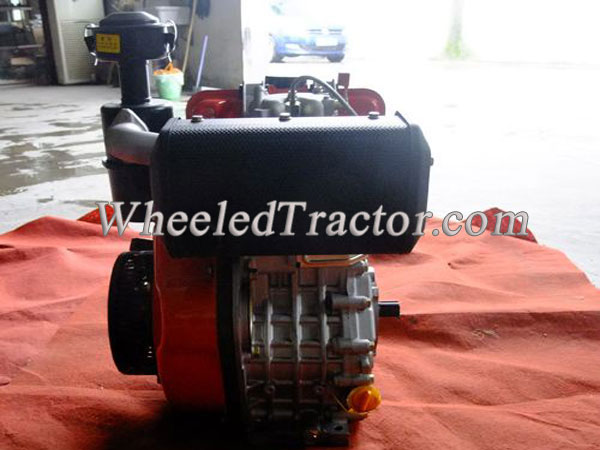

Air Cooled Diesel Engine
Air Cooled Diesel Engine,air cooled single cylinder 14hp diesel engine great power for water pumps/generators
online service
we only to produce diesel engine, diesel generator, diesel water pump and diesel tiller, because the focus, we are more professional.
In addition, we have a variety of factories working close with us and we are able to provide excellent price and
quality for our customers, also the other similar products as customers' requirement.
company promises: good quality products, reasonable prices, short production time and satisfactory after-sales service. OEM order is available and we are willing to work with importers, distributors, sales agents & retailers worldwide.
In addition, we have a variety of factories working close with us and we are able to provide excellent price and
quality for our customers, also the other similar products as customers' requirement.
company promises: good quality products, reasonable prices, short production time and satisfactory after-sales service. OEM order is available and we are willing to work with importers, distributors, sales agents & retailers worldwide.
| WISEPRO GROUP——THE ART OF POWER | ||||||||||
| SPECIFICATION/AIR-COOLED DIESEL ENGINE | ||||||||||
| Model | 186F | 186FS | 186FA | 188FA | 188FB | |||||
| Type | Single cylinder/vertical/4-stroke/air-cooled/diesel engine | |||||||||
| Bore x stroke(mm) | 86x70 | 86x70 | 86x72 | 88x72 | 88x75 | |||||
| Displacement(ml) | 406 | 406 | 418 | 438 | 456 | |||||
| Compression ratio | 19:1 | 20:1 | ||||||||
| Rated speed (rpm) | 3000 | 3600 | 1500 | 1800 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Rated output (kw) | 5.7 | 6.3 | 5.7 | 6.3 | 5.9 | 6.5 | 6.5 | 7.3 | 6.7 | 7.5 |
| Max. output (kw) | 6.3 | 6.8 | 6.3 | 6.8 | 6.5 | 7.0 | 7.3 | 7.9 | 7.5 | 8.2 |
| Fuel consumption(g/kw/h) | <270 | |||||||||
| Starting system | Manual or Electric start | |||||||||
| Fuel tank capacity (L) | 5.5 | 5.5 | ||||||||
| Oil capacity (L) | 1.65 | 1.7 | ||||||||
| Fuel type | 0#(Summer)/-10#(Winter)/Diesel | |||||||||
| Oil type | 10W/30SAE | |||||||||
| Continuous running time (h) | 2.5 | 2.0 | 2.5 | 2.0 | 2.5 | 2.0 | 2.5 | 2.0 | 2.5 | 2.0 |
| Dimension LxWxH (mm) | 510x475x565 | |||||||||
| N.W./G.W. (kg) | 48/53 | |||||||||
