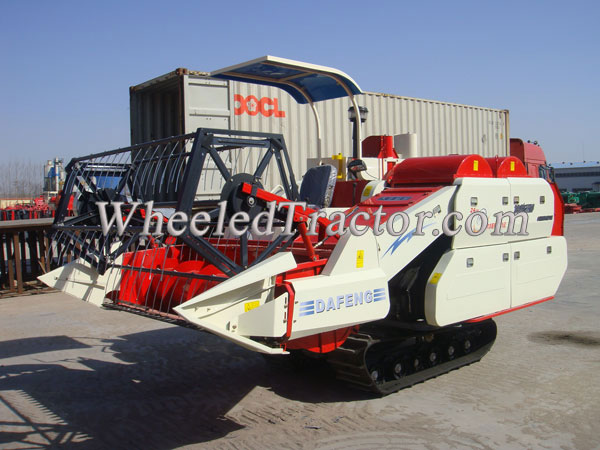

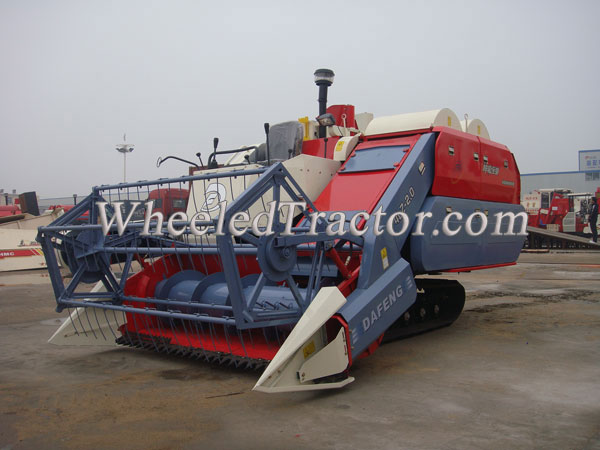

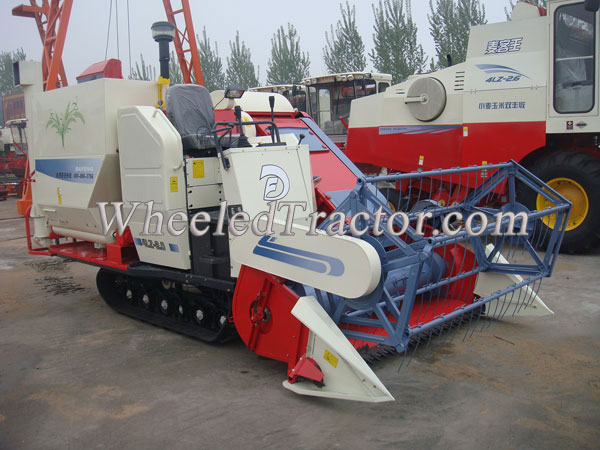

Rice Combine Harvester
Rice Combine Harvester,1. 75 HP diesel engine, 2 meters cutting width, Auto Transmission, high efficiency.Lower ground pressure, better for passing in paddy field
online service
A. Rice & Wheat Combine Harvesters
Type: 4LZ-2.0D
Time of delivery: 7days
Type of Payment: T/T or L/C
B. Main Features:
1. 75 HP diesel engine, 2 meters cutting width, Auto Transmission, high efficiency.
2.Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss.
3.Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower noise and vibration.
4.Lower ground pressure, better for passing in paddy field.
5.Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
C. Technical Specifications:
Type: 4LZ-2.0D
Time of delivery: 7days
Type of Payment: T/T or L/C
B. Main Features:
1. 75 HP diesel engine, 2 meters cutting width, Auto Transmission, high efficiency.
2.Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss.
3.Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower noise and vibration.
4.Lower ground pressure, better for passing in paddy field.
5.Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
C. Technical Specifications:
| Model | 4LZ-2.0D |
| Working Efficiency | 0.53 ~ 0.80Ha./H (1.32 ~ 2.00Acre/H) |
| Overall Dimensions (L x W x H) | 4700×2300×2700 mm |
| Weight | 2400 kg |
| Engine | Diesel Engine |
| Model | 498BZT |
| Rated Power | 75 HP (55kw) / 2400 rpm |
| Fuel consumption per hectare | ≤30 Kg/Ha. |
| Chassis | |
| Rubber Track | 400x90x48 |
| Transmission | HST F:3 / R:3 |
| Ground Pressure | ≤18 Kpa |
| Min. Ground Clearance | 240 mm |
| Header | |
| Cutting Width | 2000 mm |
| Type of Lifting | Hydraulic |
| Lifting of Reel | Hydraulic |
| Steering | Hydraulic |
| Conveyor | Chain rack tooth type |
| Threshing Cylinder | Tangential Flow + Axial Flow, Dual Spike-tooth type |
| Cleaning | Fan (front blowing + rear suction)+Sieving+re-thresher |
| Paddy fill Method | Grain Tank & Bag |
| Grain Tank | 1.1 CBM/ (500-550 kg) |
| Total Loss | |
| Rice | ≤3% |
| Wheat | ≤1.2% |
| Breakage | ≤1.5% |
| Impurity | ≤2.0% |
