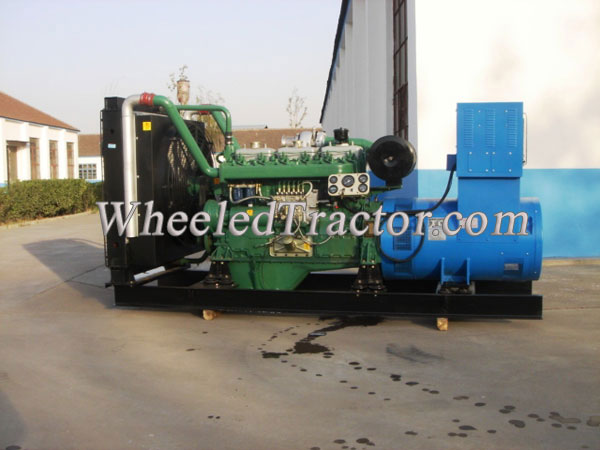

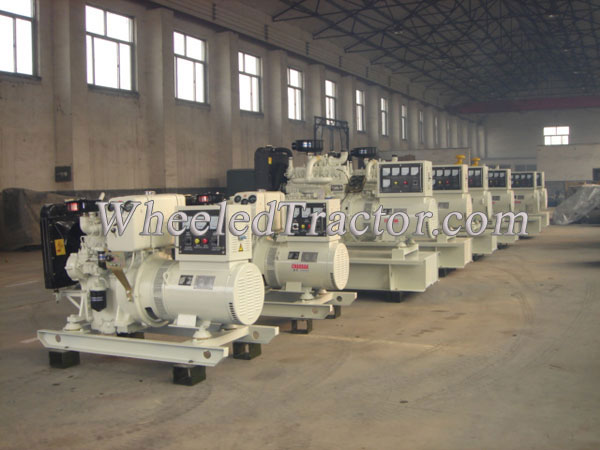

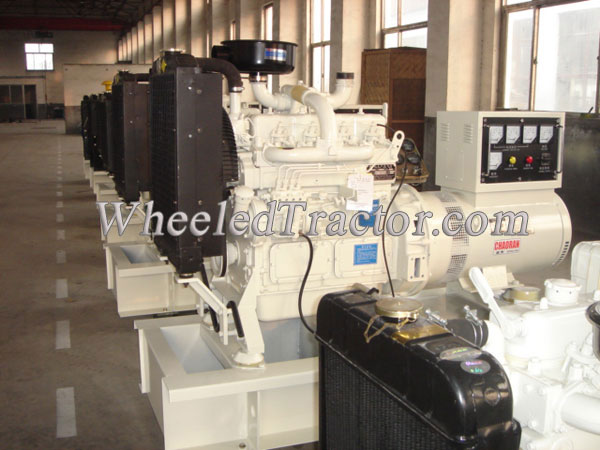

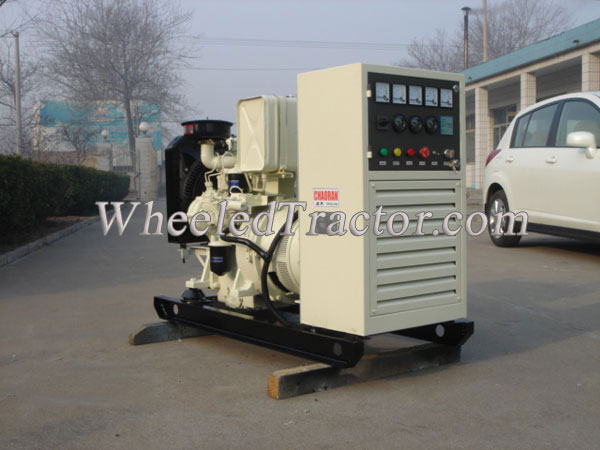

Three-phase Power Generator Set
Three-phase Power Generator Set,Diesel Power Generator Set Monitoring and Protection: Over / Low Speed ,Start / Stop Failure ,Low Lubricating Oil Pressure 4.High Coolant Temperature ,Charging Failure 6.Emergency Stop 7.Public Alarm 8.Over Voltage, Lon
online service
Three-phase Power Generator Set
cummins diesel power generator set TECHNICAL DATA
cummins diesel power generator set TECHNICAL DATA
| DIESEL ENGINE MODEL | 295D | 2100D | 495D |
| Engine Characters |
Vertical, Water cooling, 4Strokes, Swirl chamber type |
Vertical, Water cooling, 4Strokes, Swirl chamber type |
water-cooled,inline, 4 stokes,direct injection, wet cylinder liner |
| Constant Output (kW/kVA) | 13.2/16.5 | 15/18.75 | 26.5/33.12 |
| Standby Output (kW/kVA) | 14.52/18.15 | 16.5/20.6 | 29.15/36.43 |
| Aspiration | Natual Aspirated | Natual Aspirated | Natual Aspirated |
| Bore(mm) X Stroke(mm) | 95X115 | 100X115 | 95X115 |
| Cubic Capacity (Liters) | 1.63 | 1.81 | 3.26 |
| Piston Speed (m/s) | 6.35 | 6.35 | 6.35 |
| Compression Ratio | 20:1 | 20:1 | 19:1 |
| Machine Governor | ≤5% | ≤5% | ≤5% |
| Electronic Governor | ≤1% | ≤1% | ≤1% |
| Acostic Pressure(dBA) | 105 | 105 | 105 |
| Exhaust Temperature | ≤540 | ≤540 | ≤540 |
| Lube Capacity | 6.5 | 6.5 | 9 |
| Cooling System Volume | 7.7 | 7.7 | 11 |
| Area of Heat Dissipation | 6.3M2 | 7M2 | 14M2 |
| Combustion Air Flow | 1.41m3/min | 1.41m3/min | 2.68m3/min |
| Exhaust Gas Flow | 5.95m3/min | 5.95m3/min | 7.44m3/min |
| Rating Fuel Consumption (L/h) | 3.23 | 3.87 | 5.16 |
| ALTERNATOR MODEL | TFW2-10 | TFW2-12 | TFW2-15 |
| Continuous Output (kW/kVA) | 10/12.5 | 12/15 | 16/20 |
| Power Efficiency | 81.5% | 81.5% | 82% |
| Voltage Regulation | ≤±3% | ≤±3% | ≤±3% |
| Excitation Type | Brushless | Brushless | Brushless |
| Insulation Class | H | H | H |
| DIMENSIONS AND WEIGHTS | |||
| MODEL OPEN&SOUNPROOF | GST10R/S | GST12R/S | GST15R/S |
| Approximate Length | 1650/2000mm | 1650/2000mm | 1850/2400mm |
| Approximate Width | 700/1000mm | 700/1000mm | 770/1150mm |
| Approximate Height | 1100/1450mm | 1100/1450mm | 1550/1700mm |
| Approximate Gross Weight | 650/990kg | 670/1050kg | 780/1330kg |
