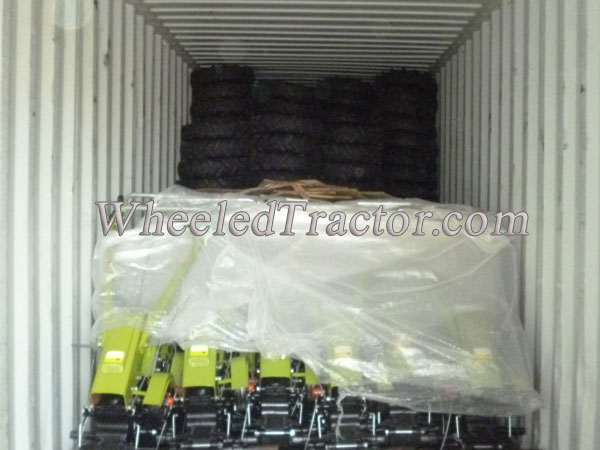

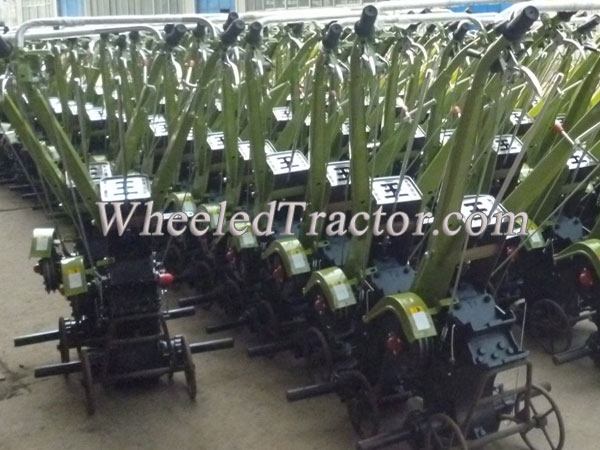

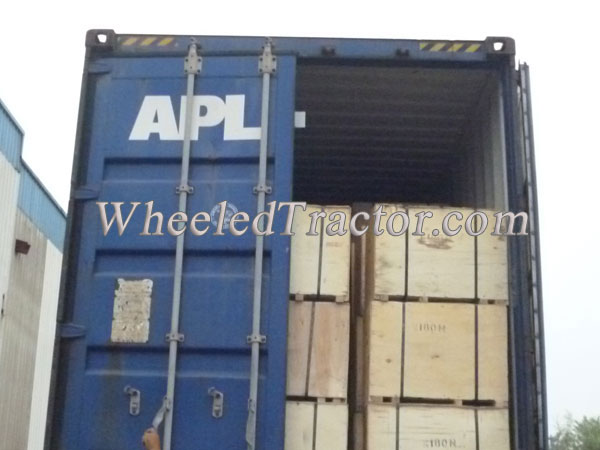

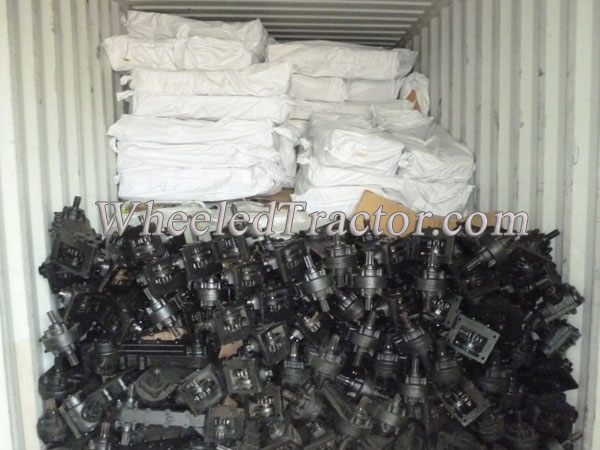

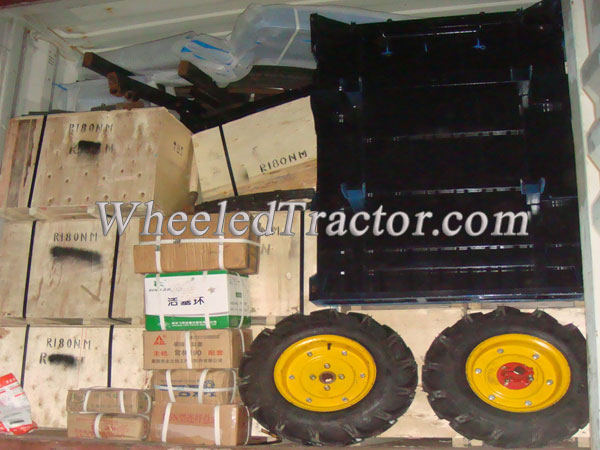

Walking Tractor Export
Walk-behind Tractors for exporting.Diesel Walk Behind Tractor,hand tractor, two wheel tractor, motoculteur, two wheel tractor, mini tiller, rotovator, cultivator
online service
1. Type: Towing and driving
2. Rated traction (n): 2000
3. Overall dimensions (mm): L*w*h 2680*960*1250
4. Distance between wheels (mm): 800, 740, 640
5. Min space from earth to face (mm): 182
6. Constructional weight (kgs): 350
7. Usage weight of tractor (kg): 435(with plough) 495 (with rotary cultivator)
8. Theoretical speed (km/h) Forward I 1.4 ii 2.5 iii 4.1 iv 5.3 v 9.4 vi15.3
Backward I 1.0 ii 3.8
9. Clutch: Double friction flat of constant combination
10. Transmission box: 12.7(1/2")chain of 64 links
11. Gear box: (3+1)*2 gear assembly type
12. Type of steering mechanism: Meshing sleeve
13. Type of brake: Cricoid inside expansion
14. Triangle belt: B1880 3
15. Capacity of lubrication (l): 5
16. Type of driving wheel: 6.00-12
17. Diesel engine: S195, s1100
Specification of changjiang 151(DF15) walking tractor
1. Type: Towing and driving
2. Rated traction (n): 2000
3. Overall dimensions (mm): L*w*h 2680*960*1250
4. Distance between wheels (mm): 800, 740, 640, 580
5. Min space from earth to face (mm): 182
6. Constructional weight (kgs): 360
7. Usage weight of tractor (kg): 445(with plough) 505(with rotary cultivator)
8. Theoretical speed (km/h)
Forward I 1.4 ii 2.5 iii 4.1 iv 5.3 v 9.4 vi15.3
Backward I 1.0 ii 3.8
9. Clutch: Double friction flat of constant combination
10. Transmission box: 12.7(1/2")chain of 64 links
11. Gear box: (3+1)*2 gear assembly type
12. Type of steering mechanism: Meshing sleeve
13. Type of brake: Cricoid inside expansion
14. Triangle belt: B1880 3
15. Capacity of lubrication (l): 5
16. Type of driving wheel: 6.00-12
17. Diesel engine: S1100, S1105
2. Rated traction (n): 2000
3. Overall dimensions (mm): L*w*h 2680*960*1250
4. Distance between wheels (mm): 800, 740, 640
5. Min space from earth to face (mm): 182
6. Constructional weight (kgs): 350
7. Usage weight of tractor (kg): 435(with plough) 495 (with rotary cultivator)
8. Theoretical speed (km/h) Forward I 1.4 ii 2.5 iii 4.1 iv 5.3 v 9.4 vi15.3
Backward I 1.0 ii 3.8
9. Clutch: Double friction flat of constant combination
10. Transmission box: 12.7(1/2")chain of 64 links
11. Gear box: (3+1)*2 gear assembly type
12. Type of steering mechanism: Meshing sleeve
13. Type of brake: Cricoid inside expansion
14. Triangle belt: B1880 3
15. Capacity of lubrication (l): 5
16. Type of driving wheel: 6.00-12
17. Diesel engine: S195, s1100
Specification of changjiang 151(DF15) walking tractor
1. Type: Towing and driving
2. Rated traction (n): 2000
3. Overall dimensions (mm): L*w*h 2680*960*1250
4. Distance between wheels (mm): 800, 740, 640, 580
5. Min space from earth to face (mm): 182
6. Constructional weight (kgs): 360
7. Usage weight of tractor (kg): 445(with plough) 505(with rotary cultivator)
8. Theoretical speed (km/h)
Forward I 1.4 ii 2.5 iii 4.1 iv 5.3 v 9.4 vi15.3
Backward I 1.0 ii 3.8
9. Clutch: Double friction flat of constant combination
10. Transmission box: 12.7(1/2")chain of 64 links
11. Gear box: (3+1)*2 gear assembly type
12. Type of steering mechanism: Meshing sleeve
13. Type of brake: Cricoid inside expansion
14. Triangle belt: B1880 3
15. Capacity of lubrication (l): 5
16. Type of driving wheel: 6.00-12
17. Diesel engine: S1100, S1105
