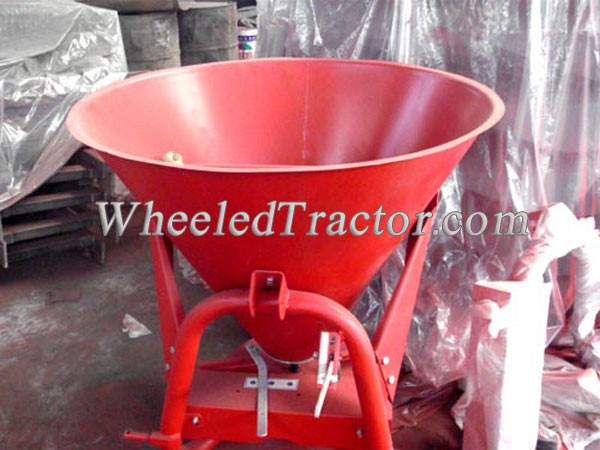

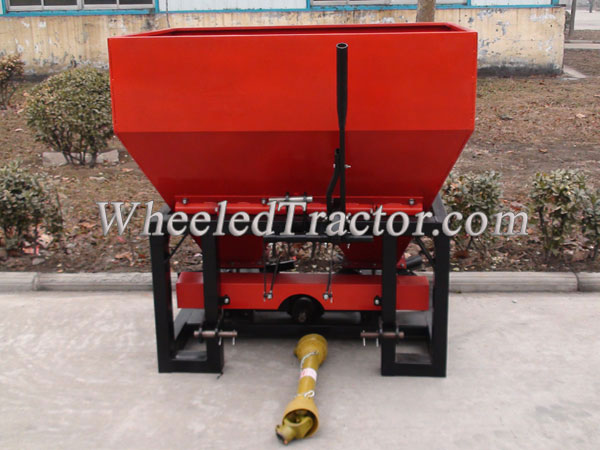

Fertilizer Broadcaster
Fertilizer Broadcaster Mainly used to apply base fertilizer before tillage, sow seeds after tillage and spread seeds and manure in grassland and ranch 2. It has advantages of compact structure
online service
1. Mainly used to apply base fertilizer before tillage, sow seeds after tillage and spread seeds and manure in grassland and ranch 2. It has advantages of compact structure, wide range of applying, high procductivity, even broadcast sowing and so on
Parameters:
| Name | Spreader | ||
| Type | CRD-600 | CRD-400 | |
|
Overall Dimensions |
Length (cm) | 115 | 115 |
| Width (cm) | 110 | 115 | |
| Height (cm) | 145 | 120 | |
| Weight (kg) | 70 | 65 | |
| Working Width (m) | 16-30 | 16-30 | |
| Matched Power (HP/KW) | 18-25/13.2-18.4 | ||
Parameters:
| Model | CDR-800L |
| Capacity | 800L |
| Total weight | 140kg |
| Max. working width | 12m |
| Max. working efficiency | 15 hectares/hour |
| Matched tractor power | 30-35hp |
| Linkage | standard three point hitched |

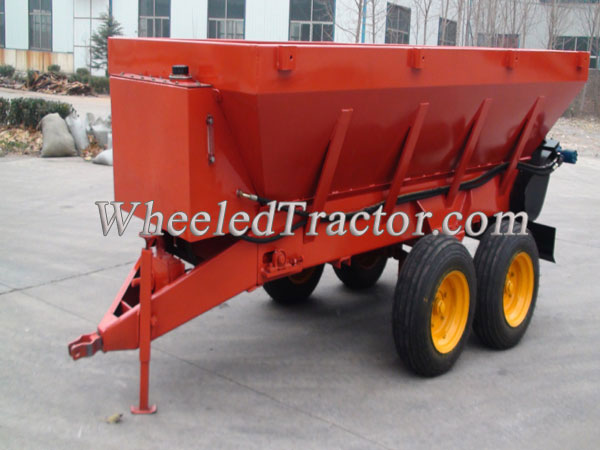

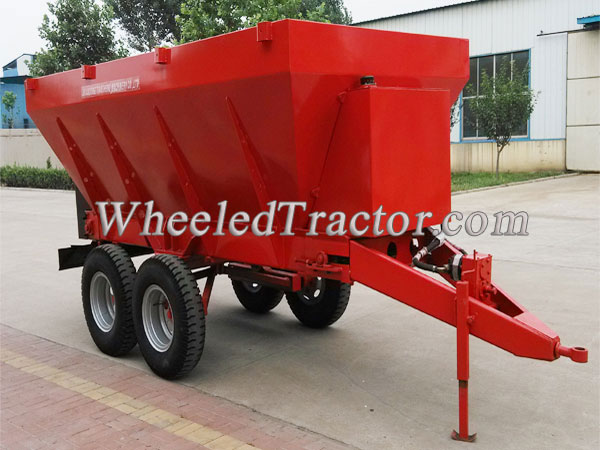

| Model | UNIT | TNN-2500 | TNN-5500 | TNN -7500 | TNN-12000 |
| Overall size L | mm | 3800 | 4700 | 4700 | 6250 |
| Overall size W | mm | 1740 | 1820 | 1900 | 2250 |
| Overall size H | mm | 1680 | 1770 | 1920 | 2370 |
| Loading capacity | M3 | 1.73 | 2.8 | 3.75 | 7.00 |
| Spreading range | m | 7-14 | 7-16 | 7-25 | 7-25 |
| Spreading width | mm | 400-800 | |||
| Standard tires | 750-16 | 750-16 | 900-16 | 125/80-18 | |
| Tractor HP required | HP | 60-65 | 70-80 | 90-100 | 90-100 |
