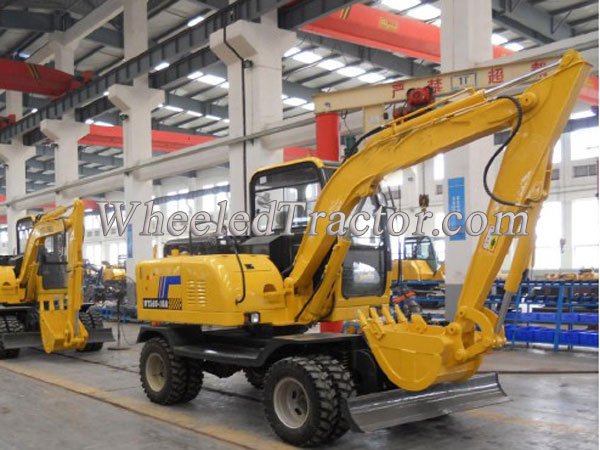

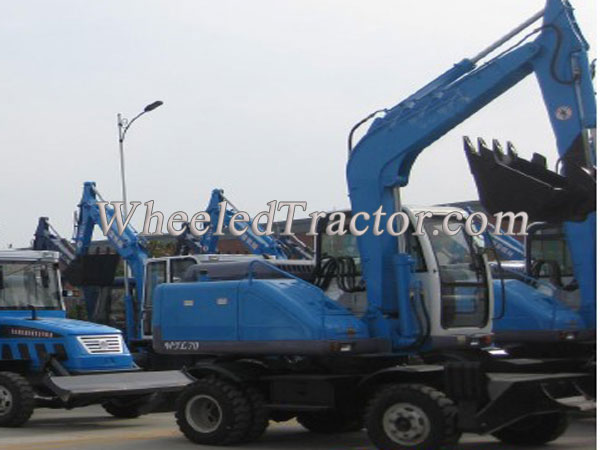

Wheel Excavator
Wheel Excavator, China Popular High Quality Hot sales Hydraulic mini wheel excavator,wheel and crawler together excavator: when working use the crawler, on the road use the wheel. New design, patent excavator
online service
Wheel Excavator
Parameter:
Performance characteristics:
Working table controled by microcomputer ,water temperature,oil temperature,current,work timing are all in sight.

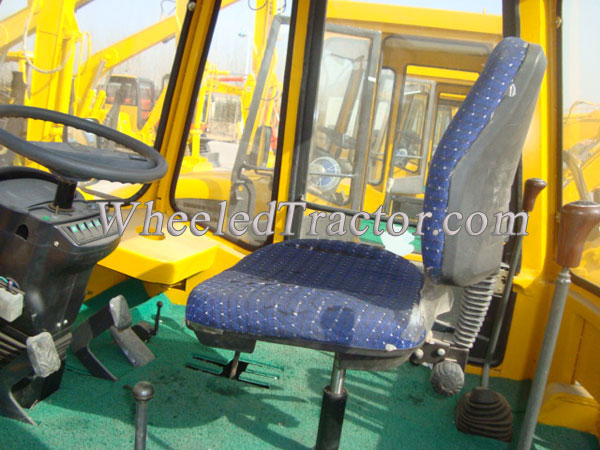

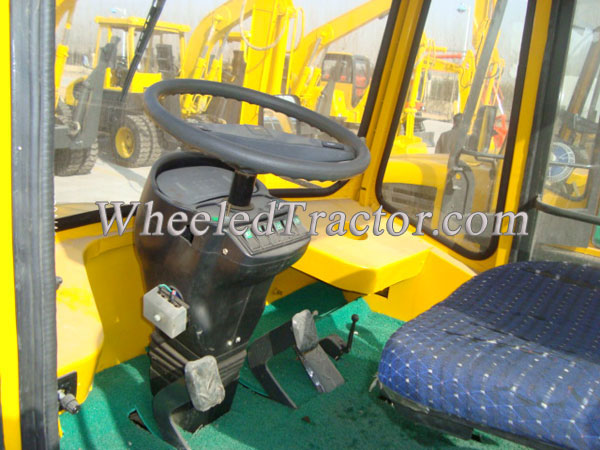

Grand operator cabin,with secure glass,is capacious and bright
Two hand levers to operate,convenient and labor saving.
Rotary Oil Tank,convenients to add oil.
Famous brand hydraulic components are adopoted ,of which the operating life is long ,the power is driving and the operating.
Front bulldozing plate ,convenient for cleaning the site.
Oil return filter is set in oil return pipeline to guarantee the cleanness of hydraulic oil.
Ascendant performance of complete appliance,with extraordinary operation efficeiency.
With which many kinds of optional components can matched to meet requirements of different users.Grand seat
Parameter:
| Max.Digging Depth | 3000mm |
| Max.Digging Height | 6300mm |
| Max.Digging Radius | 5500mm |
| Max.Digging Height | 4000mm |
| Engine Model | 4102 |
| Rated Power | 51kw |
| Total Weight | 4500kg |
| Bucket Capacity | 0.4m³ |
| Hydraulic System Working Pressure | 20MPa |
| Max.Flux | 63ml/r |
| Working Efficiency | 30-60m³/h |
| Working Tomes | 3-6time/min |
| Gradeability | 25% |
| Max.Hauling Force | 29kn |
| Walking Speed | ≤39km/h |
| Max.Swing Angle of Boom | 180° |
| Overall Dimension | 7000×2050×2600mm |
| Distance Between Axles | 2730mm |
| Min.Ground Clearance | 210mm |
Performance characteristics:
Working table controled by microcomputer ,water temperature,oil temperature,current,work timing are all in sight.
Grand operator cabin,with secure glass,is capacious and bright
Two hand levers to operate,convenient and labor saving.
Rotary Oil Tank,convenients to add oil.
Famous brand hydraulic components are adopoted ,of which the operating life is long ,the power is driving and the operating.
Front bulldozing plate ,convenient for cleaning the site.
Oil return filter is set in oil return pipeline to guarantee the cleanness of hydraulic oil.
Ascendant performance of complete appliance,with extraordinary operation efficeiency.
With which many kinds of optional components can matched to meet requirements of different users.Grand seat
