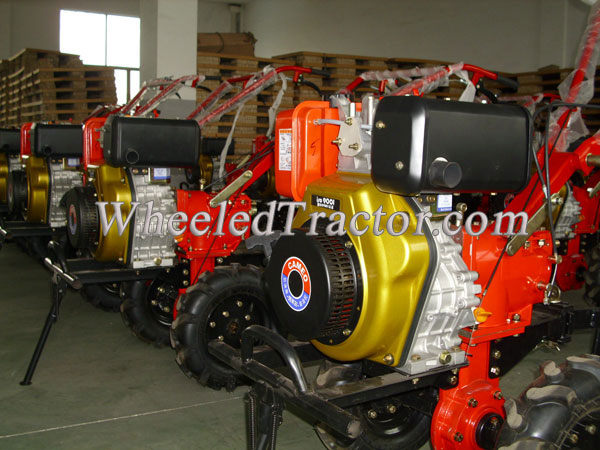

105 Tiller
Cheapest Chinese Diesel/Gasoline Power Tiller/Cultivator for Agriculture Machine recoil start, 32 pcs of blades without side disc, 4.00-10 wheel,.implements of tillers: grass cutter,seeder,rotavator,single plough,etc
online service
operation Continuous Operation
|
Tiller |
Type | 1WG4-105 (with 178F diesel engine) |
| Overall dimension (mm) | 1600×590×970 | |
| Tiller width (cm) | 105 | |
| Tiller depth (cm) | 10-30 | |
| Shifting | -1,0,1,2 | |
|
Engine |
Model | 178F |
| Bore×Stroke (mm) | 78×62 | |
| Displacement (l) | 0.296 | |
| Max power (kw/rpm) | 4.4/3600 | |
| Type | single-cylinder, 4-stroke, air-cooled, direct injection | |
| Start mode | Recoil | |
|
Packing |
Overall dimension (mm) | 1030×530×770 |
| N,W / G.W (kg) | 122/135 | |
| 40HQ (set) | 132/200-5 |
|
Dimension(mm)L*W*H |
1600×570×900 mm |
|
||
|
Weight (kg) |
95 |
|
||
|
Engine: air-cooled diesel engine single –cylinder,4-stoke, direct-injection |
168F 2.94KW/4hp 2600r/min; max power 5.5HP |
|
||
|
speed km/h |
Forward shift |
high |
9.4 |
|
|
low |
4.5 |
|
||
|
Reverse shift |
high |
6.8 |
|
|
|
low |
3.2 |
|
||
|
Tilling depth |
5—25cm |
|||
|
Tilling width |
40—90cm |
|||
|
Clutch model |
Belt tensioning pulley /Friction clutch |
|||
|
Handle rotating |
360O rotation at 12 position |
|||
|
Handle height adjustment |
4-6 section height adjustment |
|||
|
Main drive |
V-belt |
|||
|
Speed control |
gear |
|||
|
Start mode |
Handle spring starter |
|||
|
|
|
|||
|
No of cutters |
24 sets |
|||
|
Type model |
400-7/8 |
|||
|
No of wheel |
2 |
|||
|
Packing Quantity |
100SETS /1X20FT; |
|||
|
Note: machine equipped with parts
|
one set of Workbag Two wheels one couple of Murder board cultivator cutter(24pcs) colors available: green, blue, orange ,red one copy of instruction |
|||
