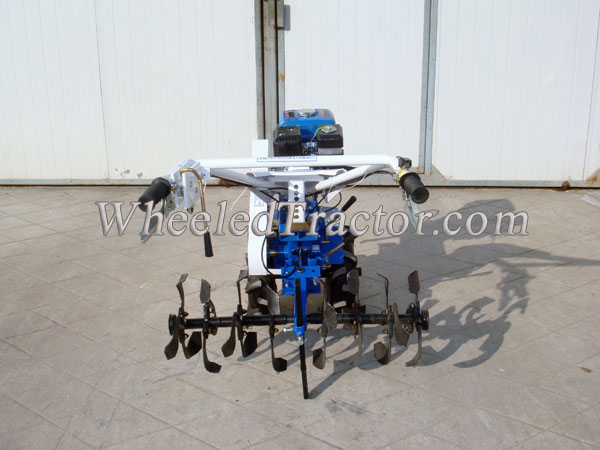

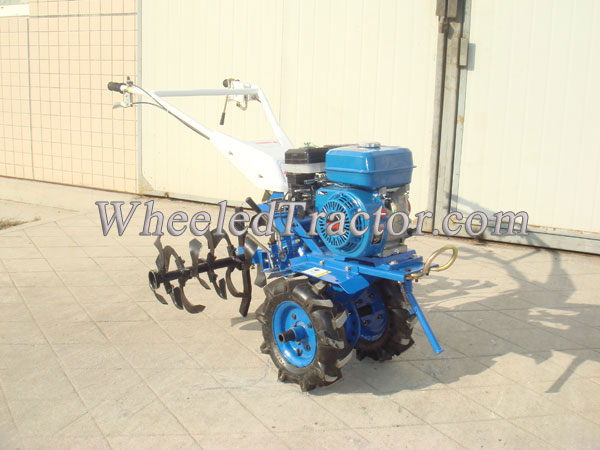

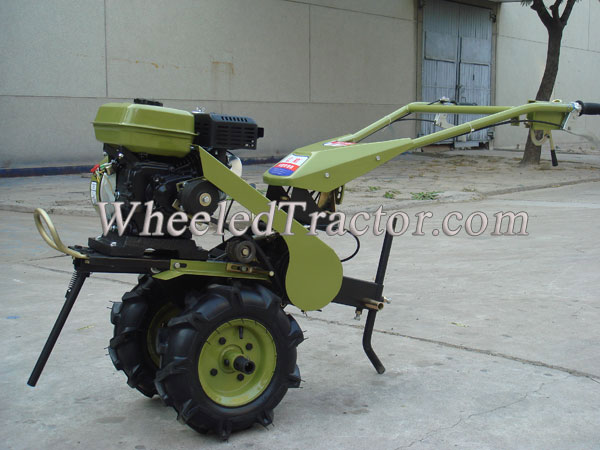

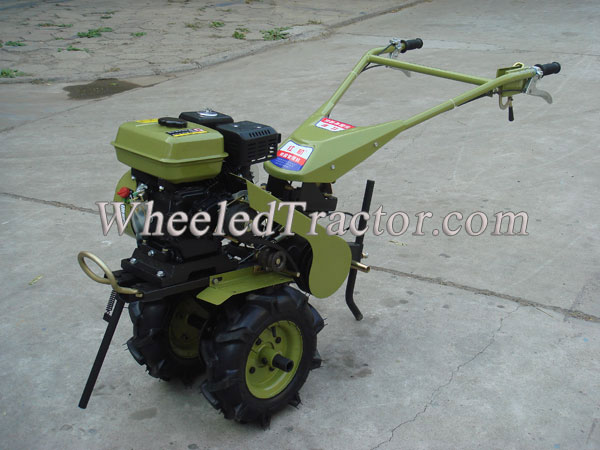

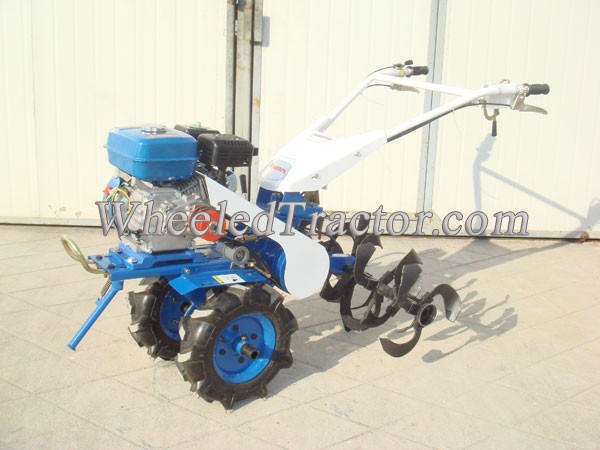

90 Tiller
90 Tiller, 168FA Gasoline Tiller, Mini Rotary Tiller,multi-function 6HP diesel tiller/farm machine/agricultural equipment
online service
The following are paramters.we can supply farm power mini tiller cultivator : 1WG4 for 168FA,170F,176,175 or 178FS engines. gasoline tiller mini cultivator
| Name | Power tiller cultivator | |||
| Model | 1WG4-168FA | |||
| Dimension(mm)L*W*H | 1600×570×900 mm | |||
| Tilling depth | 5—25 cm | |||
| Tilling width | 40—90 cm | |||
| Weight(kg) | 95 kg | |||
| Clutch model | Belt tensioning pulley /Friction clutch | |||
| Main drive | V-belt | |||
| Speed control | gear | |||
| Start mode | Handle spring starter | |||
|
speed (km/h) |
Forward shift | high | 9.4 | |
| low | 4.5 | |||
| Reverse shift | high | 6.8 | ||
| low | 3.2 | |||
| Handle rotating | 360° rotation at 12 position | |||
| Handle height adjustment | 6 section height adjustment | |||
| No of cutters | 24pcs | |||
| Tyre model | 400-7 | |||
| No of wheel | 2 | |||
| Packing Quantity | 252SETS /1X40FT; | |||
| Engine: | 168FA air-cooled gasoline engine ;4KW/5.5HP; Max power 6.5HP; 1800r/min; | |||
|
|
1WG-4-105(Diesel) | 1WG-4-105A(gasoline) | |
| Tiller | Transmission | Gear driving | |
| Clutch | Wet friction plate | ||
| Gear Shifting | 2 forward + 1 reverse (-1,0,1,2,3) | ||
| Tilling Depth(mm) | 100-300 | ||
| Tilling Width(mm) | 1050 | 1050 | |
| Rotary blade | 32pcs | ||
| Tyre size | 400-8 R1 | ||
| Productivity(hm2/h) | ≥0.06 | ||
| Net Weight(kg) | 122 105 | ||
| Dimension(mm) | 1800×1350×850 | ||
| Engine | Engine Model | 178F Diesel engine | 168F/170F Gasoline engine |
| Engine Type | single cylinder, vertical 4-stroke, air-cooled | ||
| Bore x stroke(mm) | 68x54 | 68x54 | |
| Fuel Tank Capacity(L) | 5.5 | 3.5 | |
| Displacement(ML) | 296 | 196 | |
| Max. Power HP(kw)/rpm | 6(4.4)/3600 | 6.5(4.8)/3600 | |
| Starting | Recoil or Electric start(Optional ) | ||
| Delivery | Qty/20’ GP | 66 sets | |
| Payment | T/T or L/C at sight | ||
| Min. order | 1×20ft container | ||
| Delivery time | 25 days | ||
