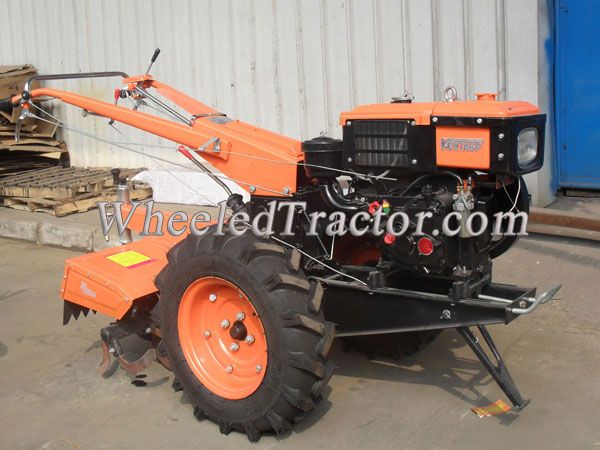

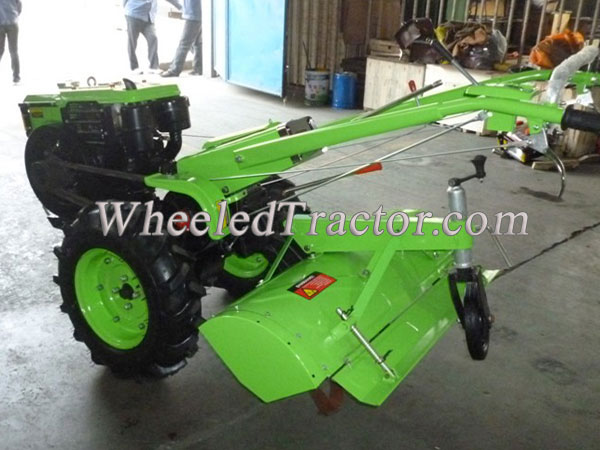

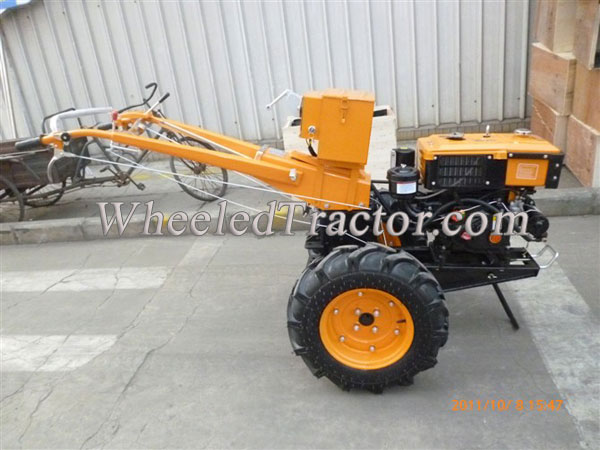

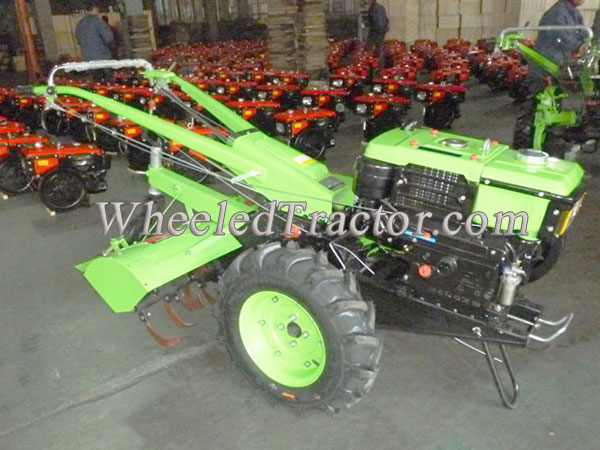

12HP Walking Tractor
12HP Walking Tractor We can produce from 8HP to 18HP walking hand tractors. The walking tractor 10hp are popular now. The power tiller can attach many kinds of implements Single share Plough, double share plough, rotary tiller, etc.
online service
We can produce from 8HP to 18HP walking hand tractors.
The walking tractor 10hp are popular now.

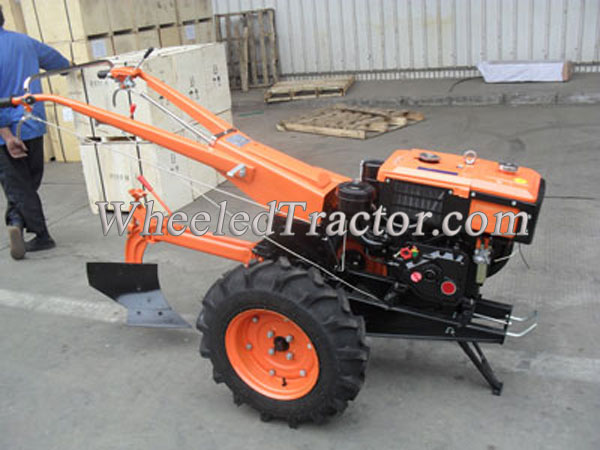

The power tiller can attach many kinds of implements Single share Plough, double share plough, rotary tiller, etc.
The walking tractor 10hp are popular now.
The power tiller can attach many kinds of implements Single share Plough, double share plough, rotary tiller, etc.
| Model | SH121 | SH151 | ||
| Overall dimensions (lxwxh)mm | 2680x960x1250 | 2680x960x1250 | ||
| Wheel track (mm) | 800 740 640 500 | 800 740 640 500 | ||
| Ground clearance (mm) | 210 | 210 | ||
| Tyres | 6.00-12 | 6.00-12 | ||
| Construction weight (kgs) | 375 | 505 | ||
|
Speed (km/h) |
Forward |
1.54,2.75,4.51 5.83,10.34,16.83 |
1.54,2.75,4.51 5.83,10.34,16.83 |
|
| Reverse | 1.20,4.18 | 1.20,4.18 | ||
|
Rotary Tiller speed (rpm) |
High | 275 | 275 | |
| Low | 219 | 219 | ||
|
Diesel engine |
Model | 195 | 1100 | |
|
Type |
Singlecylinder,horizontal,4 stroke Water cooling Diesel |
Singlecylinder,horizontal,4 stroke Water cooling Diesel |
||
| Rated power kw(hp) | 8.82(12) | 11.03(15) | ||
| Rated speed (rpm) | 200 | 2300 | ||
| Net Weight (kgs) | 190 | 200 | ||
