10HP Walking Tractor

This walking tractor is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plough rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.

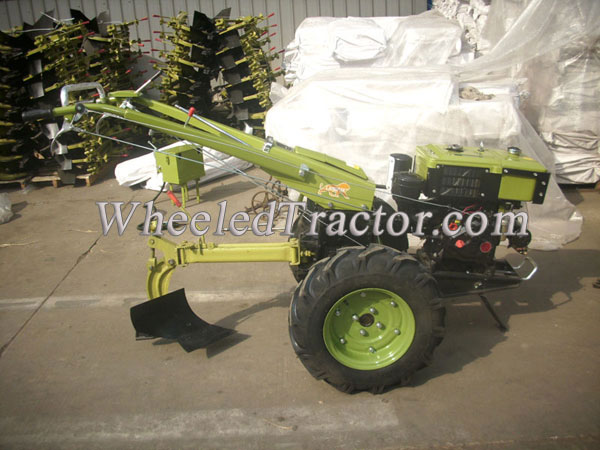

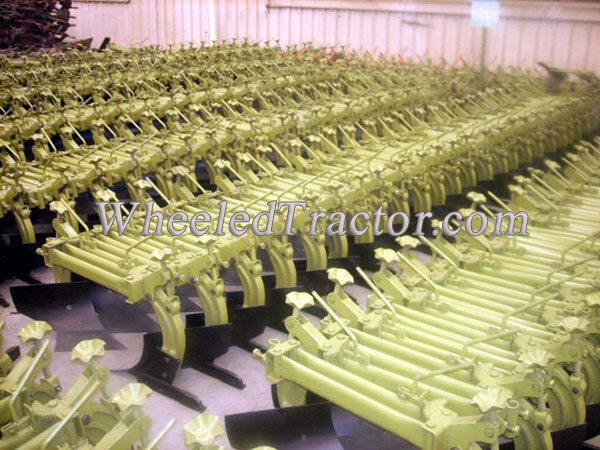

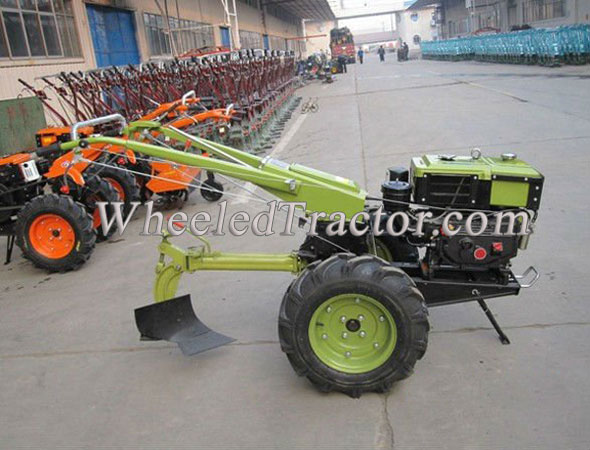

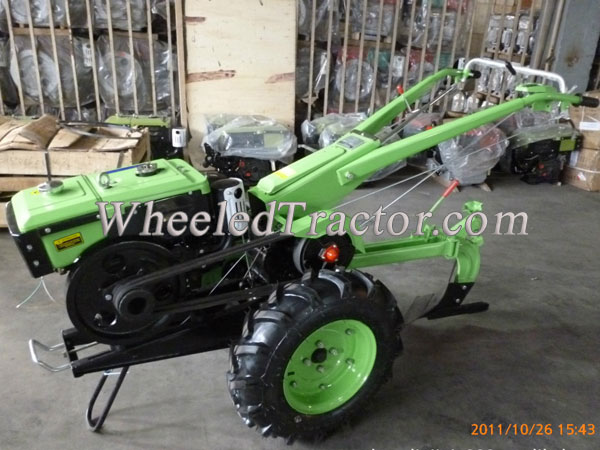

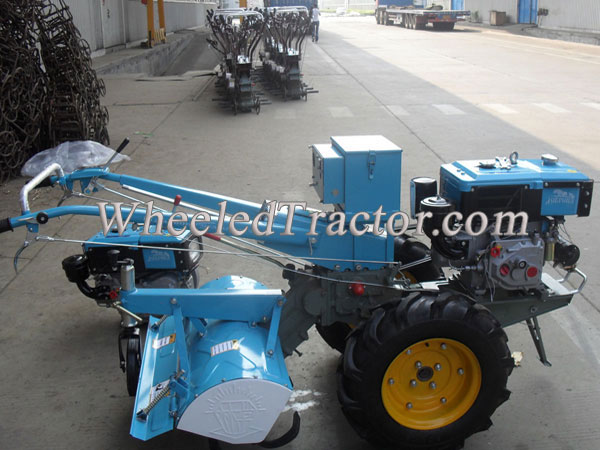

Single Share Plough, Double Share Plough, Rotary tiller

Model		Unit	SH101
Structure weight	Without rotavator	kg	270
	With rotavator		325
Overall dimensions (LxWxH)		mm	2180×910×1060
Number of blades		PCS	1
Rototilling width		mm	800
Type of tractor			Single axle, dual-purpose for both traction & drive
Travelling speed	Forword	Km/h	1.98, 3.08, 4.98, 8.04, 12.49, 20.2
	Reverse		1.53, 6.18
Type size			6.00-12
Wheel track		mm	680~740(adjustable)
Min. ground clearance		mm	210
Min. turning radius		m	0.71 (without rotavator)
Model of engine			185N
Type of engine			Horizontal 4-stroke
Bore x stroke		mm	85×90
Total displacement		L	0.511
Compression ratio			21:01
Turing speed of crankshaft		rpm	2300
1-hour rated output		KW/hp	7.0/9.5
12-hour rated output		KW/hp	5.88/8
Specific fuel consumption		g/kw.h	≤273.4
Specific lube oil consumption		g/kw.h	≤2.72
Cooling mode			Condenser (Radiator)
Main farm implements (optional)			Anti-skid steel wheel Model   Single-furrow plough Model 1LS-125  Turnover plough  Rotary tiller Model 80D-1  Sprinkler Model Swather/reaper Model 4GL-100  Trailer 7C-0.8 (Standard)
