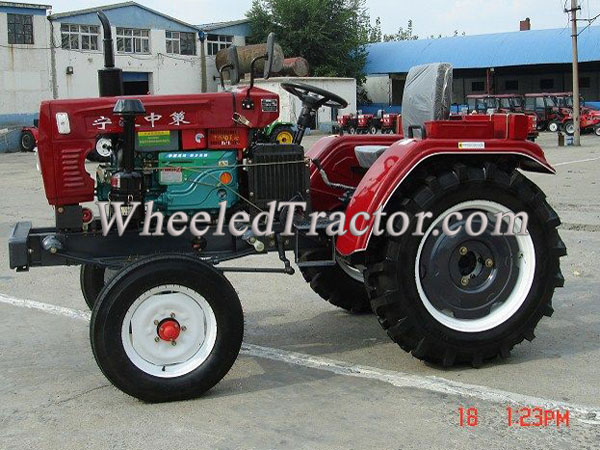

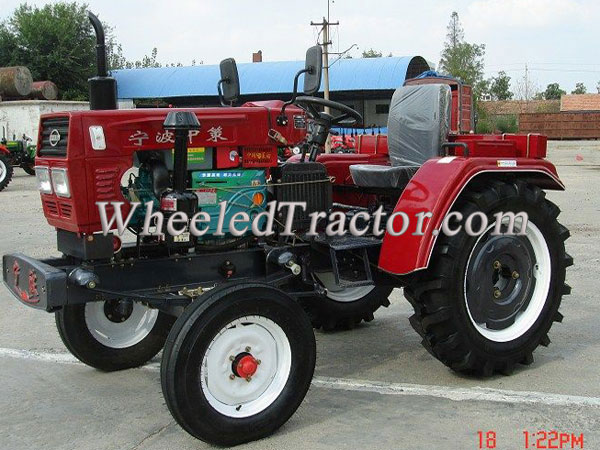

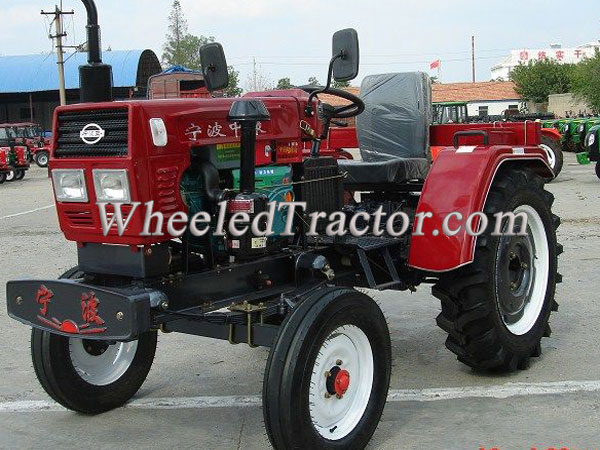

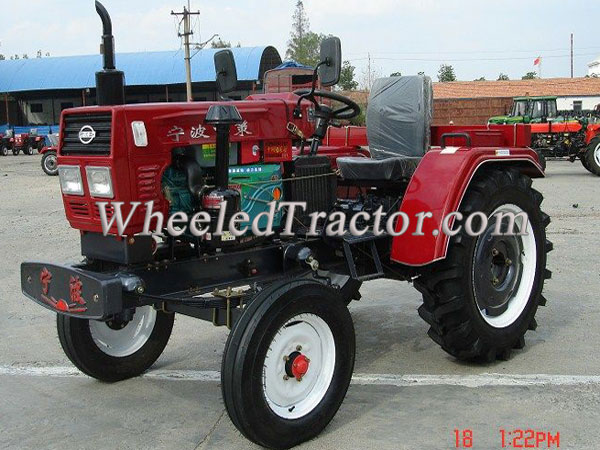

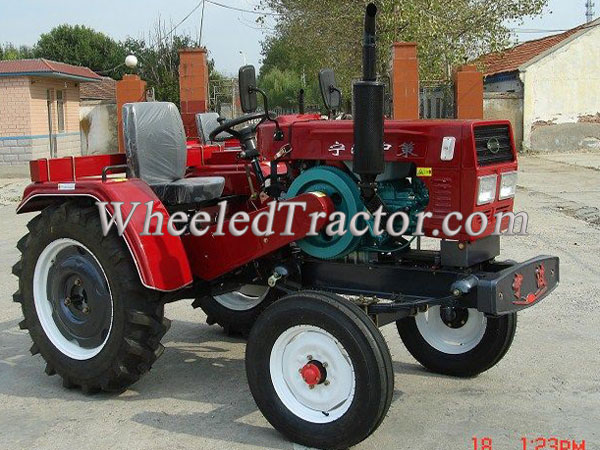

2WD Belt Tractor
2WD Belt Tractor Belt-Drive,8+2Shift,PTO540 170 180 200 220 240 260 280 Type 4X2,2WD Enginetype LD1105 LD1110 LD1115 KM130 KM138 LD28 KM160 Ratedpower(KW) 12.5 13.25 14.7 16.2 17.6 18.38 20.22 Basicconfiguration included (6+1)Gearbox Electricalstartin
online service
| Tractor model | 170 | 180 | 200 | 220 | 240 | 260 | 280 |
| Type | 4X2, 2WD | ||||||
| Engine type | LD1105 | LD1110 | LD1115 | KM130 | KM138 | LD28 | KM160 |
| Rated power(KW) | 12.5 | 13.25 | 14.7 | 16.2 | 17.6 | 18.38 | 20.22 |
|
Basic configuration included |
(6+1)Gearbox Electrical starting 4.00-12 Front tyre, 7.50-16 Rear tyre 1400mm Wheel base, 960mm Track, minimum ground clearance 295mm Front and back ballast Rear suspension device Ordinary steering Iron seat (soft cushion is needed to make it comfortable) 12# chassis |
||||||
| More details |
Main Dimensions(L*W*H):2630*1180*1765mm, Iron frame package size is 2280*1200*1200mm(L*W*H) Weight for one unit 800-900kg 10sets/20GP FCL, 20sets/40GP FCL (iron frame packed) |
||||||
